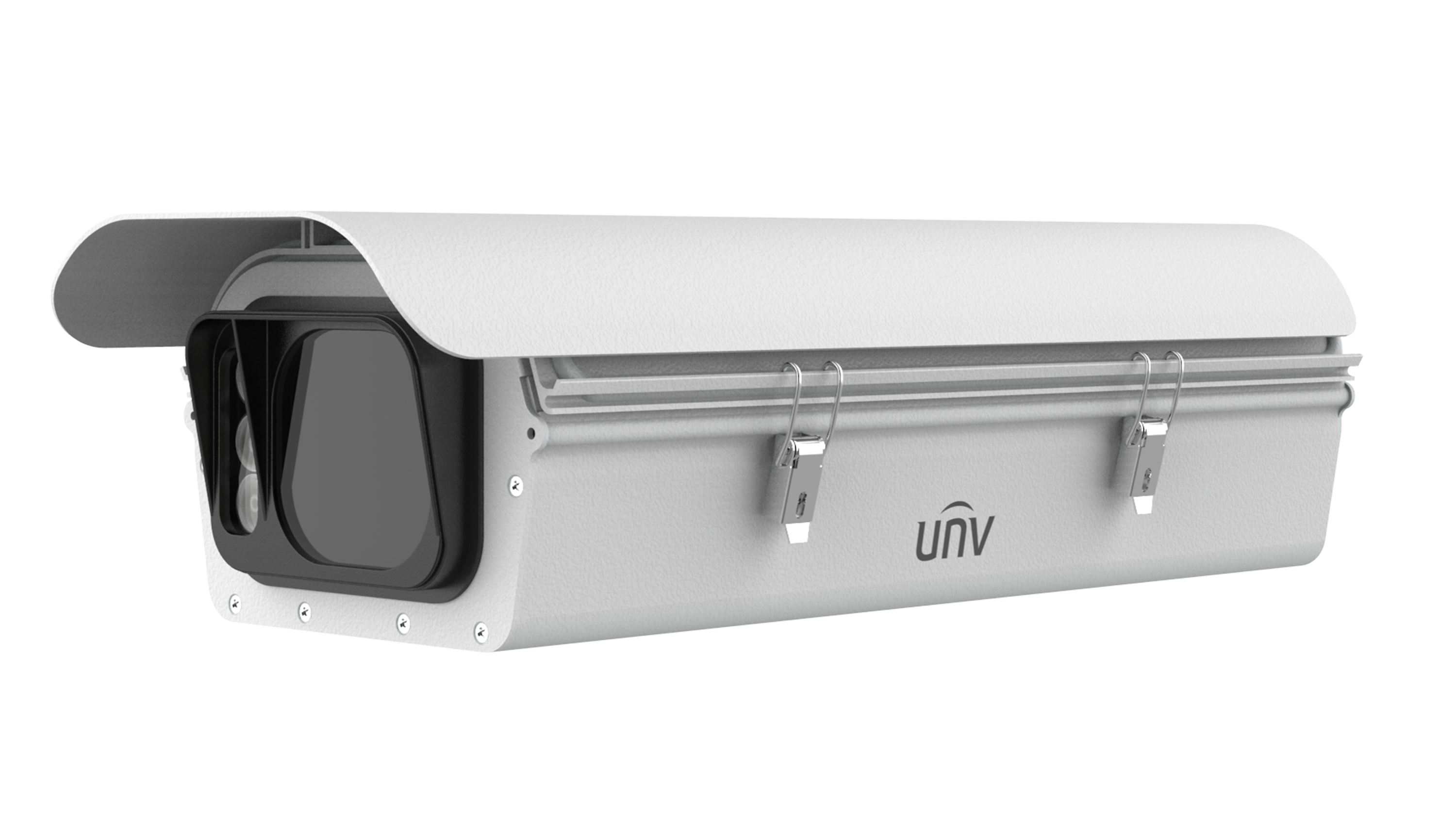

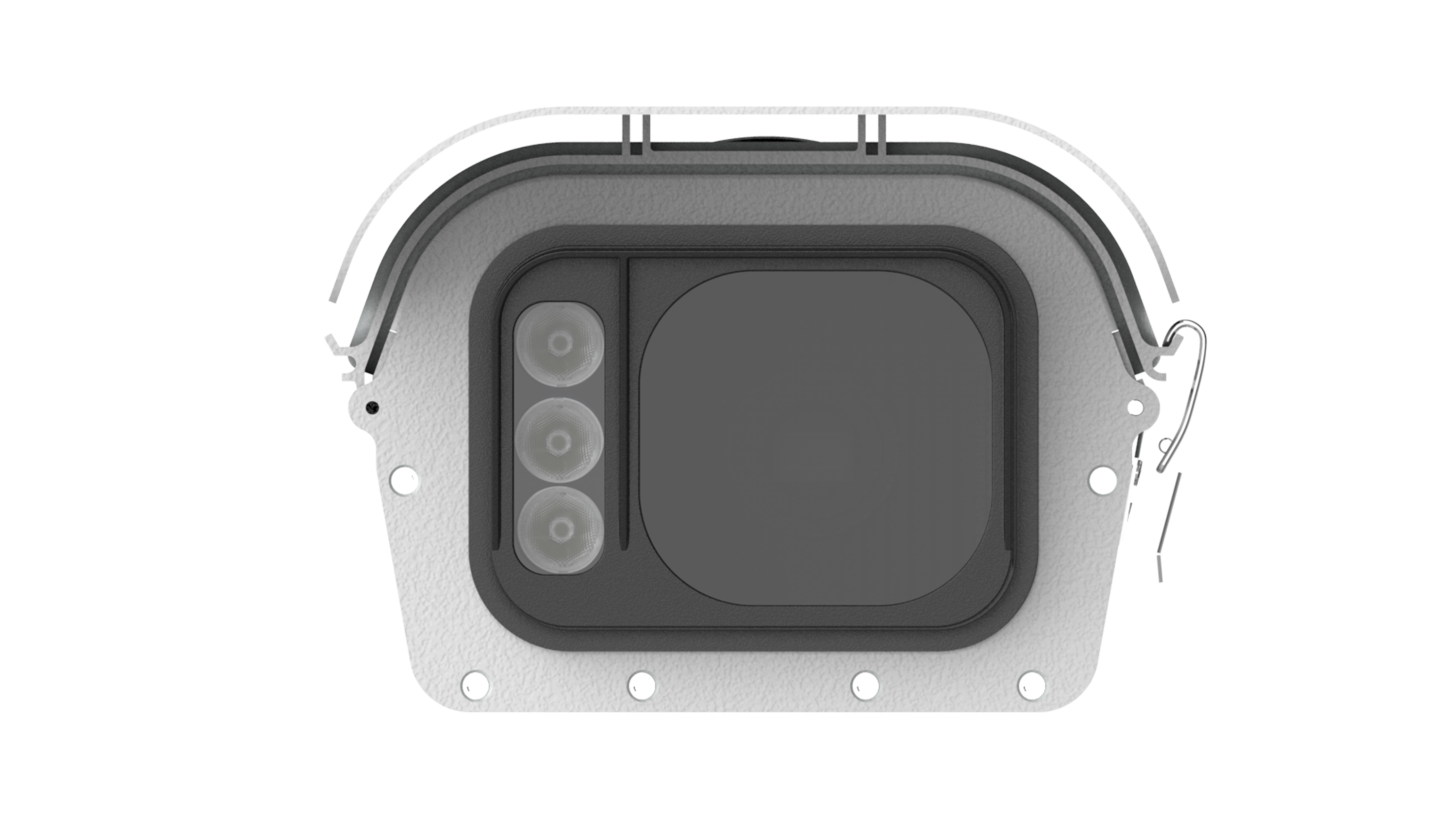

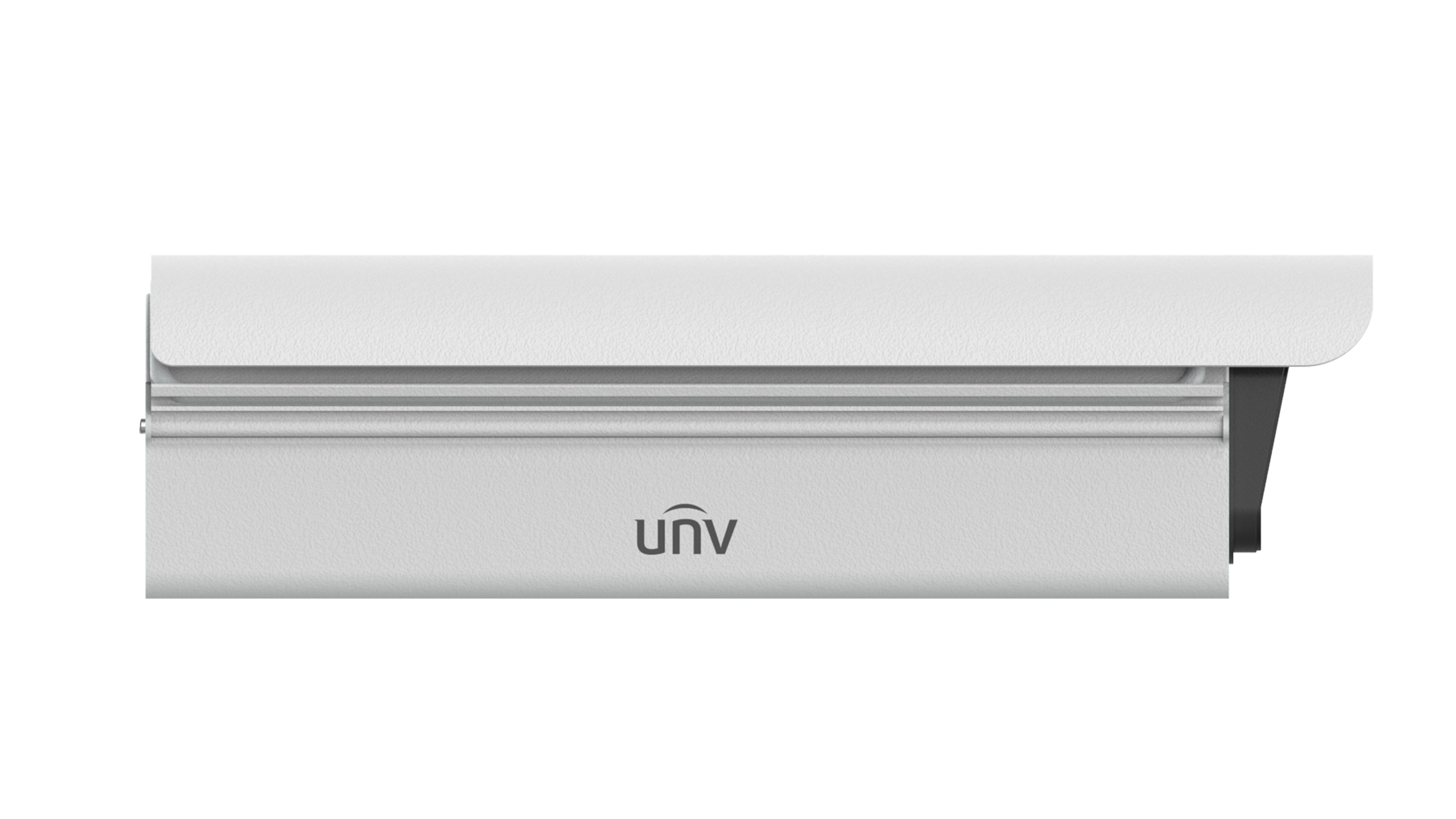

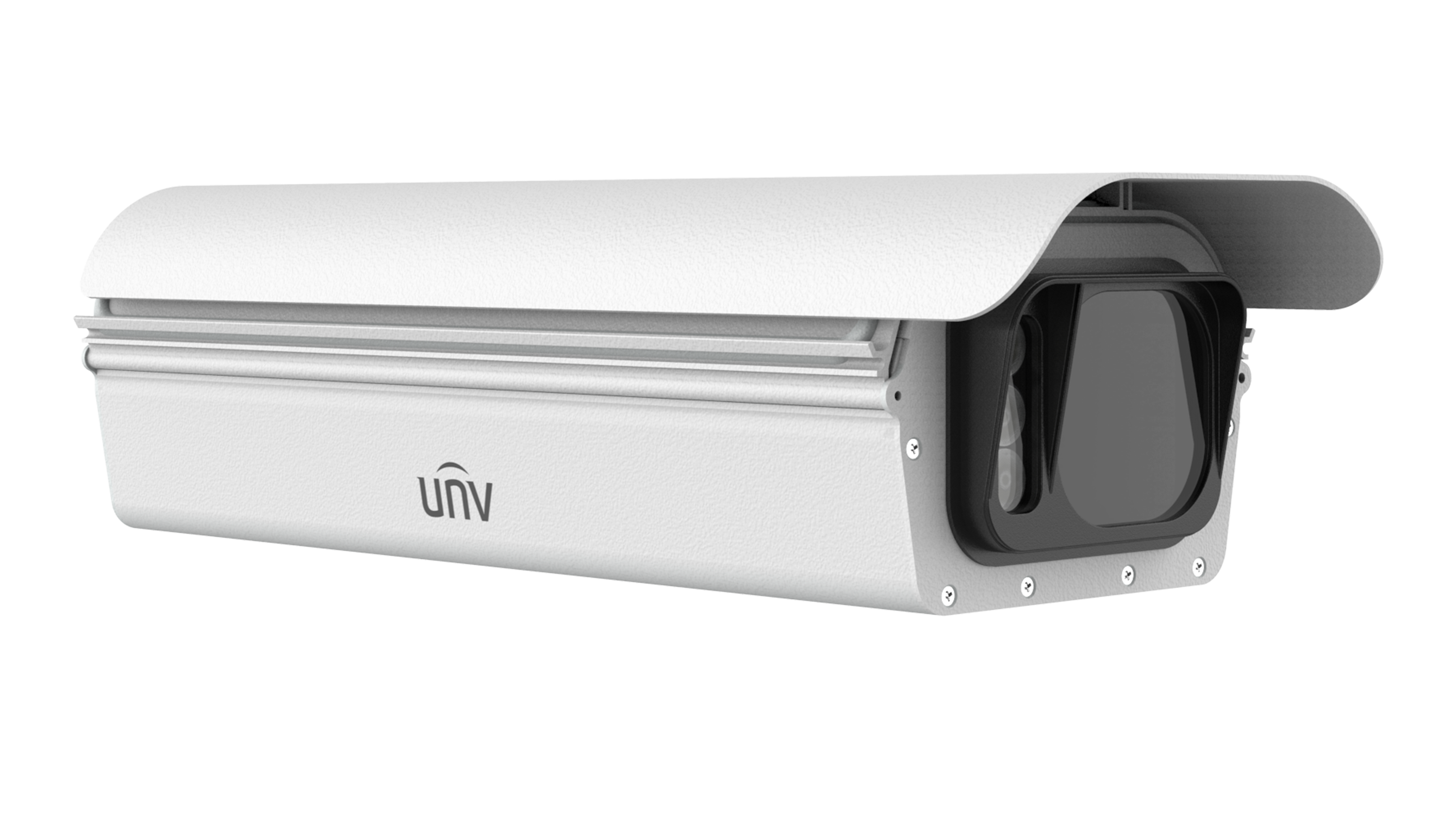

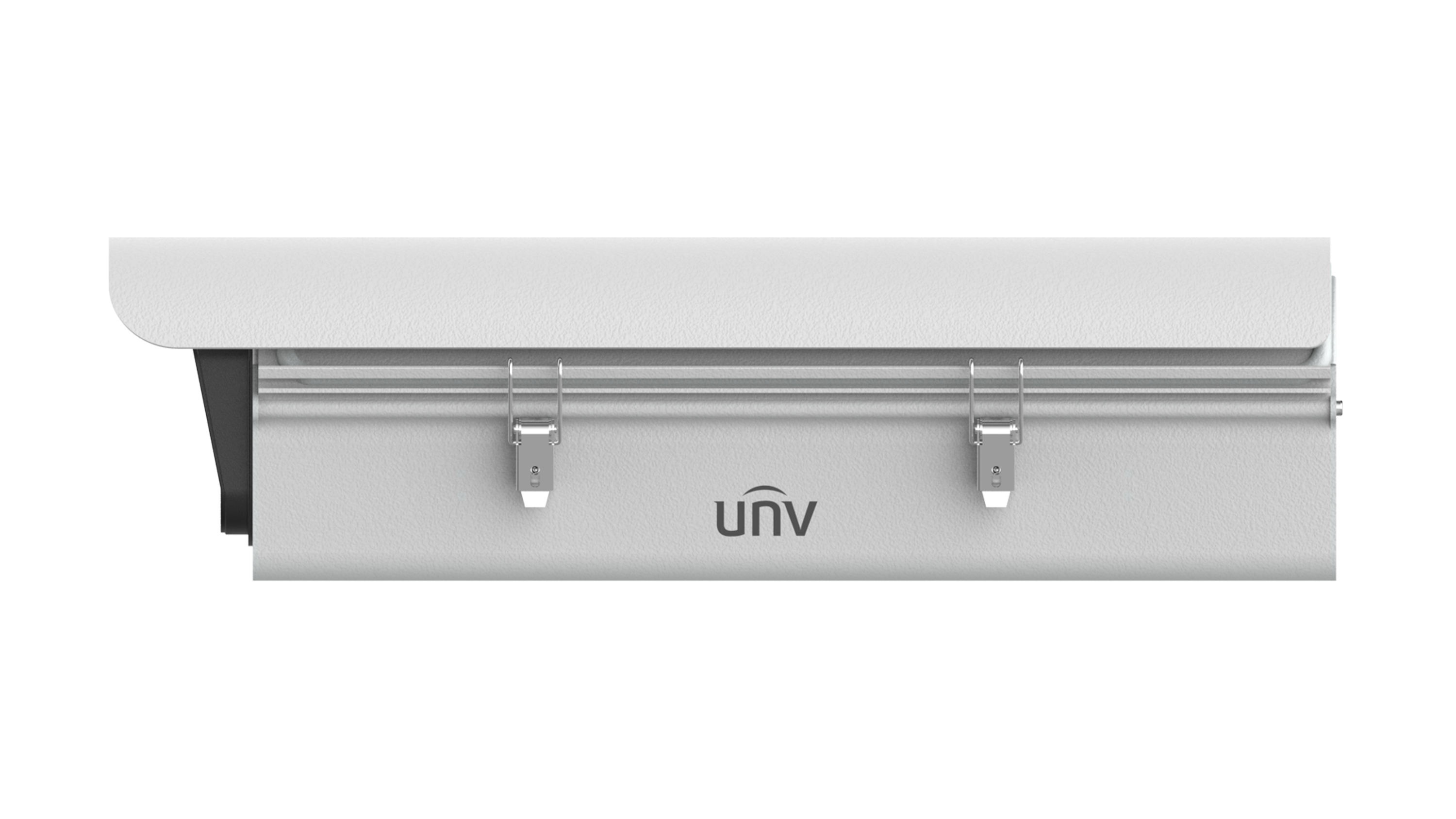

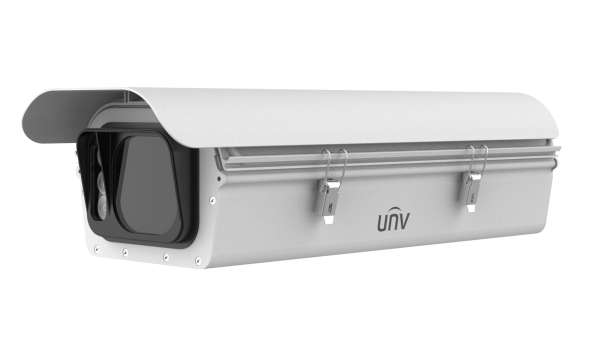

HC191@GHN-2C32S-OS | ||||||||
Camera | ||||||||
Sensor | 1.1’’ 9MP Global Shutter CMOS | |||||||
Min. illumination | 0.001 Lux | |||||||
Image settings | Shutter, gain, white balance, WDR | |||||||
Image/video | ||||||||
Acquisition format | 4096×2160@50fps | |||||||
Video compression | H.265, H.264, MJPEG | |||||||
Frame rate | Up to 50fps | |||||||
Image resolution | 4096×2160 | |||||||
Video resolution | Main stream: 4096×2160, 1920×1080, 1600×1200, 1280×720 Sub stream: 4096×2160, 1920×1080, 1600×1200, 1280×720, 720×576, 704×288, 352×288 Third stream: 720×576, 704×288, 352×288 | |||||||
Video OSD | Supports various overlays such as date and time with adjustable font size, font style, font color, etc. | |||||||
Image OSD | Supports various overlays with adjustable overlay position, overlay order, font size, font style, font color, etc. | |||||||
ROI | Supports up to 8 ROIs | |||||||
Functions | ||||||||
Vehicle detection mode | Radar, induction loop, video | |||||||

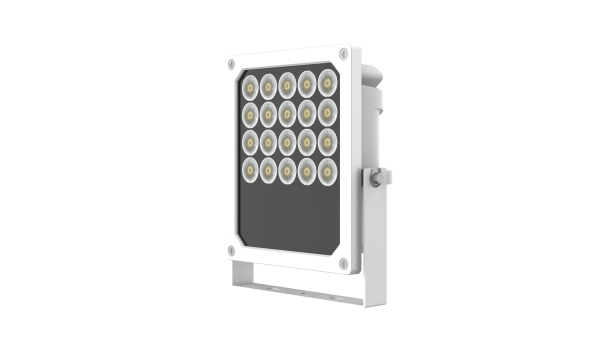

Illumination type | Built-in integrated strobe illuminator with adjustable brightness Optional external strobe illuminator or strobe and flash illuminator | |||||||
Image composition | Support | |||||||
Image size | Adjustable | |||||||
Smart-PL | Built-in | |||||||
Interface | ||||||||
I/O control | 4 × synchronous signal output interface (switch) 8 × synchronous signal output interface (TTL) 8 × signal input interface (switch) 2 × standard relay interface Control interface: 4 × RS485, 1 × RS232 | |||||||
Network | 2 × RJ45 10M/100M/1000M Base-T adaptive Ethernet interface | |||||||
Reset button | 1 | |||||||
Storage | ||||||||
Front-end storage | 32GB eMMC, supports up to 256G micro SD (TF) card expansion | |||||||
Automatic Network Replenishment (ANR) | Support | |||||||
General | ||||||||
Power supply | AC220V±25% | |||||||
Power consumption | Camera 12W, heating 12W, fan 1W, built-in LED 10W | |||||||
Dimensions | 530mm×211mm×149mm | |||||||
Weight | 5.96kg | |||||||
Operating environment | -40°C to 70°C, 10% to 90% RH (non-condensing) | |||||||
Lightning and surge protection | Support | |||||||
Ingress protection | IP66 | |||||||
Certification | ||||||||
EMC | CE LVD:IEC 62368-1:2014 | |||||||
Safety | CE EMC:EN 55032:2015+A11:2020+A1:2020 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 61000-3-2:2019+A1:2021 EN 50130-4:2011+A1:2014 | |||||||
LPR | ||||||||
Vehicle brand detection | Alfa Romeo,Aston Martin,Audi,Bentley,BMW,BYD,Chevrolet, Citroen,Ferrari,Fiat,Ford,Foton,Golden Dragon,Higer,Hino,Honda, Hyundai,Isuzu,Jaguar,Jeep,Kia,Land Rover,Lexus,Maserati,Maxus, Mazda,McLaren,Mercedes-Benz,MG,MINI,Mitsubishi,Nissan,Opel,ORA, Peugeot,Polestar,Porsche,Renault,Rolls-Royce,SEAT,SKODA,Smart, SsangYong,Subaru,Suzuki,Tesla,Toyota,Volkswagen,Volvo,Infinti,BAW,Dodge,DongFeng,FEIDIE,KingLong,Everus,Chery,SinoTruk,SAAB,Yutong,Proton,Chrysler,Daihatsu,Datsun,Geely,Hafei,Zotye,Man,Scion | |||||||
Supports multiple countries | North America: USA, Canada Northeast Europe: Slovenia, Poland, Czech Republic, Slovakia, Latvia, Belarus, Ukraine, EU: France, Spain, Portugal, Germany, United Kingdom, Ireland, Bulgaria, romania, Hungary, Luxembourg, Serbia, Bosnia and Herzegovina, Greece, Croatia, Middle East: Iraq, Saudi Arabia, UAE (Dubai) Southeast Asia: Singapore, Malaysia, Indonesia, Northeast Asia: South Korea, Africa: Egypt |
