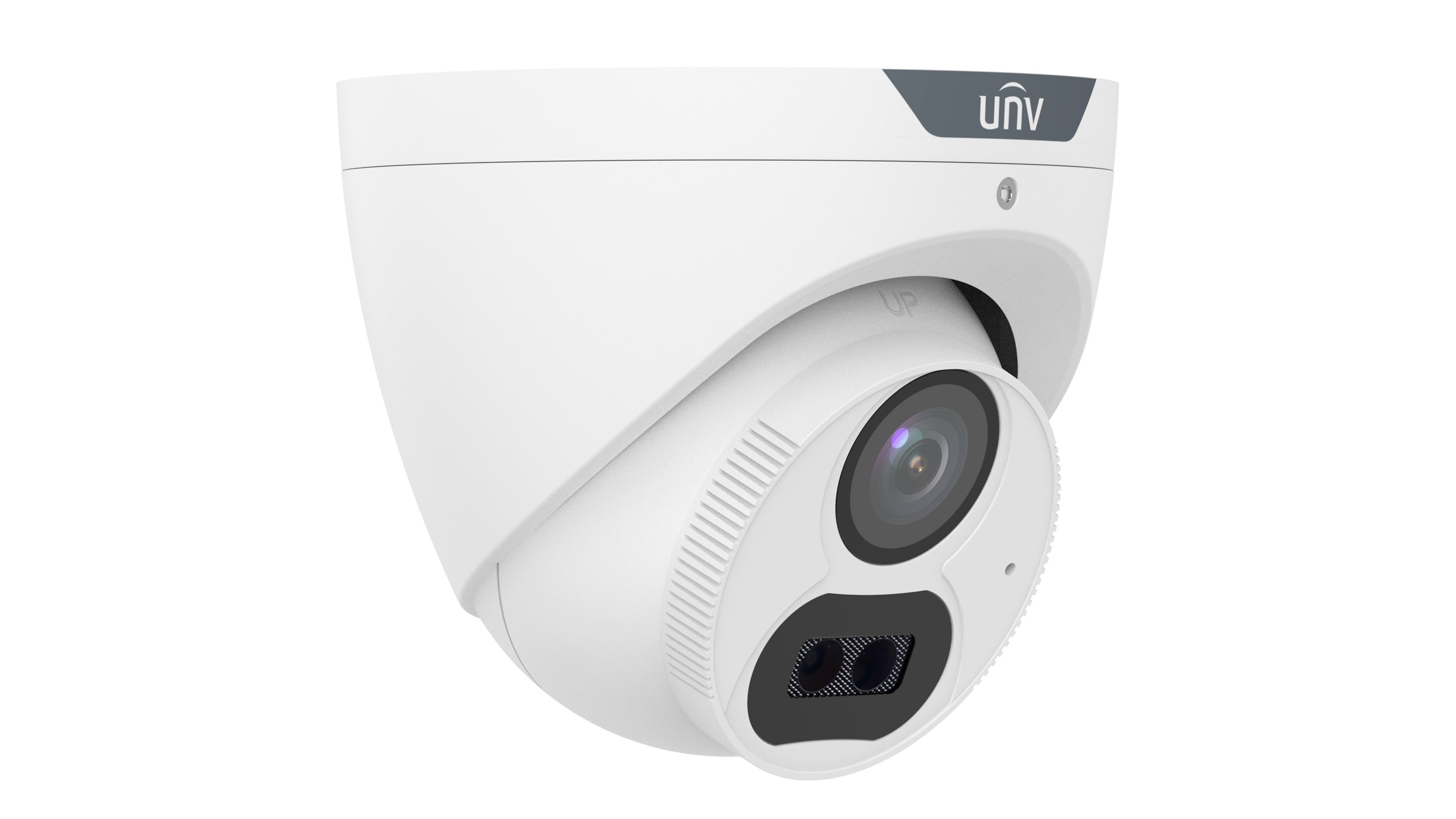

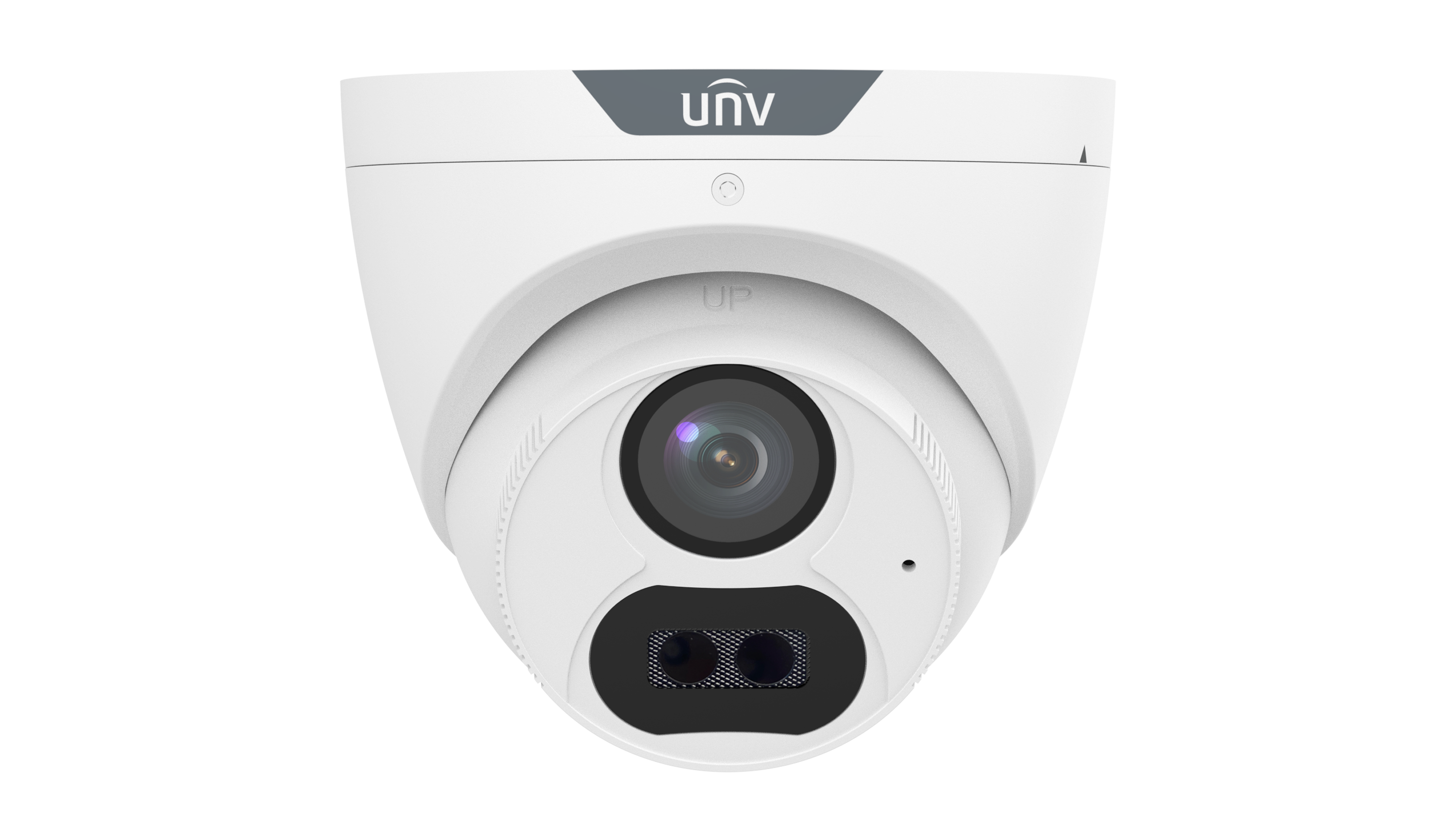

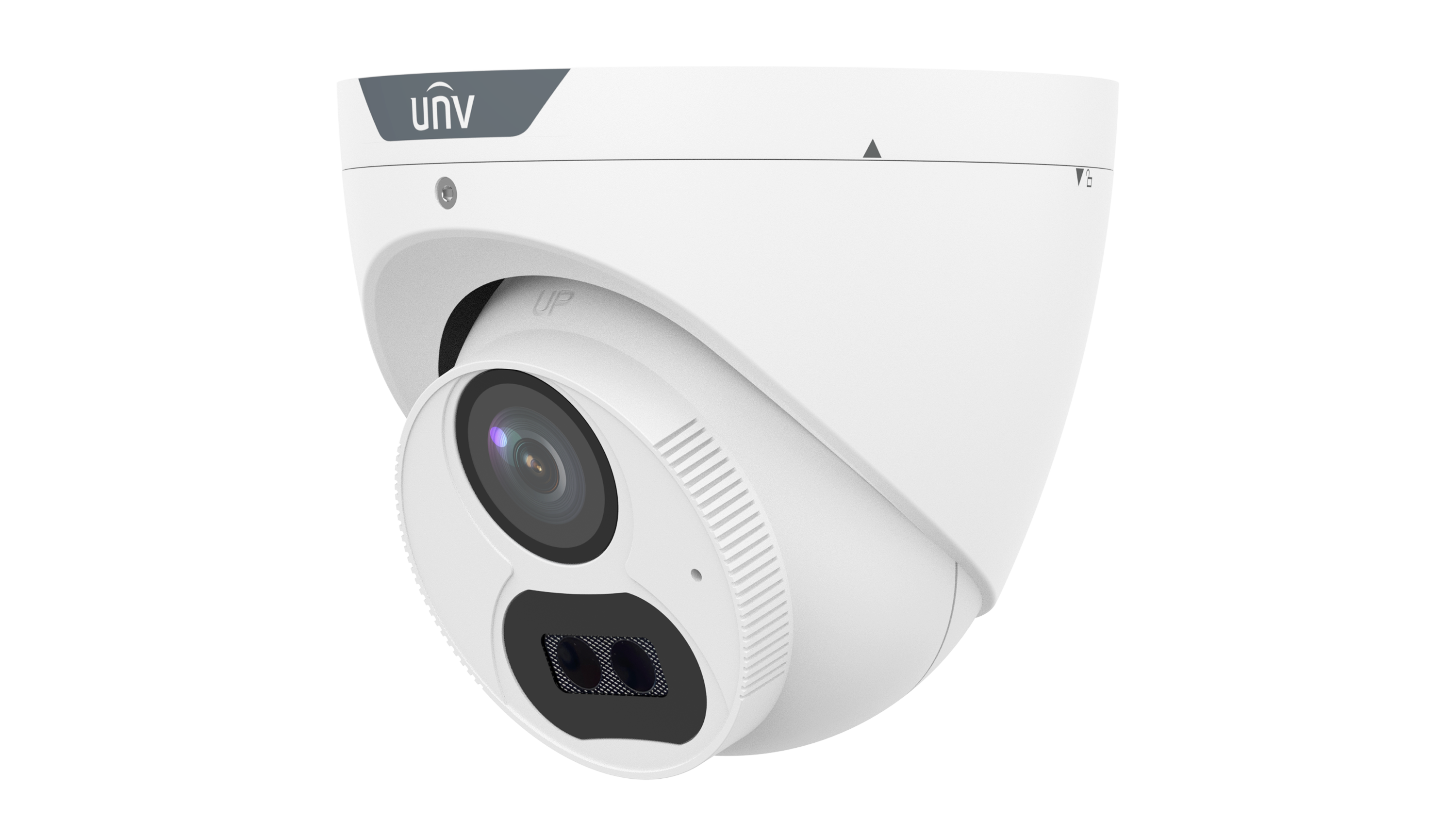

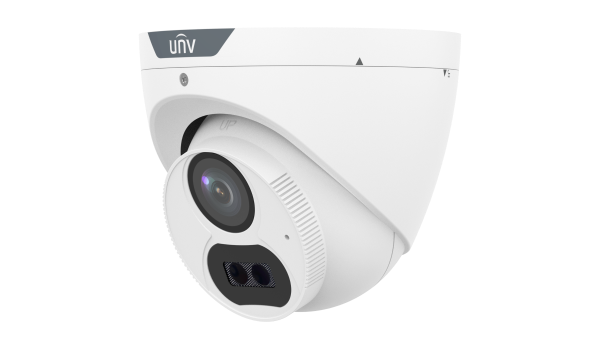

UAC-T128-ADF28MS | UAC-T128-ADF40MS | |||||||
Camera | ||||||||
Max Resolution | 8 MP | |||||||
Sensor Size | 1/2.7" CMOS | |||||||
Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) | |||||||
Lens | ||||||||
Focus | 2.8 mm | 4.0 mm | ||||||
Lens Mount | M12 | |||||||
Angle of View (H) | 109.1° | 86.8° | ||||||
Angle of View (V) | 61.0° | 49.4° | ||||||
Angle of View (D) | 126.7° | 99.9° | ||||||
Illuminator | ||||||||
Illuminator Number | Two IR illuminators | |||||||
Illumination Distance | 40m | |||||||
Lifetime | ≥ 60000 hours | |||||||
Video | ||||||||
Resolution | 4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V) | |||||||
Frame Rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC | |||||||
Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s | |||||||
Image | ||||||||
Exposure Mode | Four modes: Global (default), BLC, HLC, WDR | |||||||
Day/Night | Three modes: Auto (default), Day, Night | |||||||
Digital Noise Reduction | 2D/3D | |||||||
White Balance | Two modes: Auto (default), Manual | |||||||
WDR | 120 dB WDR | |||||||
Smart IR | Support | |||||||
Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
Digital Defog | N/A | |||||||
Audio | ||||||||
Built-in Mic | Support | |||||||
Camera Audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps | |||||||
Interface | ||||||||
Power Interface | 5.5 mm Power Interface | |||||||
Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
Operating Environment | ||||||||
Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |||||||
Humidity | ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4kV for power&4kV for video output interfaces | |||||||
General | ||||||||
Power | DC 12 V ± 25% | |||||||
Power Consumption | MAX 4.8W | |||||||

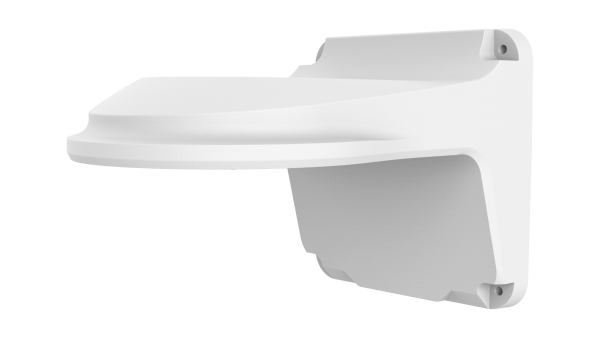

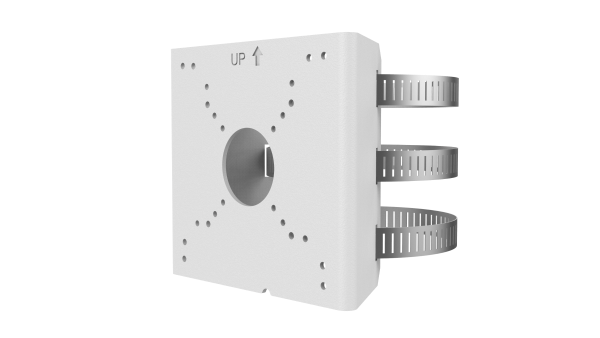

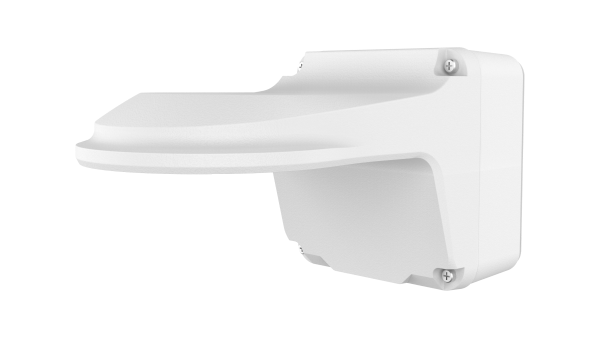

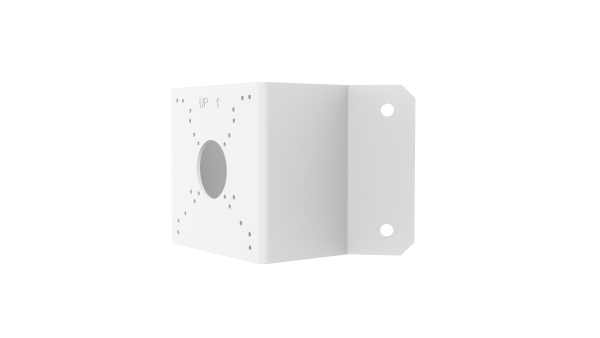

Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
Dimensions | Φ111mm*98mm (diameter*height) | |||||||
Material | Metal | |||||||
Weight | 417g(0.92lb) | |||||||
OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE-LVD (EN 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) |
