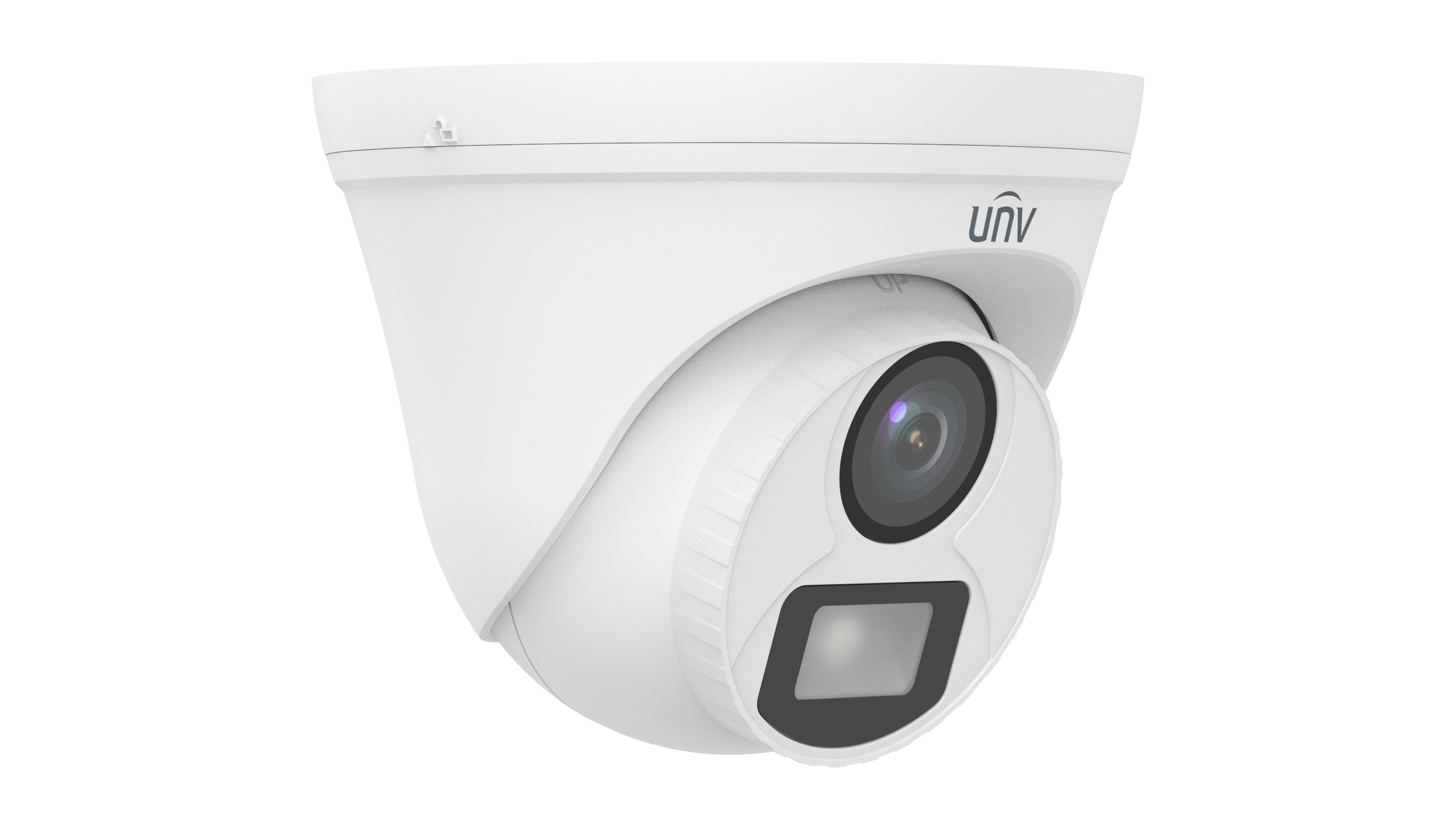

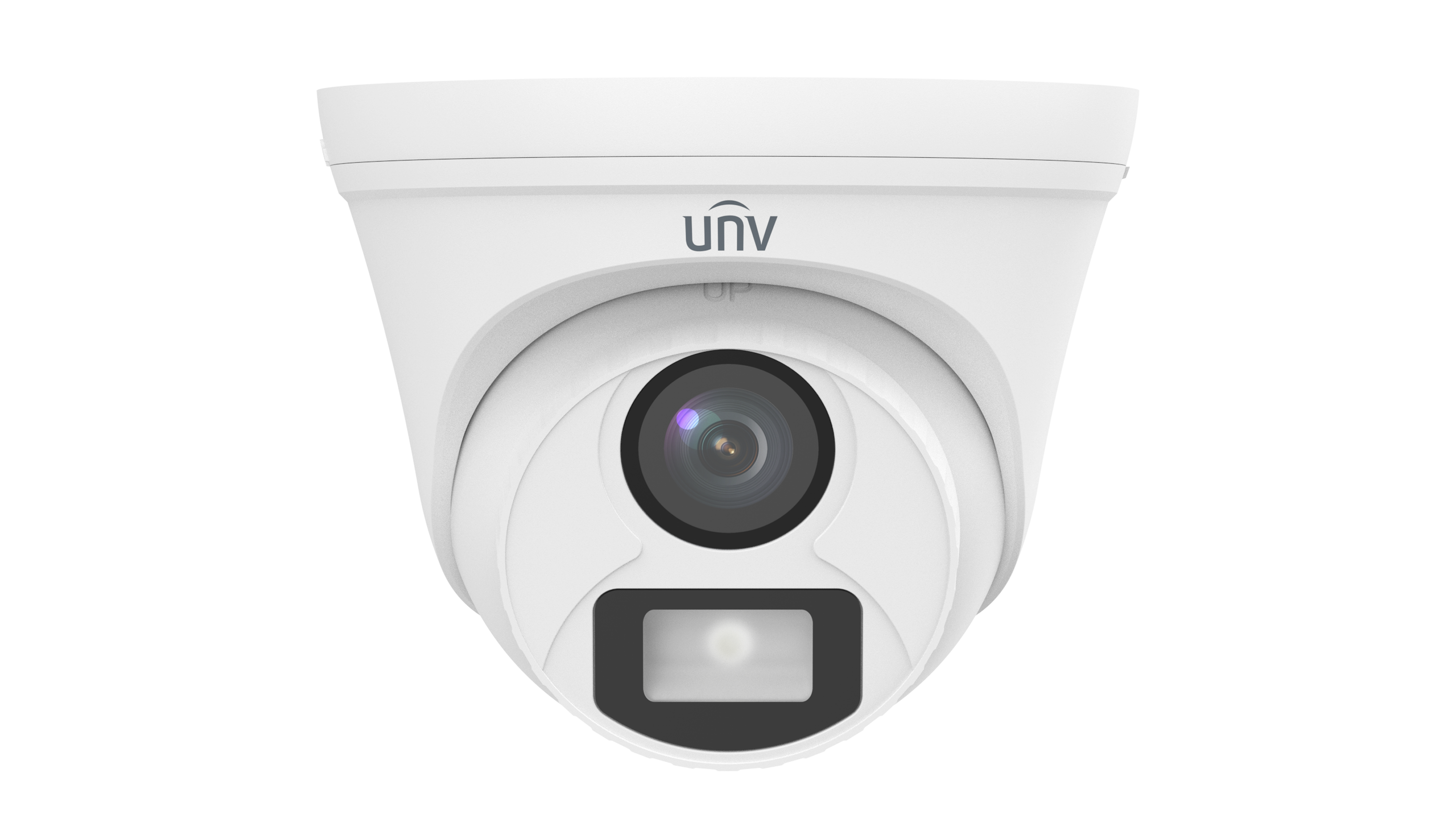

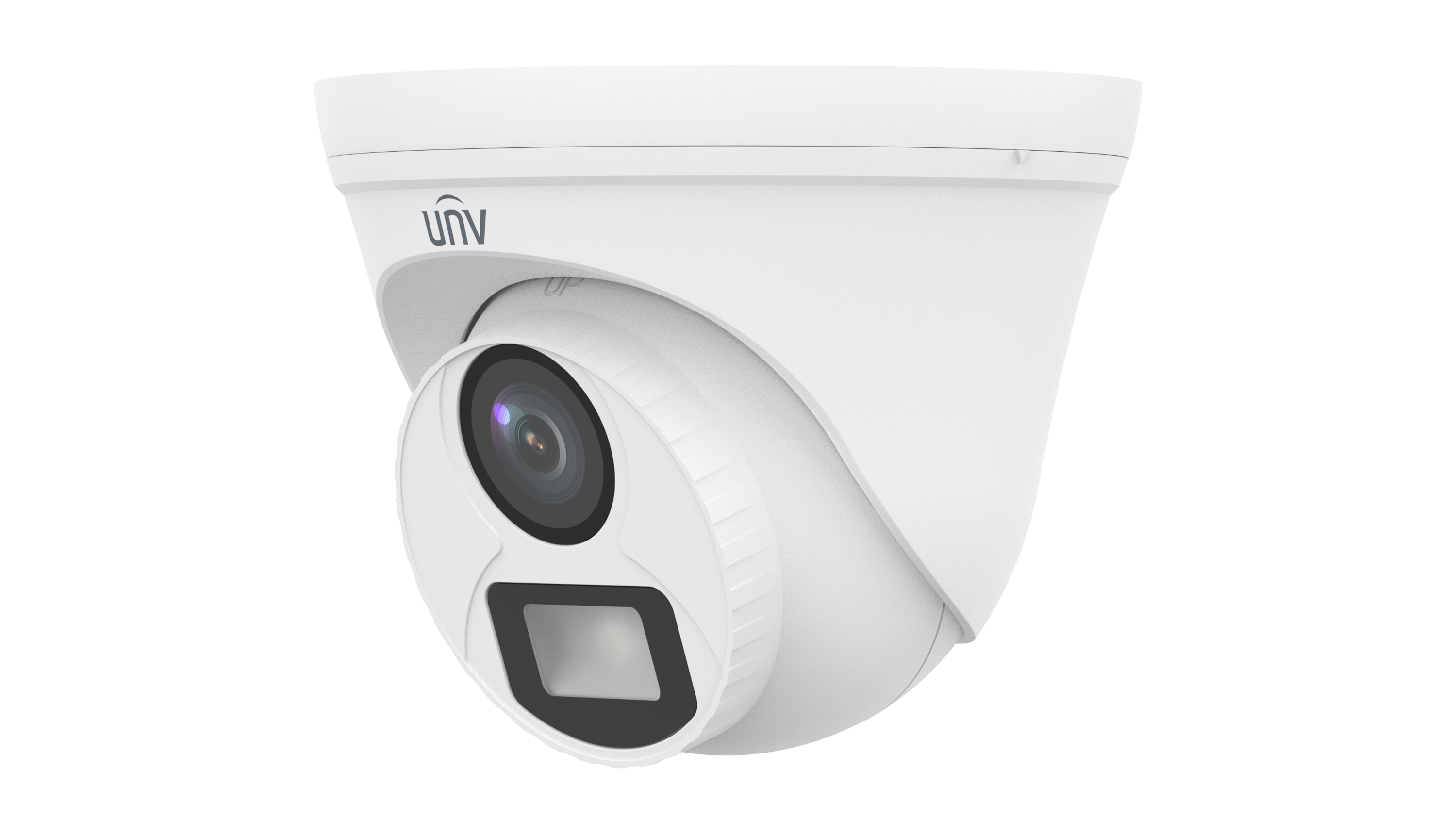

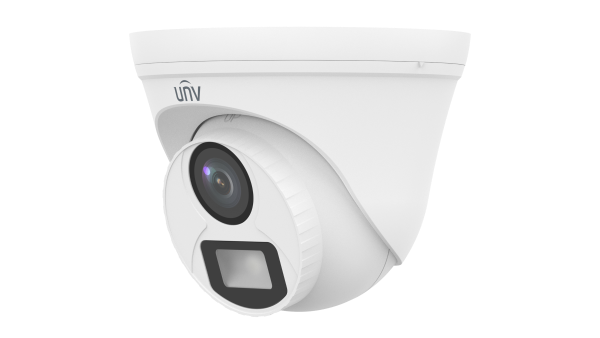

| UAC-T115-F28-W | UAC-T115-F40-W | |||||||
| Camera | ||||||||
| Max Resolution | 5 MP | |||||||
| Sensor Size | 1/2.7" CMOS | |||||||
| Min. Illumination | 0.01 lux (F1.6, AGC ON) 0 lux (white light on) | |||||||
| Lens | ||||||||
| Focus | 2.8 mm | 4.0 mm | ||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 110.0° | 90.0° | ||||||
| Angle of View (V) | 57.0° | 48.0° | ||||||
| Angle of View (D) | 130.0° | 109.1° | ||||||
| Illuminator | ||||||||
| Illuminator Number | One white-light illuminator | |||||||
| Illumination Distance | 20m | |||||||
| Lifetime | ≥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |||||||
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC | |||||||
| Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s | |||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
| Day/Night | 24/7 color images | |||||||
| Digital Noise Reduction | 2D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | DWDR | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |||||||
| Humidity | ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V ± 25% | |||||||
| Power Consumption | MAX 2.4W | |||||||

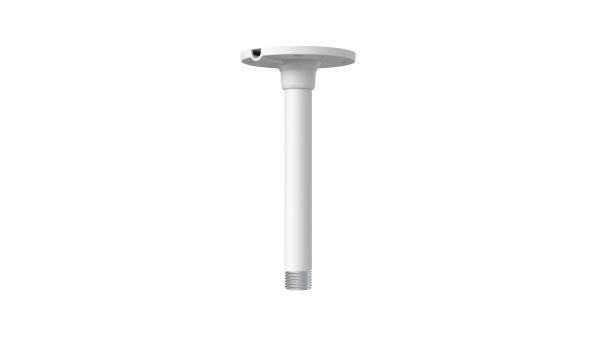

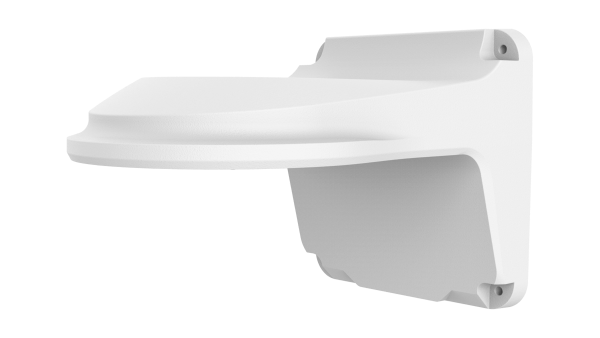

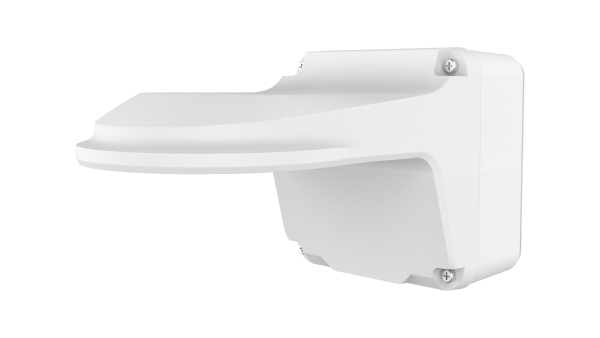

| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
| Dimensions | Φ118mm*96mm (diameter*height) | |||||||
| Material | Graphene + Plastic | |||||||
| Weight | 205g(0.452lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
