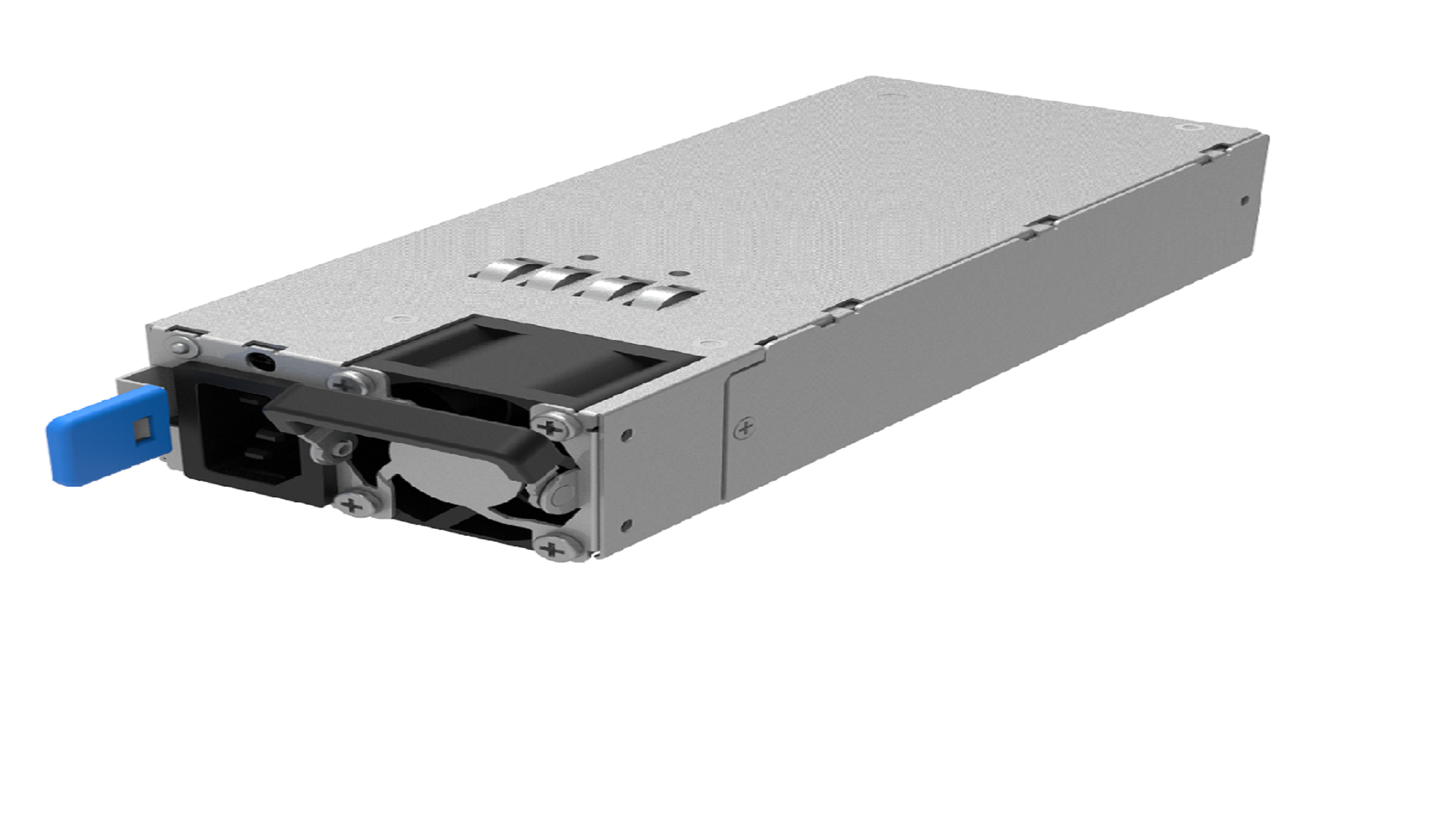

PWR-800A-AC-NB | ||||||||
Power | ||||||||
Indicator light | Output ON and OK : Green No AC power to all power supplies : OFF AC present/Only 12Vsb on (PS off) : 1Hz Blink Green (0.5s Off and 0.5s Green) Power supply warning events where the PSU continues to operate: AC/DC Voltage warning : 1Hz Blink Orange (0.5s Off and 0.5s Orange) AC cord unplugged or DC power lost; with a second power supply in parallels still with AC input power : Orange Power supply warning events where the PSU continues to operate: high temperature warning, Fan warning, Over current warning, OV warning : 1Hz Blink Orange (0.5s Off and 0.5s Orange) Power supply critical event causing a shutdown: UVP, OVP, OCP, OTP、Fan fault、short out : Orange When the power in cold redundant state : 1Hz Blink Green (0.5s Off and 0.5s Green) Power supply FW update mode : 2Hz Blink Green | |||||||
AC Input Voltage | 90-264VAC | |||||||
AC Input Frequency | 47 ~63 Hz | |||||||
AC Input current | 100-240V/10A,180-360V/10A | |||||||
Power Working Temperature | -5℃ ~ 70℃ | |||||||
Power Storage Temperature | -40℃ ~ 70℃ |
