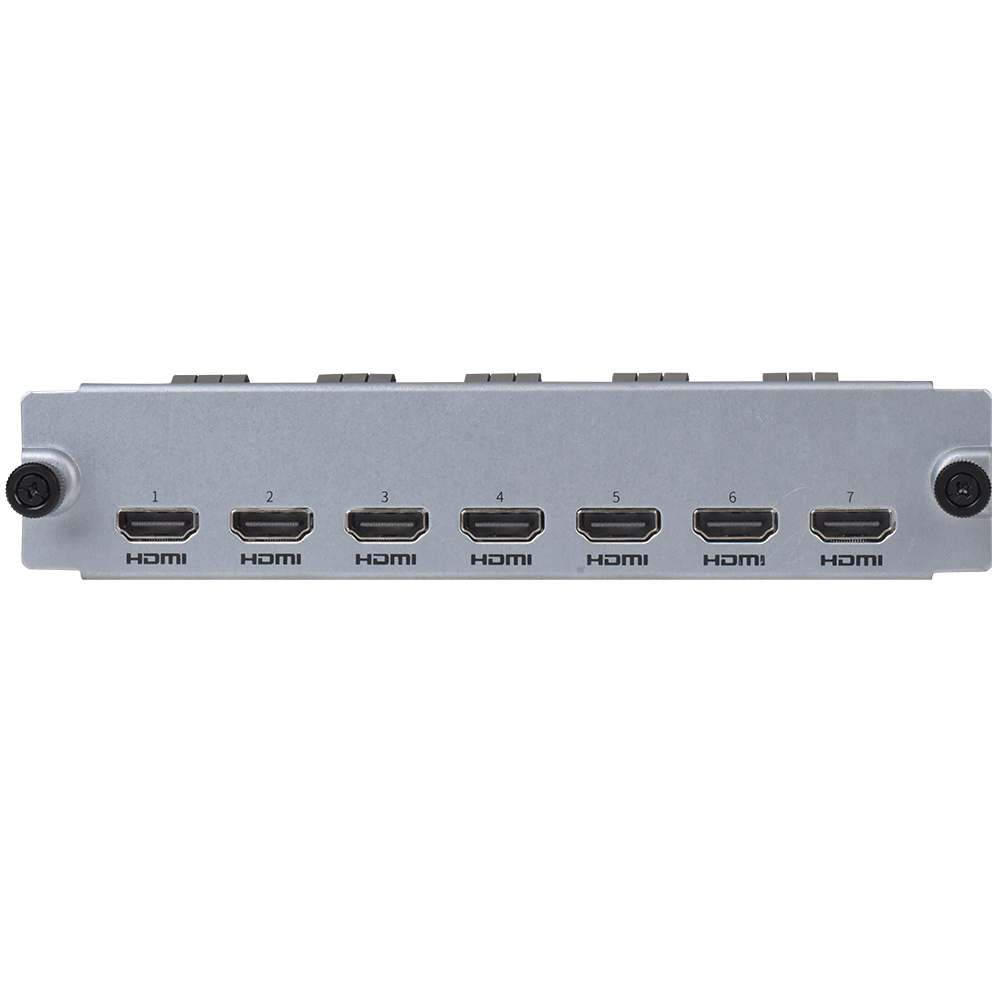

FB-HD07-B-NB
7-ch HDMI Output Decoding Card
• Support 7-ch HDMI
• HDMI at up to 4K (3840x2160) resolution
• All HDMI independent outputs provided
• Support H.265/H.264 video formats
• Up to 16 Megapixels resolution recording
Specification
Download
How to buy
 FB-HD07-B-NB
Video/Audio Output
HDMI OutputHDMI1 & HDMI2 & HDMI3 & HDMI4:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI5 & HDMI6 & HDMI7:
1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Decoding
Decoding CapabilityHDMI1 & HDMI3 & HDMI5 & HDMI7:
4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 112 x D1
HDMI2 & HDMI4 & HDMI6:
4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 112 x D1
Decoding
Multi-window1/4/5/6/7/8/9/16
Working Environment
Working Temperature-10°C ~ + 55°C (14°F to +131°F)
Working Humidity10% ~ 90% (non-condensing)
Weight
Weight<1 Kg (2.2 lb)
