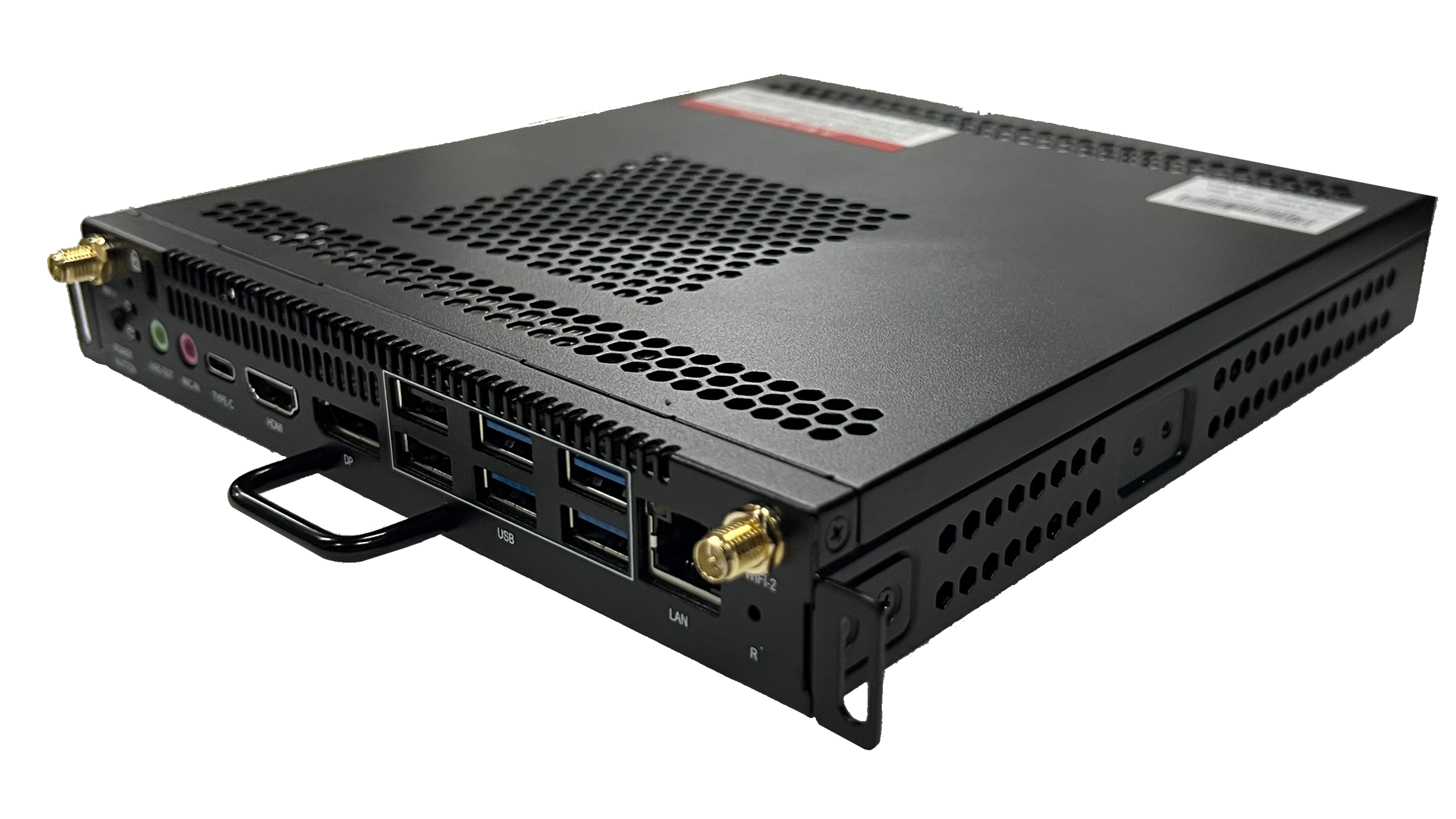

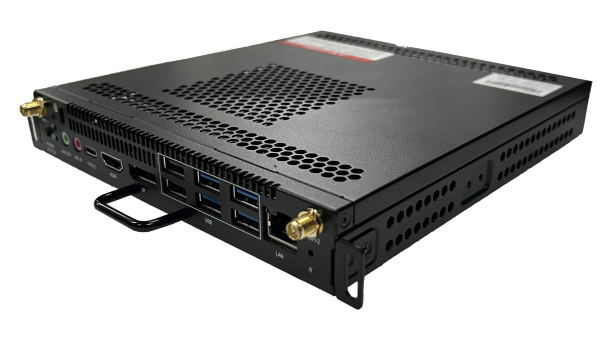

HB-7099-SW | ||||||||
BOM | ||||||||
BOM | 9801C2SA | |||||||
System | ||||||||
CPU | I7-12650H | |||||||
Cores | 10 | |||||||
Threads | 16 | |||||||
CPU Frequency | 2.3 GHz | |||||||
Max. Turbo Frequency | 4.7 GHz | |||||||
RAM | 8 GB DDR4, support for expansion up to 32 GB | |||||||
ROM | 256 GB SSD | |||||||
Operation System | Windows 11 Enterprise (not activated) | |||||||
Interface | ||||||||
USB | 4 × USB 3.0, 2 × USB 2.0, 1 × USB 3.0 USB Type-C | |||||||
Audio | 1 × MIC, 1 × Line Out | |||||||
HDMI | 1 × HDMI (Max. Resolution: 3840 × 2160@60 Hz) | |||||||
DP | 1 × DP (Max. Resolution: 3840 × 2160@60 Hz) | |||||||
Network | 1 × RJ45 (10/100/1000M) | |||||||
Antenna | 2 × dual-band antenna | |||||||
Reset Key | 1 × Reset Key | |||||||
Power on/off Switch | 1 × power on/off switch | |||||||
Power Indicator | 1 × power indicator | |||||||
WLAN | ||||||||
WLAN | 1 × M.2 2230 (Support Cnvi and WIFI 6E, BT 5.2) | |||||||
General | ||||||||
Power Supply | DC 19V, supplies power via OPS interface | |||||||
Overall Power Consumption (W) | ≤85 | |||||||
Standby Power Consumption (W) | ≤35 | |||||||
Product Dimensions (W × H × D) (mm) | 195 × 180 × 30 | |||||||
Package Dimensions (W × H × D) (mm) | 306 × 276 × 78 | |||||||
Weight (kg) | Net Weight: 0.9 | |||||||
Operating Temperature | -10°C to 50°C | |||||||
Operating Humidity | 10% to 90% RH | |||||||
Storage Temperature | -20°C to 70°C | |||||||
Storage Humidity | 10% to 90% RH |
