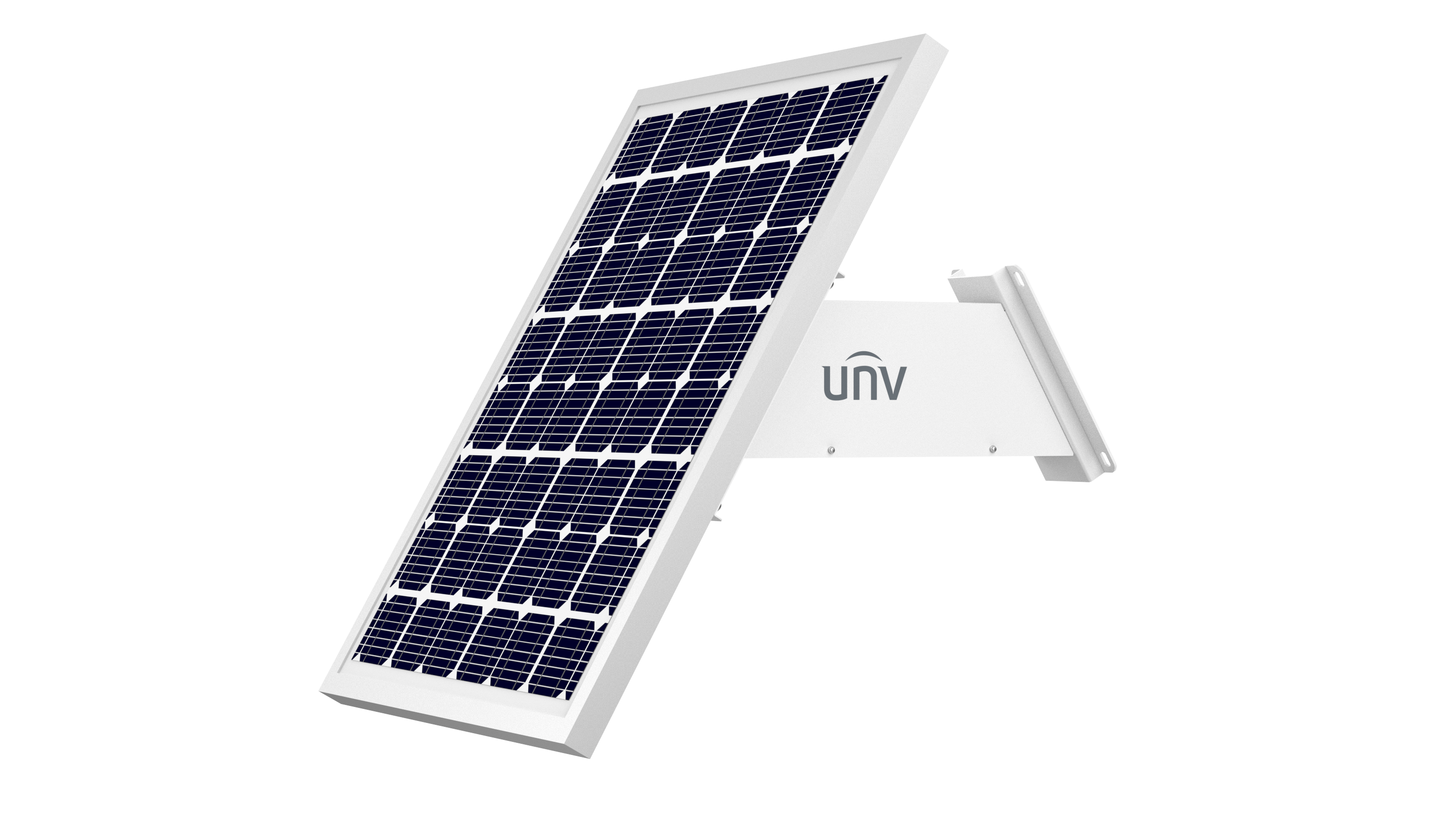

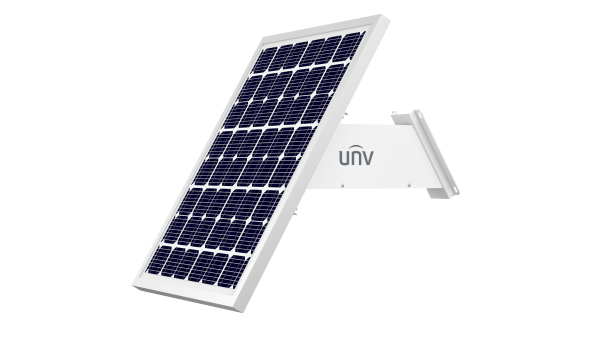

SLR-B320P60 | ||||||||
Lithium Battery | ||||||||
Battery capacity | 100 Ah | |||||||
Rated energy | 320 Wh | |||||||
Limited charge voltage | 7 V | |||||||
Output voltage | 9 V to 12.6 V | |||||||
Maximum output current | 2 A | |||||||
Input interface type | 4-pin quick connector (for battery switch) | |||||||
Output interface type | DC 12 V circular connector | |||||||
RS485 | Support | |||||||
Dimensions | 419.2 × 118 × 336.5 mm | |||||||
Protection function | High/low temperature protection, overcharge protection, undervoltage protection | |||||||
Solar Panel | ||||||||
Peak power | 60 W | |||||||
Operating voltage | 4.5 V | |||||||
Operating current | 13.33 A | |||||||
Open circuit voltage | 5.4 V | |||||||
Short circuit current | 14.66 A | |||||||
Cell conversion efficiency | ≥ 22% | |||||||
Output interface type | 4-pin quick connector (for battery switch) | |||||||
Dimensions | 765 × 395 × 25 mm | |||||||
Operation and Maintenance Module | ||||||||
Open circuit voltage | 12 V | |||||||
Typical power consumption | 0.84 W | |||||||
Maximum power consumption | 2 W | |||||||
Input interface type | DC 12 V circular connector | |||||||
RS485 | Support | |||||||
Reset button | Support | |||||||
Indicator | Blinking green: Normal operation; Steady red: Network error | |||||||
Dimensions | 90 × 90 × 38.3 mm | |||||||
Ingress protection | IPX5 | |||||||
Accessory | One-to-two power cable | |||||||
Specification | ||||||||
Operating temperature | -20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge) | |||||||
Weight | 11.3KG | |||||||
General | ||||||||
Suitable pole diameter | 67mm to 110 mm |
