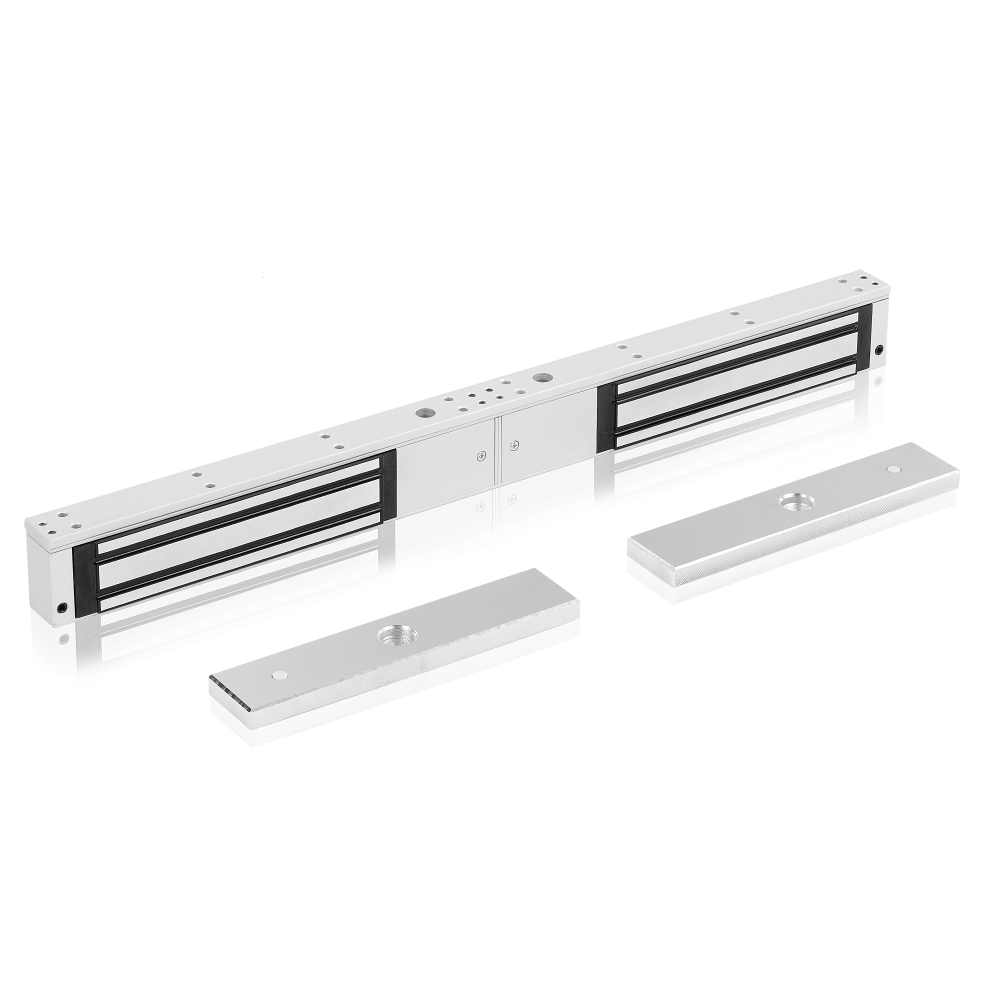

| OEA-ML22-280 | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC12V/DC24V | |||||||
| Operating Current | 460mA*2 | |||||||
| Standby Current | 460mA*2/230mA*2 | |||||||
| Security Type | Failsafe | |||||||
| Operating Environment | Operating temperature: -30°C to +60°C; operating humidity: ≤95% | |||||||
| Weight | 4kg | |||||||
| Dimensions (L x W x H) | Lock housing:500×47.7×27.5; armature plate: 180×38×11.7 | |||||||
| Door Support | Wooden door, glass door, metal door, etc. | |||||||
| Attestation | CE/FCC/ROHS | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 20:48:54 | UNV OEA-ML22-280 OEA-ML22-280 Double Door Magnetic Lock (280KG).pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/4/23 3:30:37 | OEA-ML22-280_HD_Image_1.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/4/23 3:30:37 | OEA-ML22-280_Dimensions_1.png | Download |
