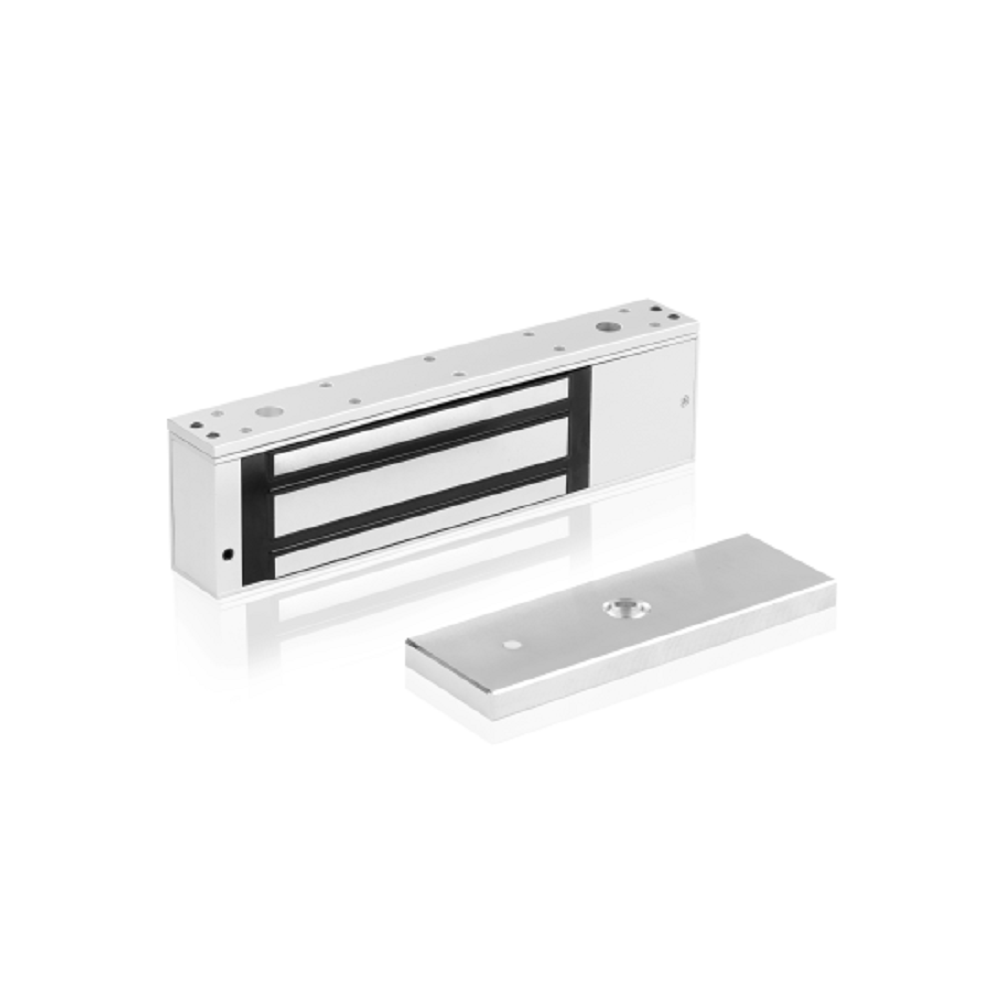

| OEA-ML12-500 | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC12V/DC24V | |||||||
| Operating Current | 600mA | |||||||
| Standby Current | 600mA/300mA | |||||||
| Security Type | Failsafe | |||||||
| Operating Environment | Operating temperature: -30°C to +60°C, operating humidity: ≤95% | |||||||
| Weight | 4.6kg | |||||||
| Dimensions (L x W x H) | Lock body: 265x70x40(mm); armature plate: 185x60x13(mm) | |||||||
| Door Support | Wooden door, glass door, metal door, etc. | |||||||
| Attestation | CE/FCC/ROHS | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 20:48:57 | UNV OEA-ML12-500 OEA-ML12-500 Single-Door Magnetic Lock (500kg).pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/3/5 1:10:25 | OEA-ML12-500_HD_Image_1.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/3/5 1:10:25 | OEA-ML12-500_Dimensions_1.png | Download |
