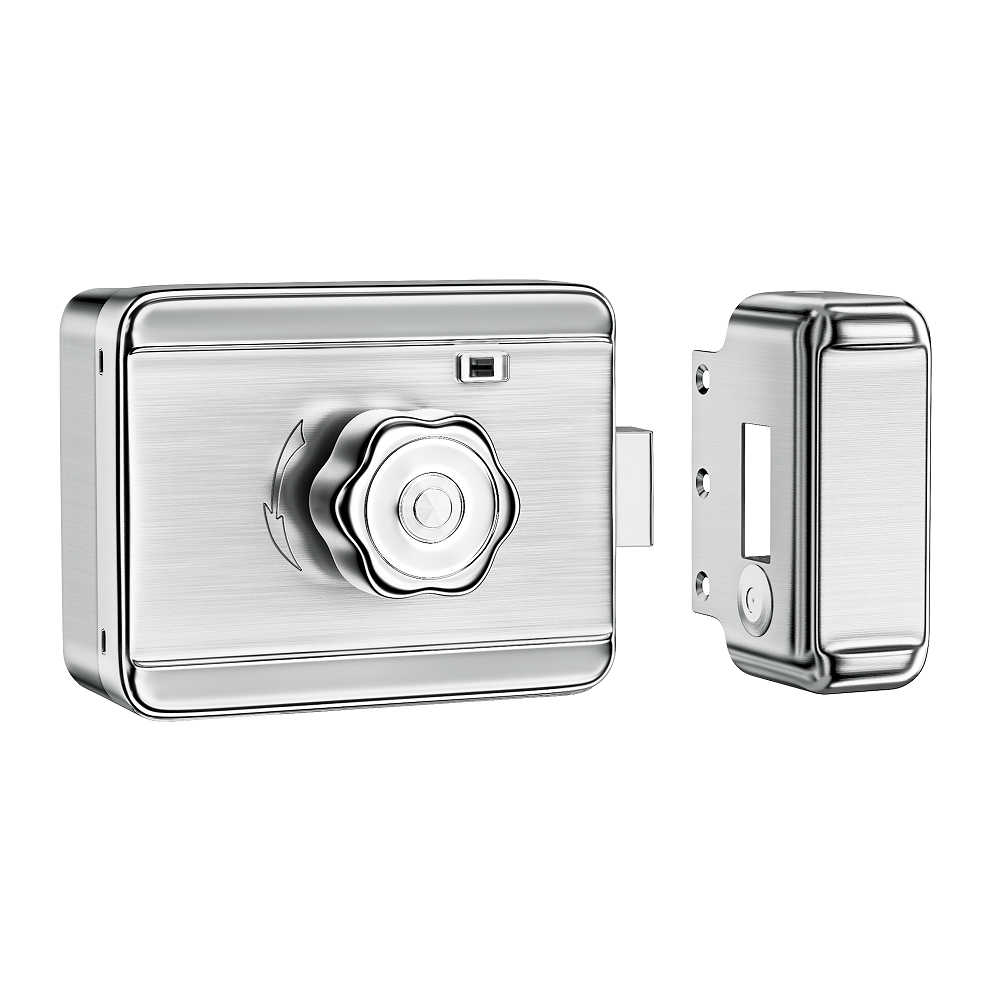

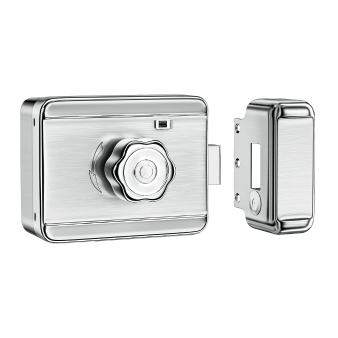

| OEA-TL12 | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC12V | |||||||
| Operating Current | 300mA | |||||||
| Standby Current | 20mA | |||||||
| Security Type | Power failure to stay in place | |||||||
| Operating Environment | Operating temperature: -30°C to +60°C, operating humidity: ≤95% | |||||||
| Weight | 1.25kg (including accessories) | |||||||
| Dimensions (L x W x H) | Main-lock: 132×100×43; sub-lock: 62×100×36 | |||||||
| Door Support | Wooden door, metal door, etc. | |||||||
| Attestation | CE/FCC/ROHS | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 20:49:18 | UNV OEA-TL12 OEA-TL12 Electric Motor Lock.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/3/5 1:10:25 | OEA-TL12_HD_Image_1.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/3/5 1:10:25 | OEA-TL12_Dimensions_1.png | Download |
