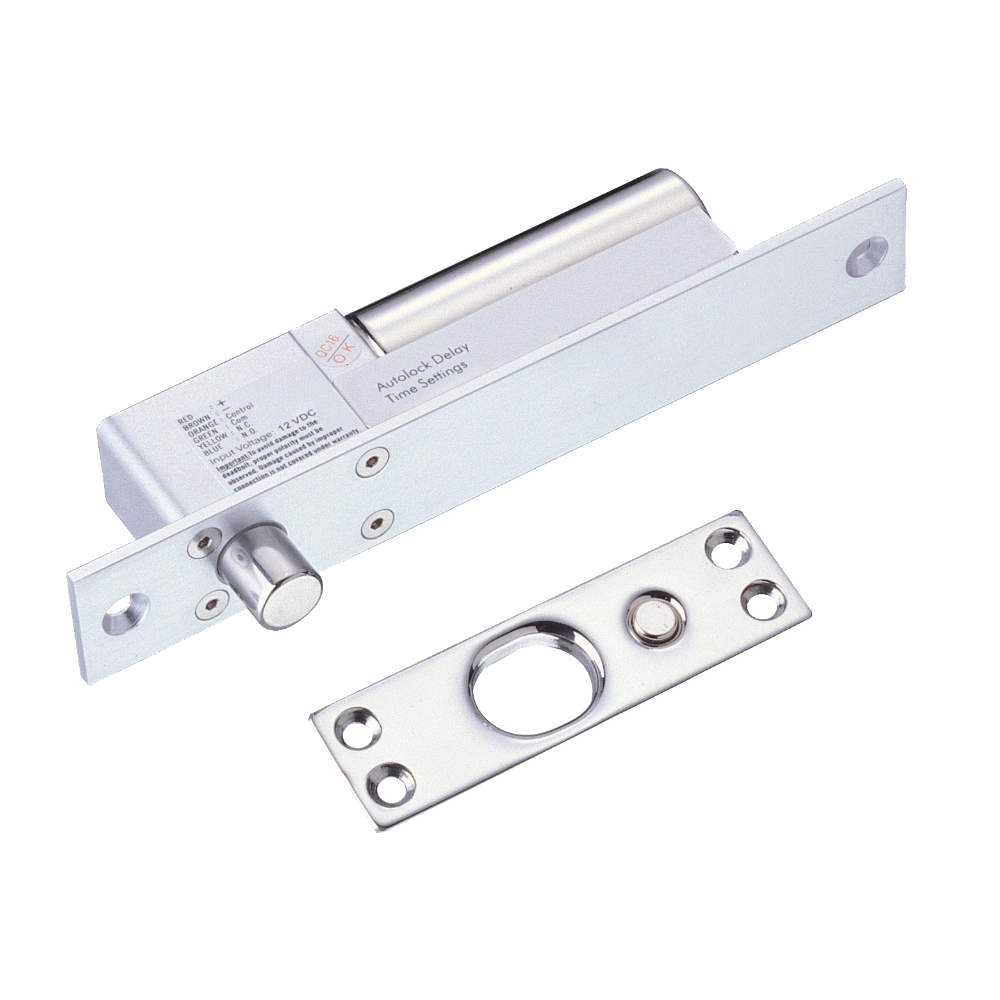

| OEA-EL12 | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC 12 V±10% | |||||||
| Operating Current | 800mA | |||||||
| Standby Current | 110mA | |||||||
| Security Type | Failsafe | |||||||
| Operating Environment | Operating temperature: -30°C to +60°C, operating humidity≤95% | |||||||
| Weight | 0.72kg | |||||||
| Dimensions (L x W x H) | Lock housing: 205×35×42; Lock strike : 87×24×1.5 | |||||||
| Door Support | Wooden door, glass door, metal door, etc. | |||||||
| Attestation | CE/FCC/ROHS | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 20:49:15 | UNV OEA-EL12 OEA-EL12 Electric Bolt Lock.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/3/5 1:10:25 | OEA-EL12_HD_Image_1.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/3/5 1:10:25 | OEA-EL12_Dimensions_1.png | Download |
