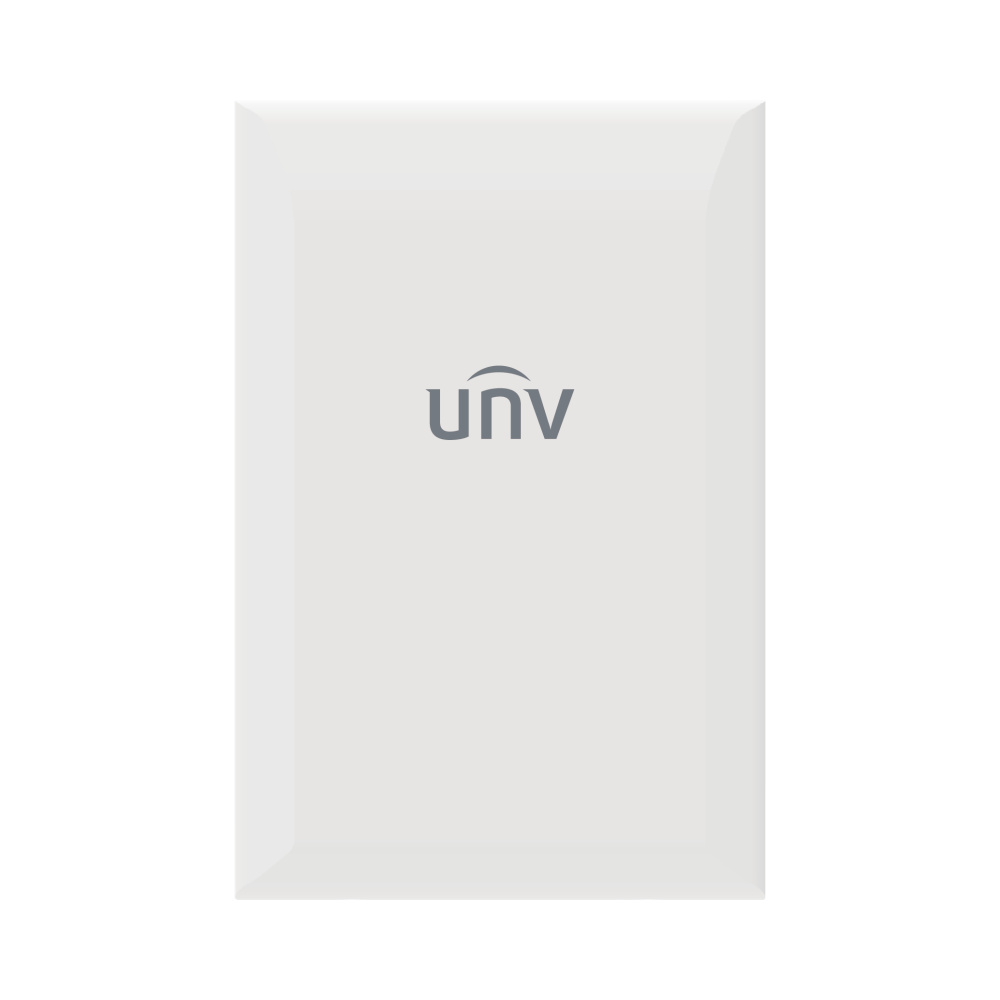

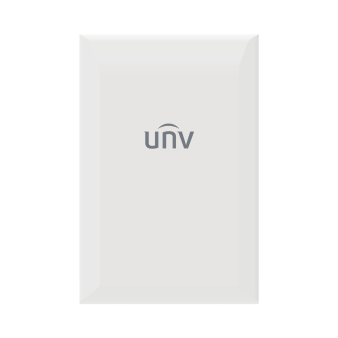

| WLN-EB5N-IN | ||||||||
| Hardware Specification | ||||||||
| Dimensions(mm) | 140x93x43mm | |||||||
| Weight(kg) | 0.19kg | |||||||
| Installation | Pole mounting, Diameter≤55mm  | |||||||
| Protection Level | IP65 | |||||||
| Antenna Gain | 12dBi | |||||||
| Beam Width | H:35°,V:35° | |||||||
| Max Power Consumption(W) | 6W | |||||||
| Average Power Consumption(W) | 4W | |||||||
| CPU | AR9344 | |||||||
| DDR \ Memory | 64MB DDR2, 8MB Flash | |||||||
| Physical Interface | 2*10/100Mbps | |||||||

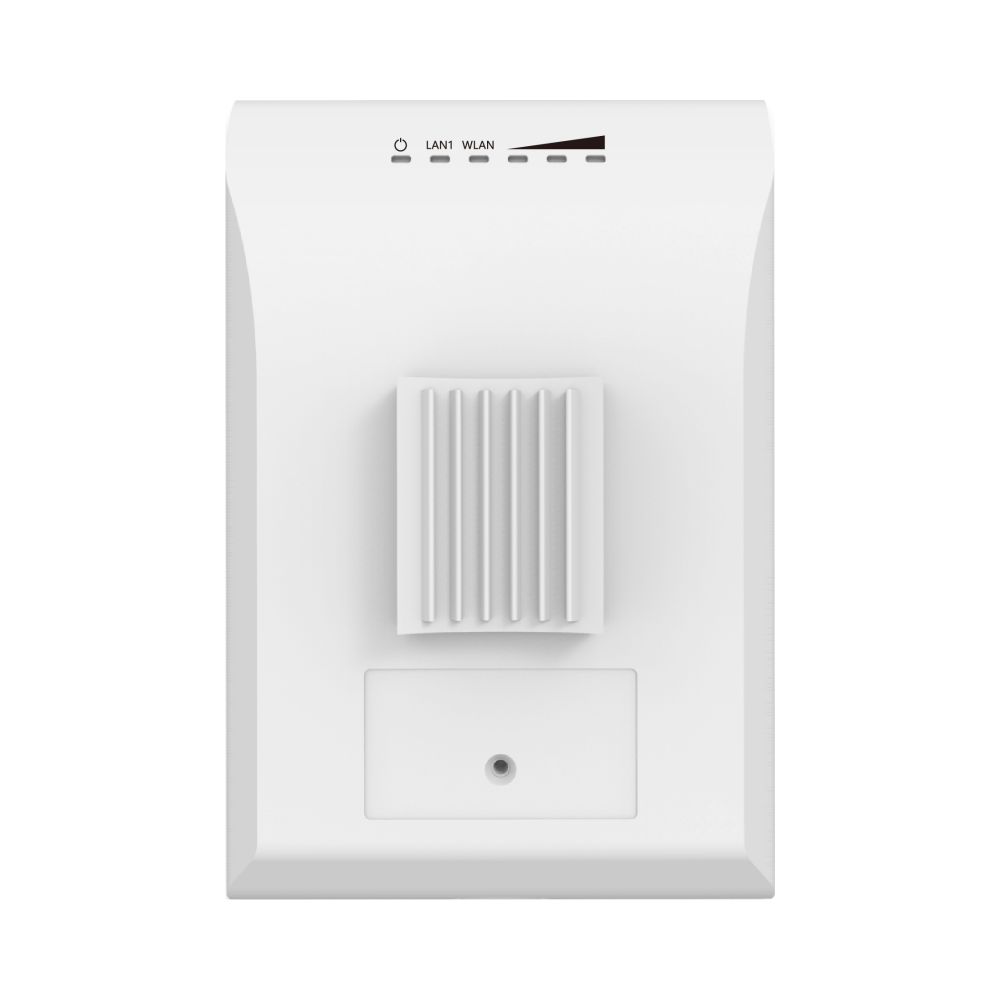

| Indicator Light | 1*Power Indicator, 1*WLAN Indicator, 1*LAN Indicator, 3* Signal strength indicator  | |||||||
| Maximum Transmitted Power | 24dBm | |||||||
| Working Temperature | -40℃~65℃ | |||||||
| Working Humidity | 5%~95%RH Non-condensing | |||||||
| Surge | POE/GE: CM 2KV , DM 1KV | |||||||
| ESD Protection | Contact 6KV , Air 8KV | |||||||
| Wind Survivability | 134km/h | |||||||
| Hardware Specification | ||||||||
| Power Supply | 12V Passive POE | |||||||
| Storage Temperature | -40℃~85℃ | |||||||
| Software Specification | ||||||||
| Protocol | 802.11a/n | |||||||
| Frequency | 5180~5320MHz, 5745~5825MHz (China), 5180~5320MHz, 5500~5720MHz, 5745~5825MHz (United States), 5160~5340MHz, 5480~5720MHz, 5745~5865MHz (India), 5160~5340MHz, 5480~5720MHz, 5745~5825MHz (United Arab Emirates), 5745~5805MHz (Indonesia), Supported frequency range: 4920~6100MHz (should depend on the local regulation), * The above frequencies need specific version support  | |||||||
| Operating Mode | Station, WDS Station | |||||||
| Network Mode | Bridge/ Router | |||||||
| Management | Support Web/AC/SNMP | |||||||
| Other | Timed restart,Support VLAN,QoS, Watchdog | |||||||
| Software Specification | ||||||||
| Security | WPA2-PSK, Hidden SSID, IP/MAC Filtering | |||||||
