NSW2020-24T1GT1GC-LPOE-IN - Uniview - Leader of AIoT Solution

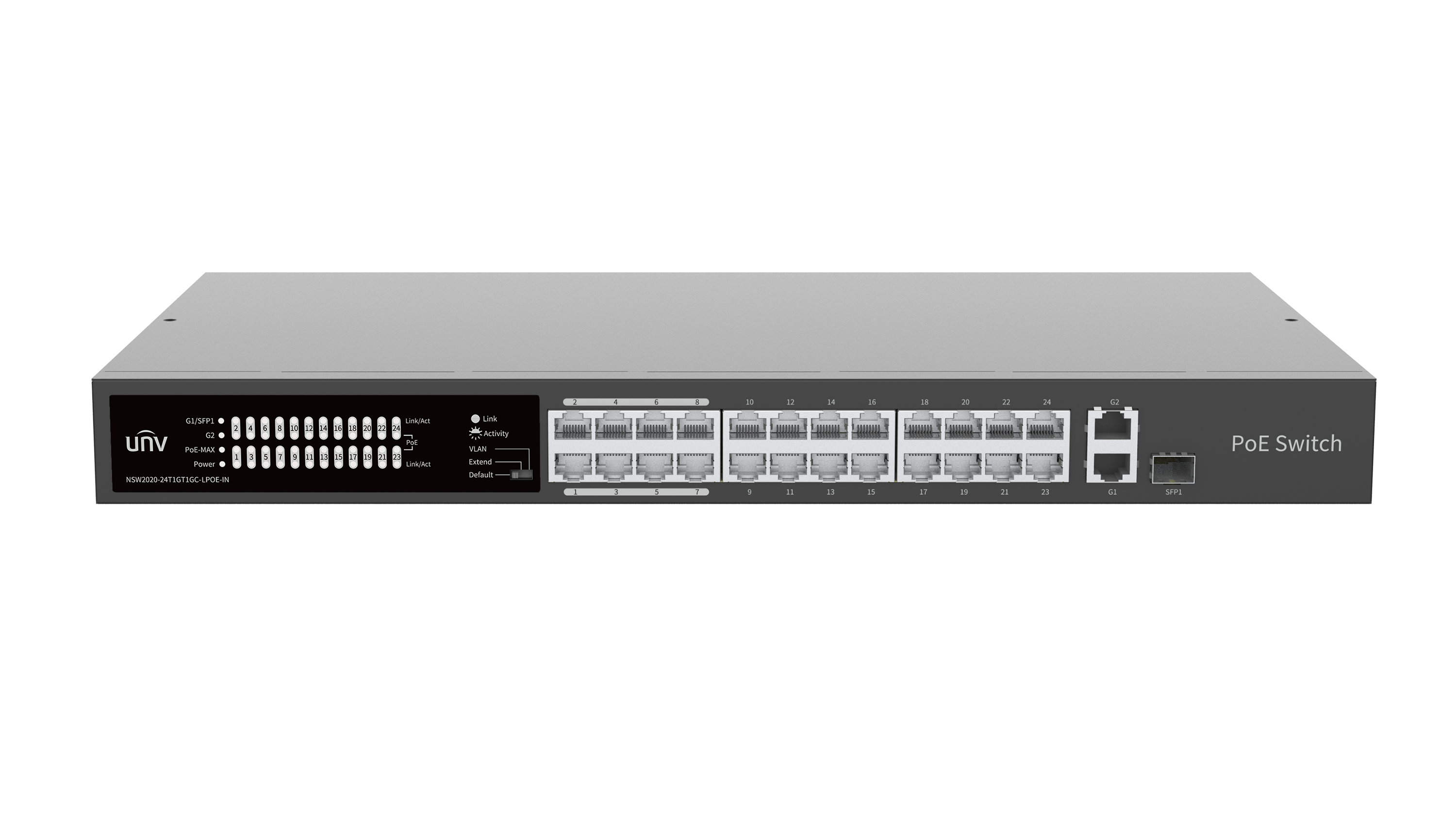

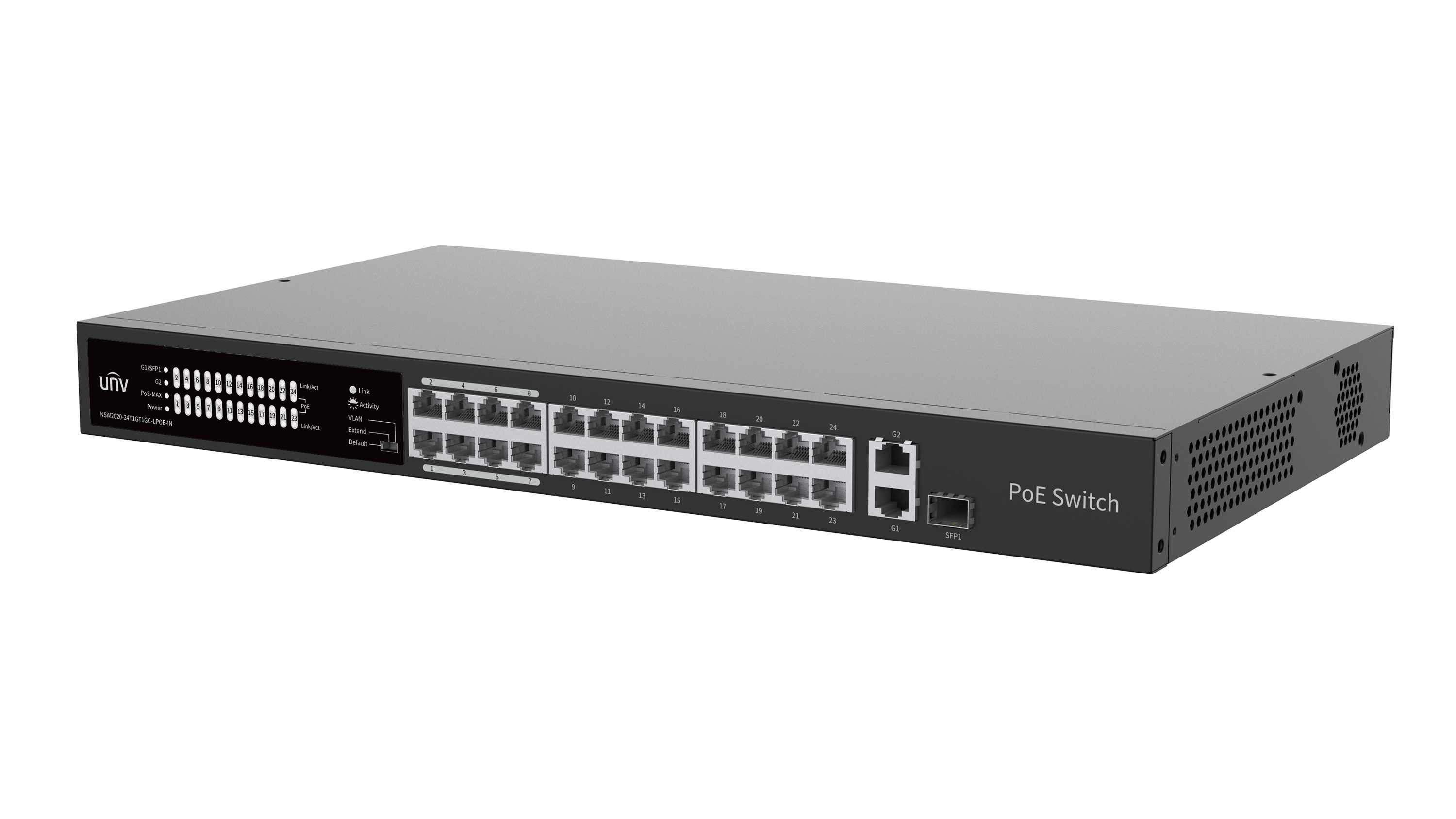

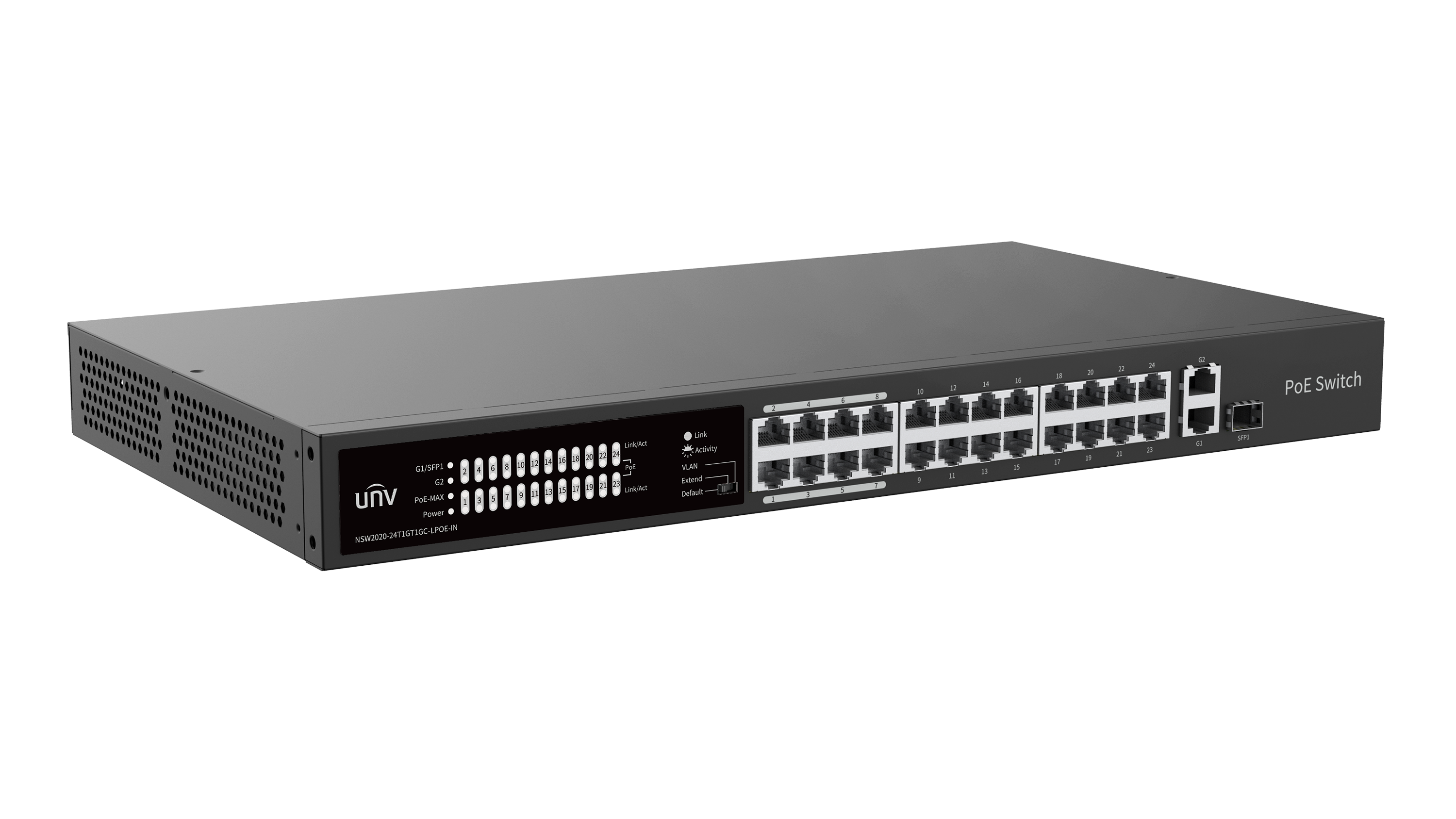

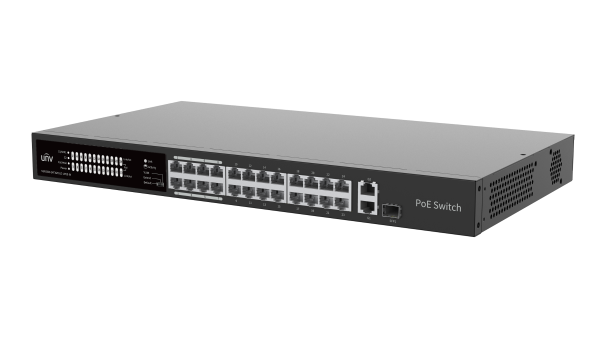

NSW2020-24T1GT1GC-LPOE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Datasheet
HD Image
Quick Guide

Class	Date	Title	Language	Type	Preview	Download
Datasheet	6/20/2025 1:40:09 PM	UNV NSW2020-24T1GT1GC-LPOE-IN Ethernet Low Power PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	6/23/2025 12:56:54 PM	NSW2020-24T1GT1GC-LPOE-IN_HD_Image_1.png	png	Download
HD Image	6/23/2025 12:56:54 PM	NSW2020-24T1GT1GC-LPOE-IN_HD_Image_2.png	png	Download
HD Image	6/23/2025 12:56:54 PM	NSW2020-24T1GT1GC-LPOE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	5/15/2025 4:02:24 AM	Quick Guide.pdf	English	pdf	Preview	Download

	NSW2020-24T1GT1GC-LPOE-IN
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity	8.8 Gbps
Packet Buffer	4 M bit
MAC	16K
Forwarding performance	6.55Mpps
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Cooling Fans	1
Max.Power	250W
Dimensions (W×D×H)	44025044mm
Weight	2.15KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time
Hardware Specification
PoE Mode	802.3at/af , ModeB : (4/5+, 7/8-)
