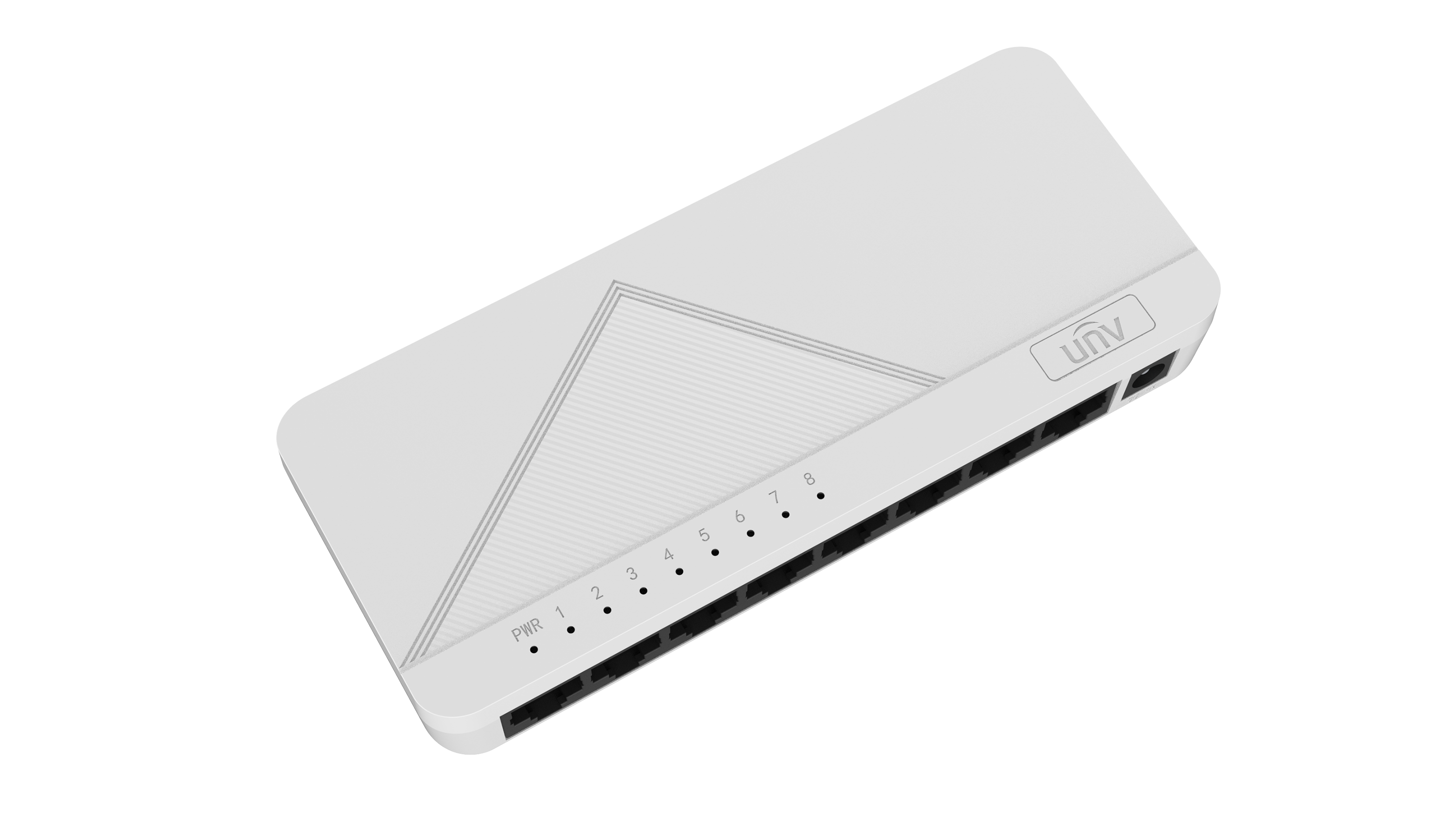

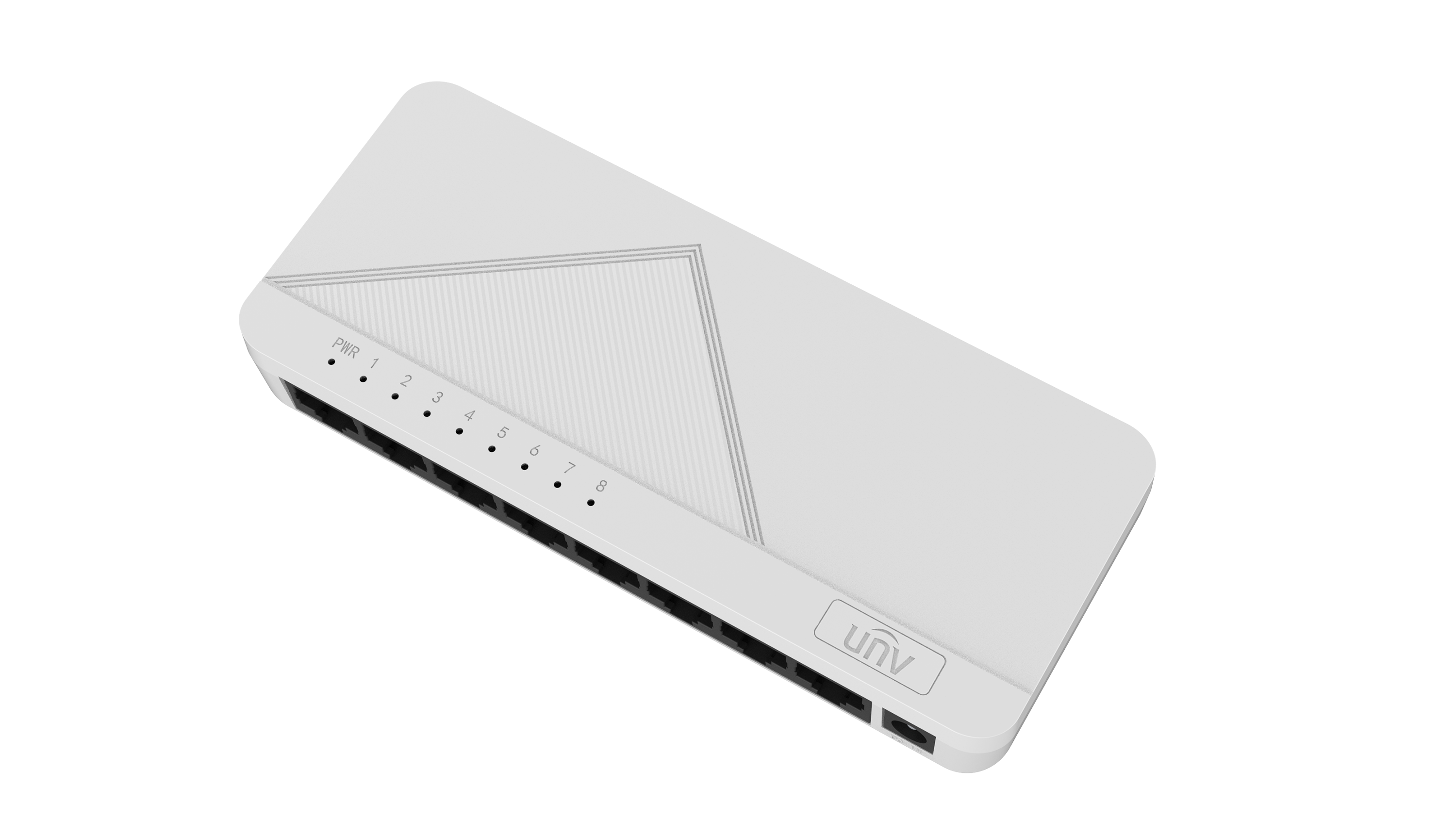

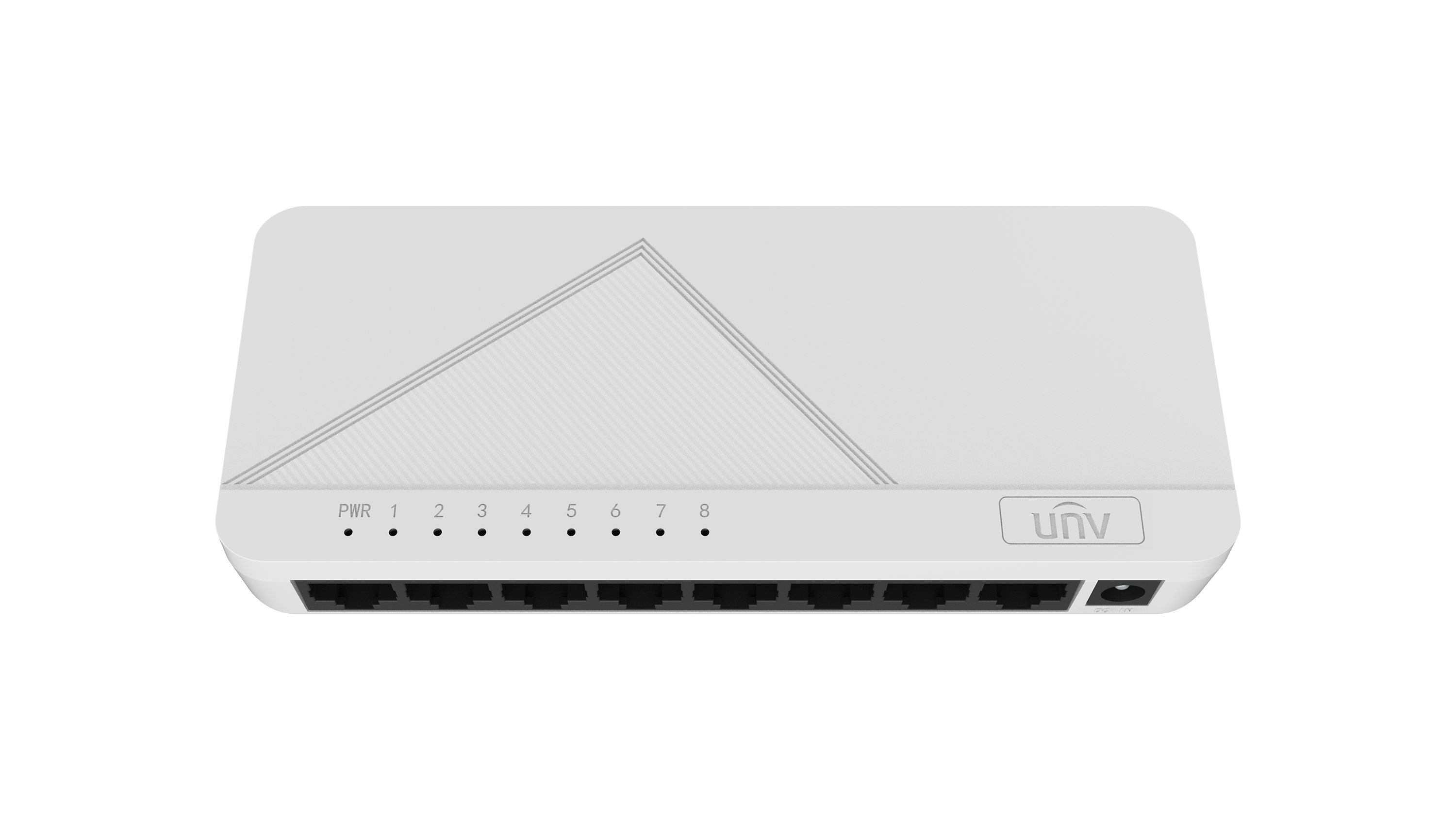

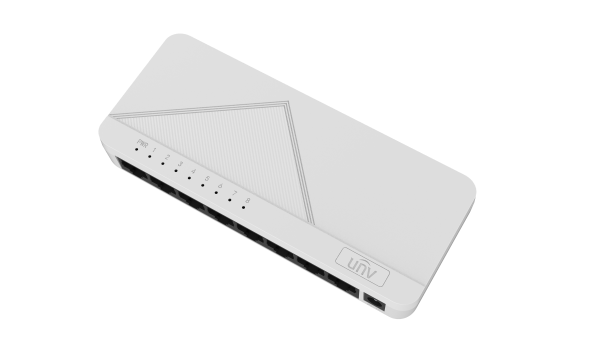

NSW1010-8T-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 8 x 10/100Mbps port (RJ45) | |||||||
Switching capacity | 1.6 Gbps | |||||||
MAC | 2K | |||||||
Forwarding performance | 1.19Mpps | |||||||
Standards | IEEE802.3 IEEE802.3u IEEE802.3x | |||||||
Power Supply | DC: 5V 1A, powered by adapter (AC: 100 to 240V) | |||||||
Carton Information | Carton dimensions: 530*475*315mm Carton quantity: 100PCS Carton weight: 17.6kg | |||||||
Mount Method | Desktop mount, wall mount | |||||||
Cooling Fans | 0 | |||||||
Dimensions (W×D×H) | Product: 145*60*21.5mm Packaging: 146*88*50mm | |||||||
Operating Temperature | -10 to 50°C (14°F to 122°F) | |||||||
Operating Humidity | 10% to 90% (noncondensing) | |||||||
Indicator | POWER: Steady on: AC input is normal Off: No AC input LINK/ACT: Off: No link Steady on: Linked Flashing: Transmitting data | |||||||
Weight | Product: 0.111kg Packaging: 0.166kg |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 2025/8/8 15:50:11 | UNV NSW1010-8T-IN Unmanaged Ethernet Switch.pdf | English | Preview | Download A > |
