| CAB-RG59-200S | ||||||||
| Cable | ||||||||
| Product model | CAB-RG59-200S | |||||||
| Product specification | Coaxial Cable RG59 CCS 200m | |||||||
| Packing length | 200m | |||||||
| Ambient temperature | -30℃~60℃ | |||||||
| Conductor | ||||||||
| AWG | 20 | |||||||
| Nom.O.D.(mm) | 0.81±0.01 mm | |||||||
| Material | CCS(Copper-clad Steel) | |||||||
| Insulation | ||||||||
| Material | FPE | |||||||
| Diameter | 3.75±0.1 mm | |||||||
| Tape | ||||||||
| Material | Shielding Aluminum Foil, 15mm width | |||||||
| Thickness | 0.04mm | |||||||
| Braid | ||||||||
| Material | CCA(Copper-clad Aluminum) | |||||||
| Braiding Standard | 16*7*0.12mm | |||||||
| Braiding Density | 85±1% | |||||||
| Impedance | ||||||||
| Impedance | 75±3ohms | |||||||
| Sheath | ||||||||
| Material | PVC | |||||||
| Thickness | 0.7mm | |||||||
| External O.D. | 5.9±0.1mm | |||||||
| Flame Retardant | VW-1 | |||||||
| Color | Black | |||||||
| Packing | ||||||||

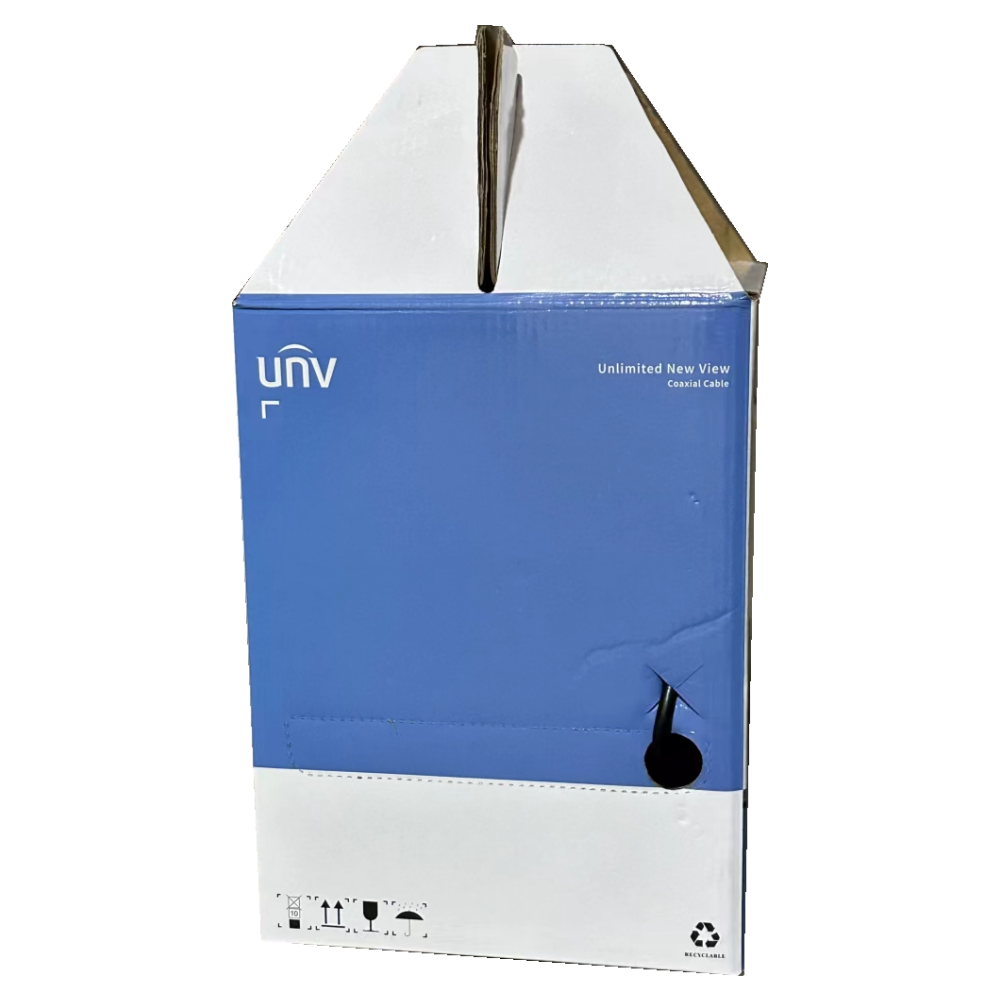

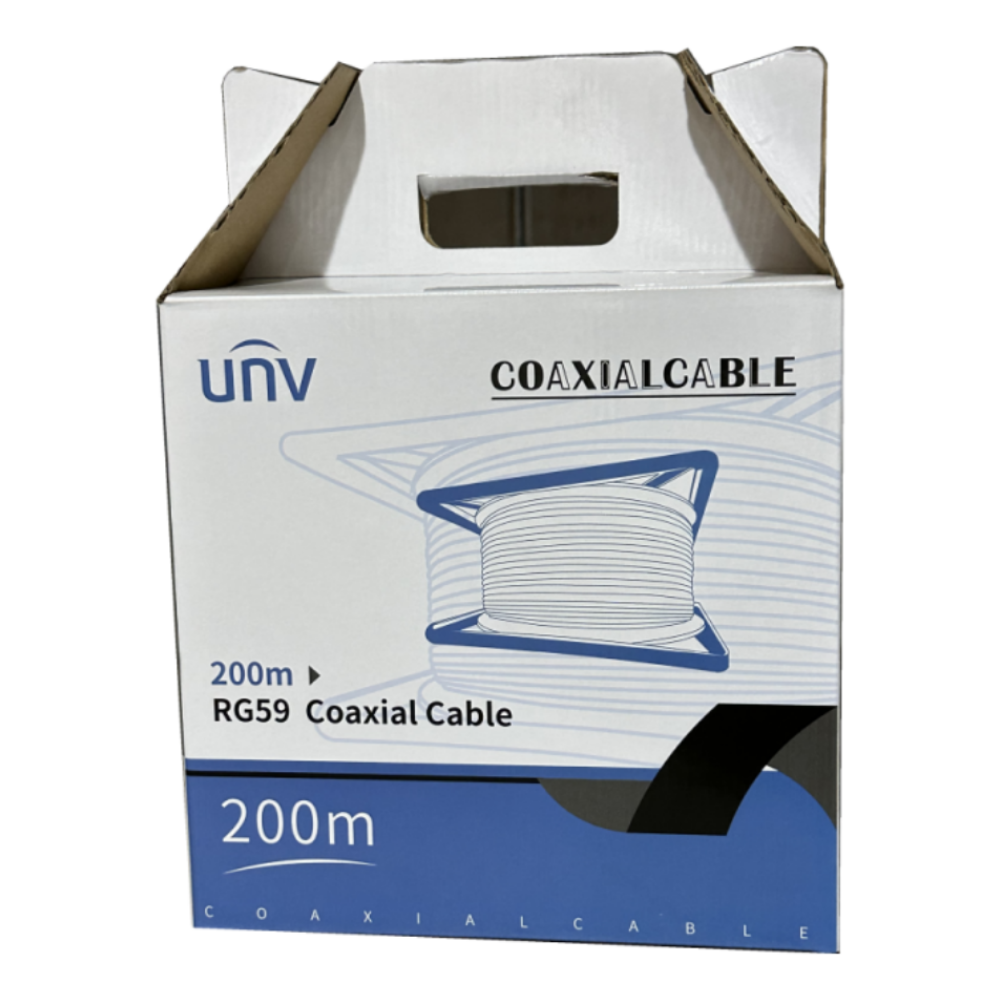

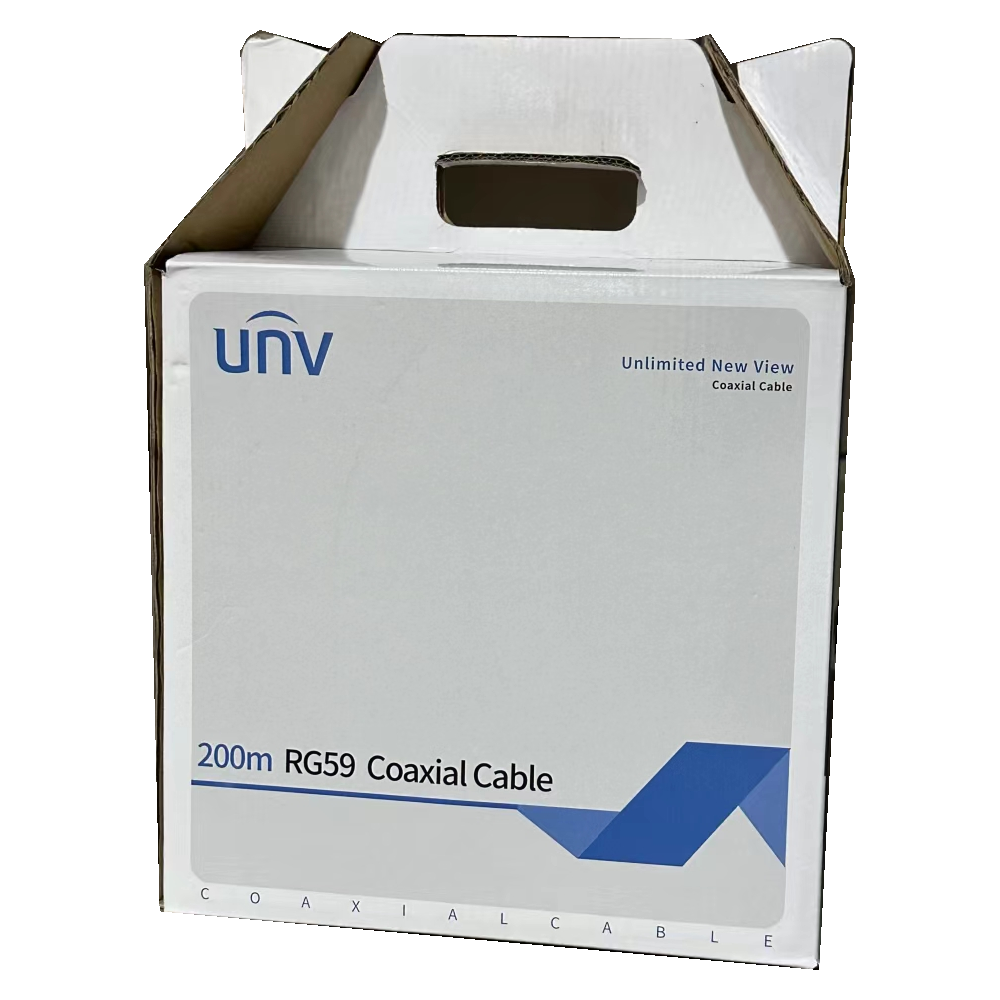

| Packing | Pull box | |||||||
| Once packing dimension | 275*183*275mm | |||||||
| Twice packing dimension | 285*383*285mm | |||||||
| Twice packing quantity | 2 cases | |||||||
