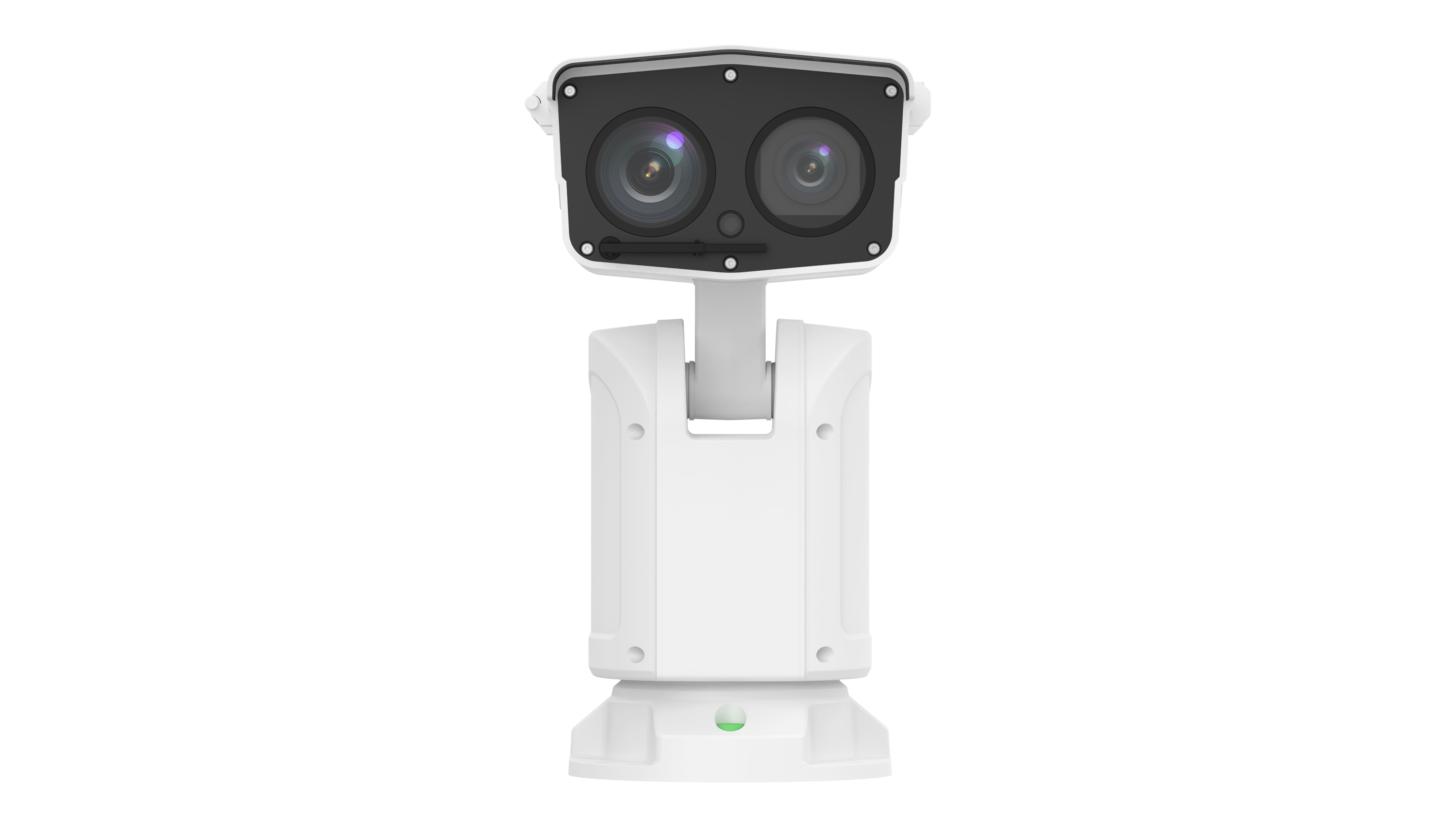

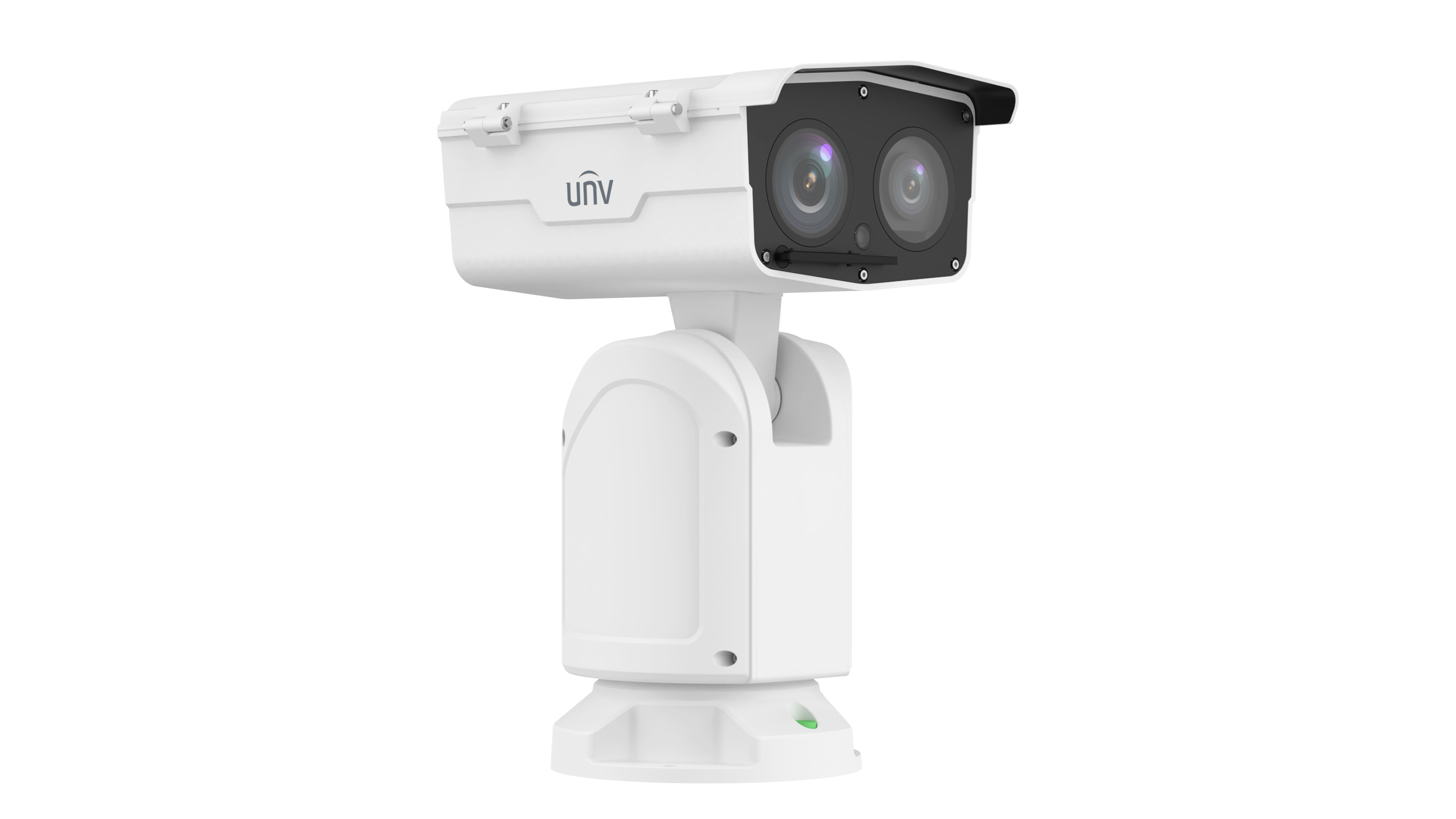

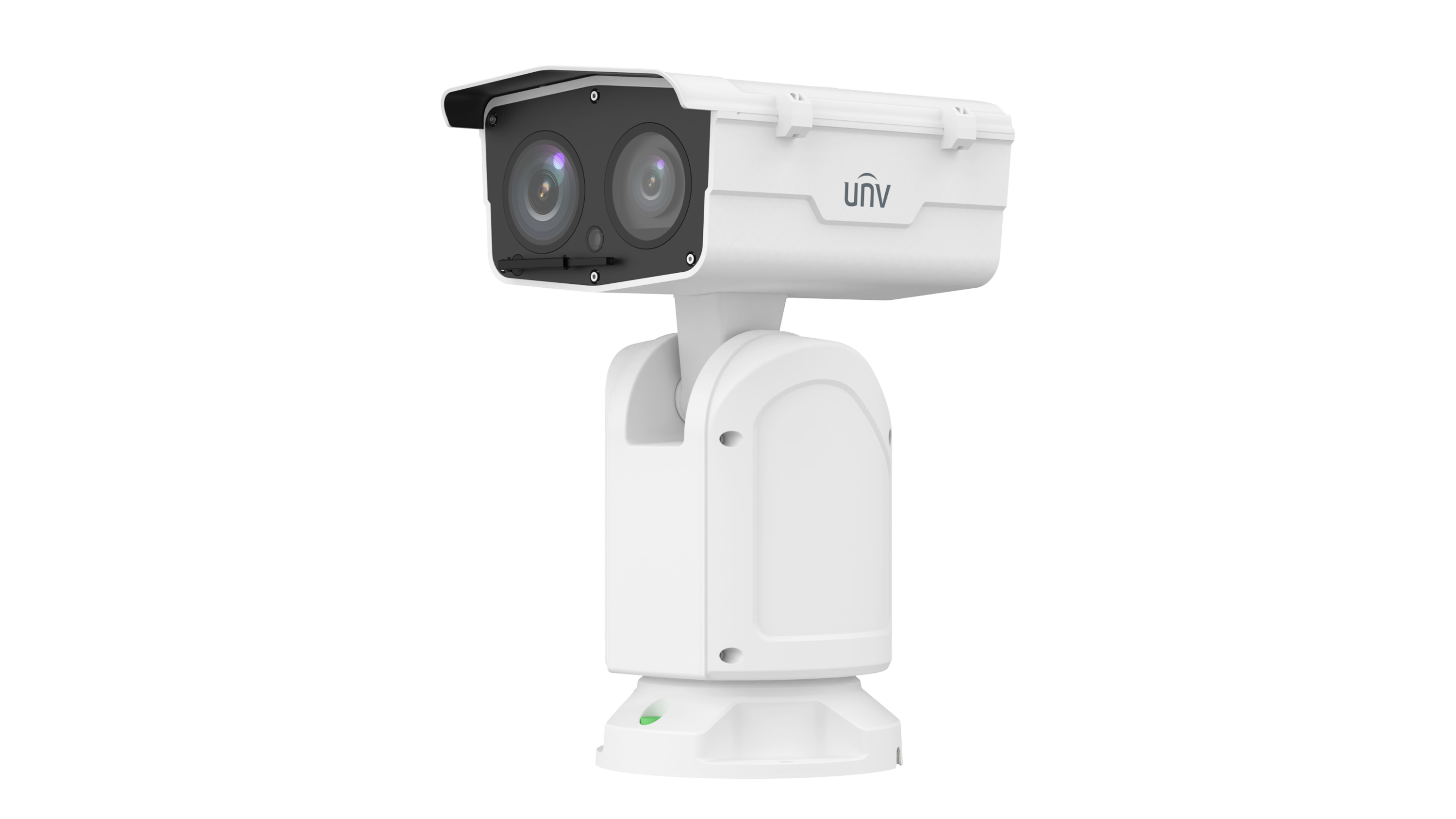

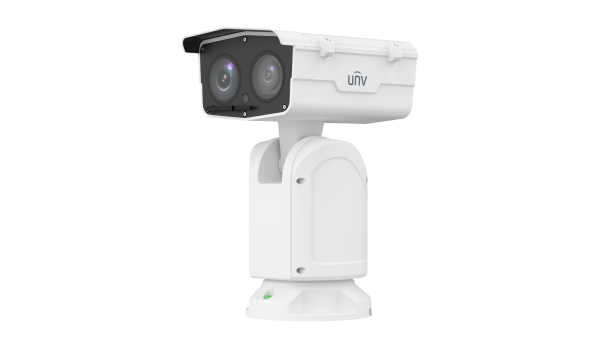

IPC7628EL-L-X41-VH1 | ||||||||
Camera | ||||||||
Max Resolution | 8 MP | |||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Colour: 0.0002Lux (F1.2, AGC ON) 0Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 6~246mm | |||||||
Digital Zoom | 16X | |||||||
Optical Zoom | 41X | |||||||
Iris | F1.2(W)~F4.6(T) | |||||||
Field of View (H) | 57.96°(W)~2.15°(T) | |||||||
Field of View (V) | 34.61°(W)~1.21°(T) | |||||||
Field of View (D) | 75.3°(W)~2.6°(T) | |||||||
DORI | ||||||||
DORI Distance (Detect) | 155.5m~4829.4m(510.1ft~15844.5ft) | |||||||
DORI Distance (Observe) | 62.2m~1931.8m(204.0ft~6337.8ft) | |||||||
DORI Distance (Recognize) | 31.1m~965.9m(102.0ft~3168.9ft) | |||||||
DORI Distance (Identify) | 15.5m~482.9m(51.0ft~1584.4ft) | |||||||
Illuminator | ||||||||
Illumination Distance (VF laser) | 1000 m (3280.8 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Privacy Mask | 24 areas, up to 8 areas per scene | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
Video Bit Rate | 128Kbps~16384Kbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple streams | |||||||
OSD | Up to 10 OSDs | |||||||
Frame Rate Recommendation | 8MP@30fps+1080P@30fps+D1@30fps | |||||||
Intelligent | ||||||||
People Counting | Support people flow counting and crowd density monitoring | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Multi-target Detection | Support | |||||||
Image | ||||||||
Defog | Support | |||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Events | ||||||||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind | |||||||
General Function | Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
PTZ | ||||||||
Pan Range | 360° (endless) | |||||||
Pan Speed | 0.1°/s~140°/s | |||||||
Tilt Range | +45°~-90° | |||||||
Tilt Speed | 0.1°/s ~ 50°/s | |||||||
Number of Presets | 1024 | |||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
Recorded Patrol | Support | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Patrol Stay Time | 15 s to 1800 s | |||||||
Preset Image Freeze | Support | |||||||
Home Position | Support | |||||||
Number of Presets (IPC) | 1024 | |||||||
3D Location | Support | |||||||
Number of Patrol | 16 | |||||||
Snow Removal Mode | Support | |||||||
Patrol Recording | Support | |||||||
Network | ||||||||
User/Host | Up to 32 users. 3 user levels: administrator,common user and operator | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6 | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 7/2 | |||||||
Serial Port | 1 * RS485 | |||||||
Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP | |||||||
Video Output | 1 BNC (for debugging) | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032:2015,EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3:2013)FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN IEC 62368-1:2020+A11:2020)UL (UL UL 62368-1, 3rd Ed.,2021-10-22) | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66(IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
Power | DC ±48V±25%, DC 24V±15% (DC20V~DC60V), AC 24V±25% | |||||||
Power Consumption | Max 114W | |||||||
Power Interface | Wires with cold-pressed terminal | |||||||
Dimensions | 366 x 283 x 509mm (14.4" x 11.1" x 20.0") (L*W*H) | |||||||
Weight | 15.42Kg | |||||||
Working Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 6 KV | |||||||
Reset Button | Support | |||||||
RTC | Support | |||||||
Material | Metal | |||||||
Live View | ||||||||
Maximum Bitstream | 35 | |||||||
Maximum Bandwidth | 50 Mbps | |||||||
Plugin Free | Support | |||||||
OSD Font | Vector | |||||||
OSD Color | Support | |||||||
OSD Character Number | 40 | |||||||
3D Privacy Mask | Support | |||||||
Compliance | ||||||||
NDAA Compliant | N/A |
