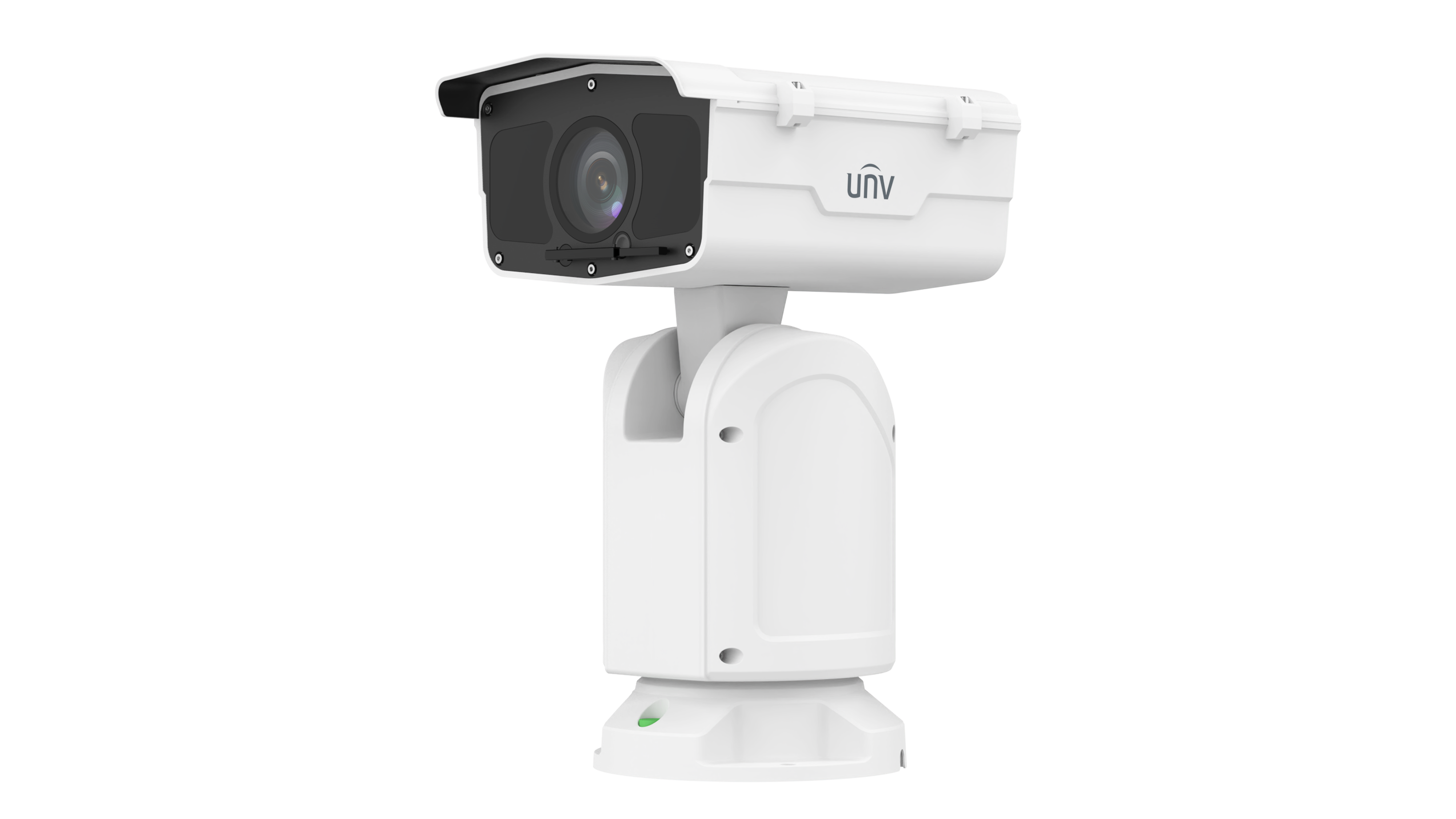

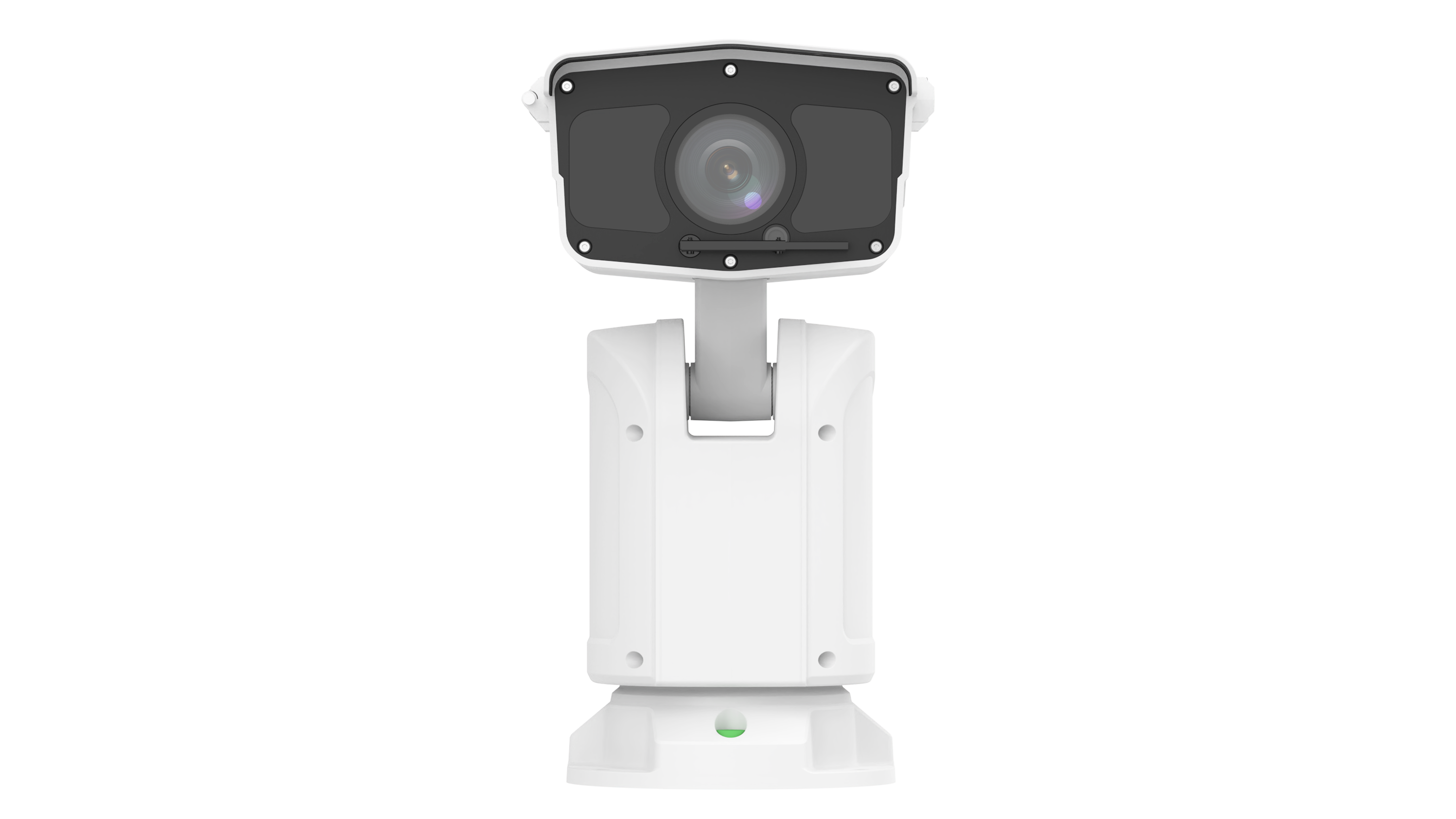

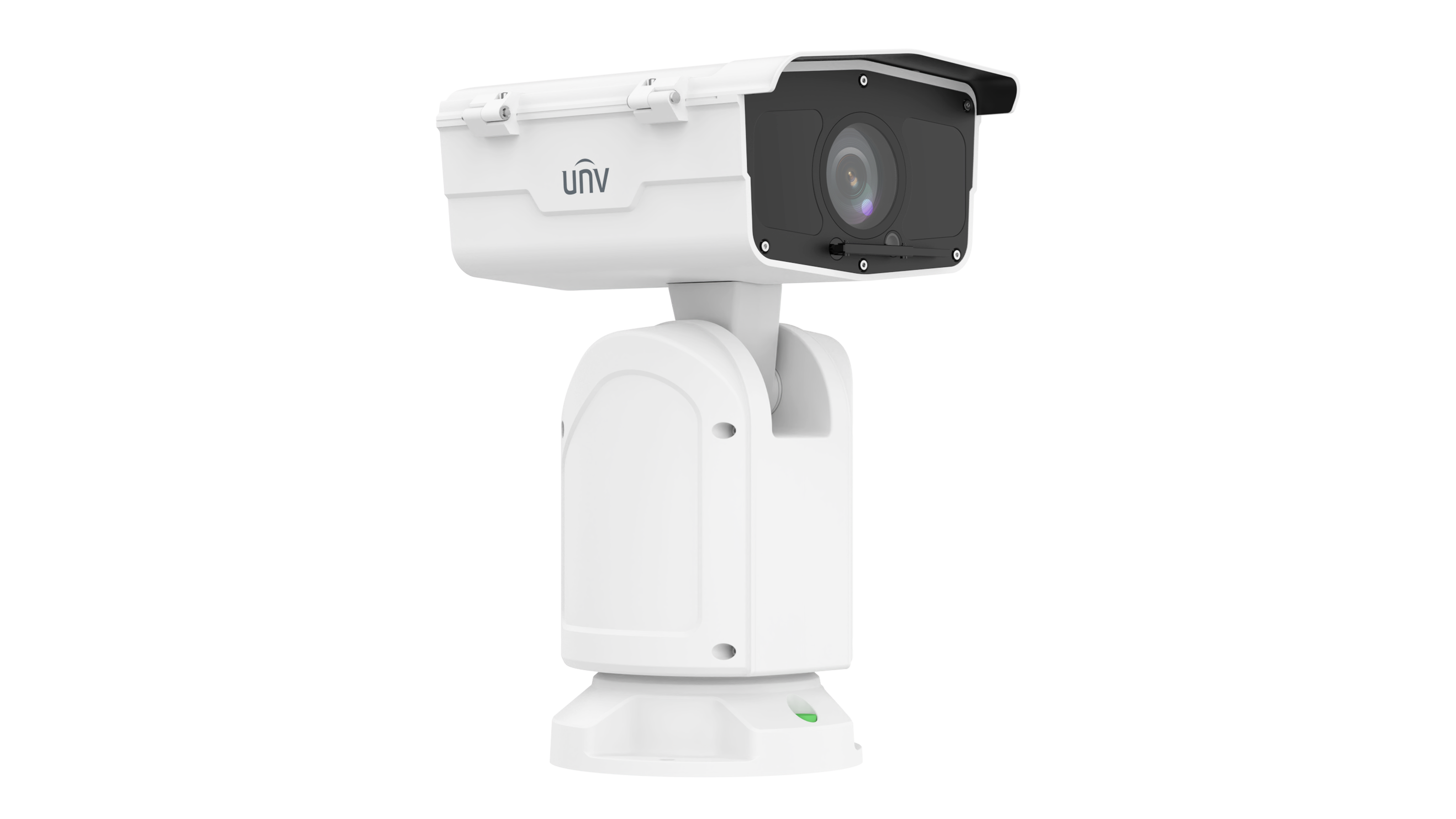

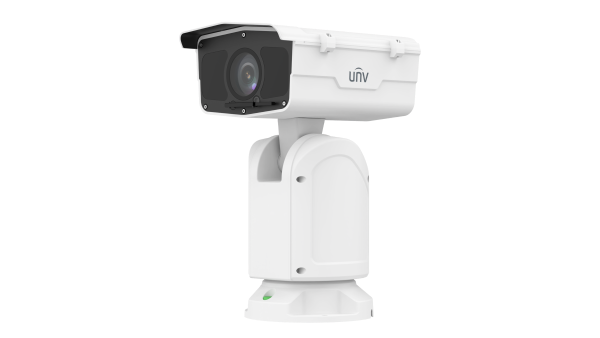

| IPC7622ER-X45-VH1 |
Camera |
Sensor | 1/1.8" CMOS |
Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 to 1/100000 s |
WDR | 120 dB |
S/N | >52 dB |
Lens |
Focal Length | 5.7 to 256.5 mm |
Digital Zoom | 16X |
Optical Zoom | 45X |
Iris | F1.2(W)~F4.6(T) |
Field of View (H) | 59.47° (W) to 2.21° (T) |
Field of View (V) | 35.62° (W) to 1.21° (T) |
Field of View (D) | 77.3° (W) to 2.6° (T) |
DORI |
DORI Distance (Lens) | 5.7 to 256.5 mm |
DORI Distance (Detect) | 107.2 m to 3330 m (351.7 ft. to 10925.2 ft) |
DORI Distance (Observe) | 42 m to 1332 m (140 ft. to 4370 ft) |
DORI Distance (Recognize) | 21.0 m to 666 m (68.9 ft. to 2185.0 ft) |
DORI Distance (Identify) | 10.0 m to 333.0 m (32.8 ft. to 1092.5 ft) |
Video |
Privacy Mask | 24 areas, up to 8 areas per scene |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 1080P (1920 × 1080), max. 60 fps; Sub Stream : 1080P (1920 × 1080), max. 60 fps; Third Stream : D1 (720 × 576), max. 60 fps |
Video Bit Rate | 128Kbps~16384Kbps |
U-code | Support |
ROI | Support |
Video Stream | Triple streams |
OSD | Up to 10 OSDs |
Intelligent |
Multi-target Detection | Support |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
People Counting | Support people flow counting and crowd density monitoring |
Image |
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Flip | Normal, Flip vertical, Flip horizontal, 180° |
HLC | Support |
BLC | Support |
Defog | Support |
Events |
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind |
General Function | Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Audio |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 128 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 16KHZ |
Storage |
Edge Storage | MicroSD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Illuminator |
IR On/Off Control | Auto/Manual |
Wavelength | 850 nm |
Illumination Distance (IR) | 400 m (1312.3 ft) |
Network |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6 |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator,common user and operator |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | EZStation, UNV-Link, UNV-Link Pro |
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
PTZ |
Number of Presets | 1024 |
Preset Patrol | 16 patrols, up to 64 presets for each patrol |
Route Patrol | 16 patrols, up to 32 actions for each patrol |
Recorded Patrol | Support |
Patrol Stay Time | 15 s to 1800 s |
Preset Image Freeze | Support |
Home Position | Support |
Pan Range | 360° (endless) |
Tilt Range | 45° to -90° |
Pan Speed | 0.1°/s to 140°/s |
Tilt Speed | 0.1°/s to 50°/s |
Interface |
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Alarm I/O | 7/2 |
Serial Port | 1 * RS485 |
Network | 1 × RJ45 1000 M Base-TX Ethernet |
Video Output | 1 BNC (for debugging) |
Certification |
EMC | CE-EMC (EN 55032:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3:2013)FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN IEC 62368-1:2020+A11:2020)UL (UL 62368-1, 3rd Ed.,2021-10-22) |
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General |
Power | DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25% |
Power Consumption | Max. 103 W |
Power Interface | Wires with cold-pressed terminal |
Dimensions | 366 mm × 283 mm × 509 mm (14.4" × 11.1" × 20.0") (L × W × H) |
Weight | 14.76 kg (32.54 lb) |
Working Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 6 KV |
Reset Button | Support |
Configurable |
P/N | Support |
