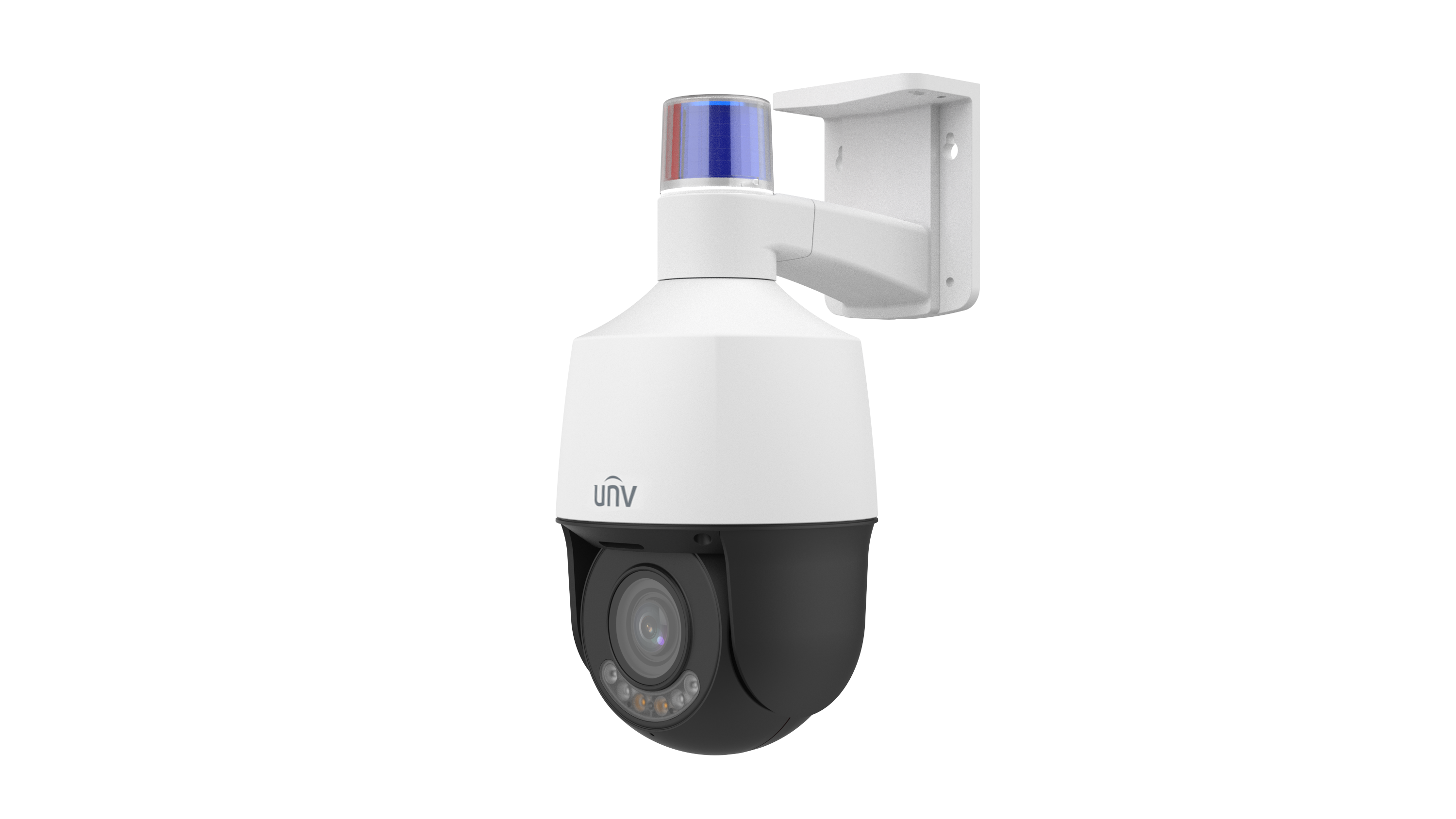

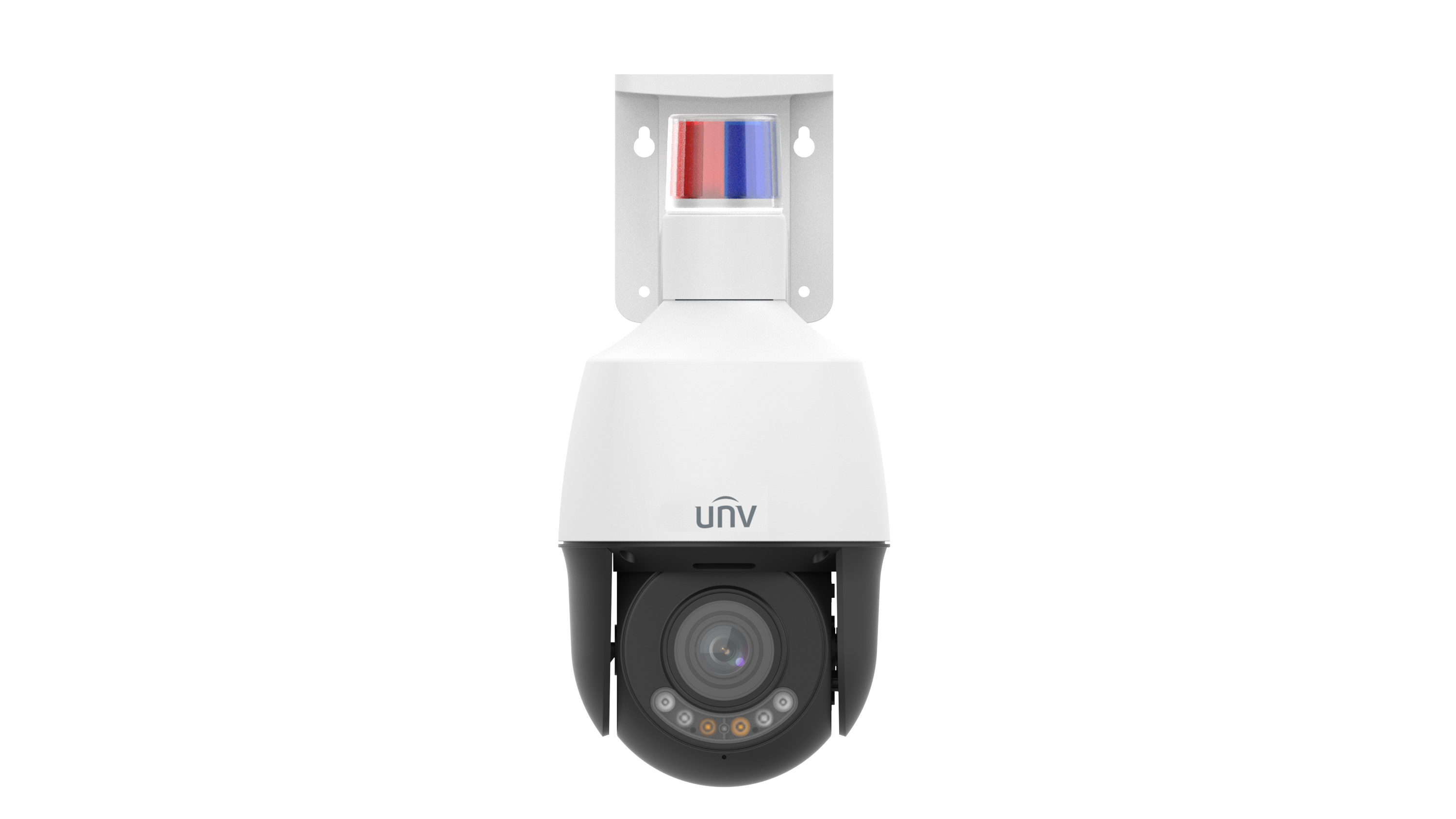

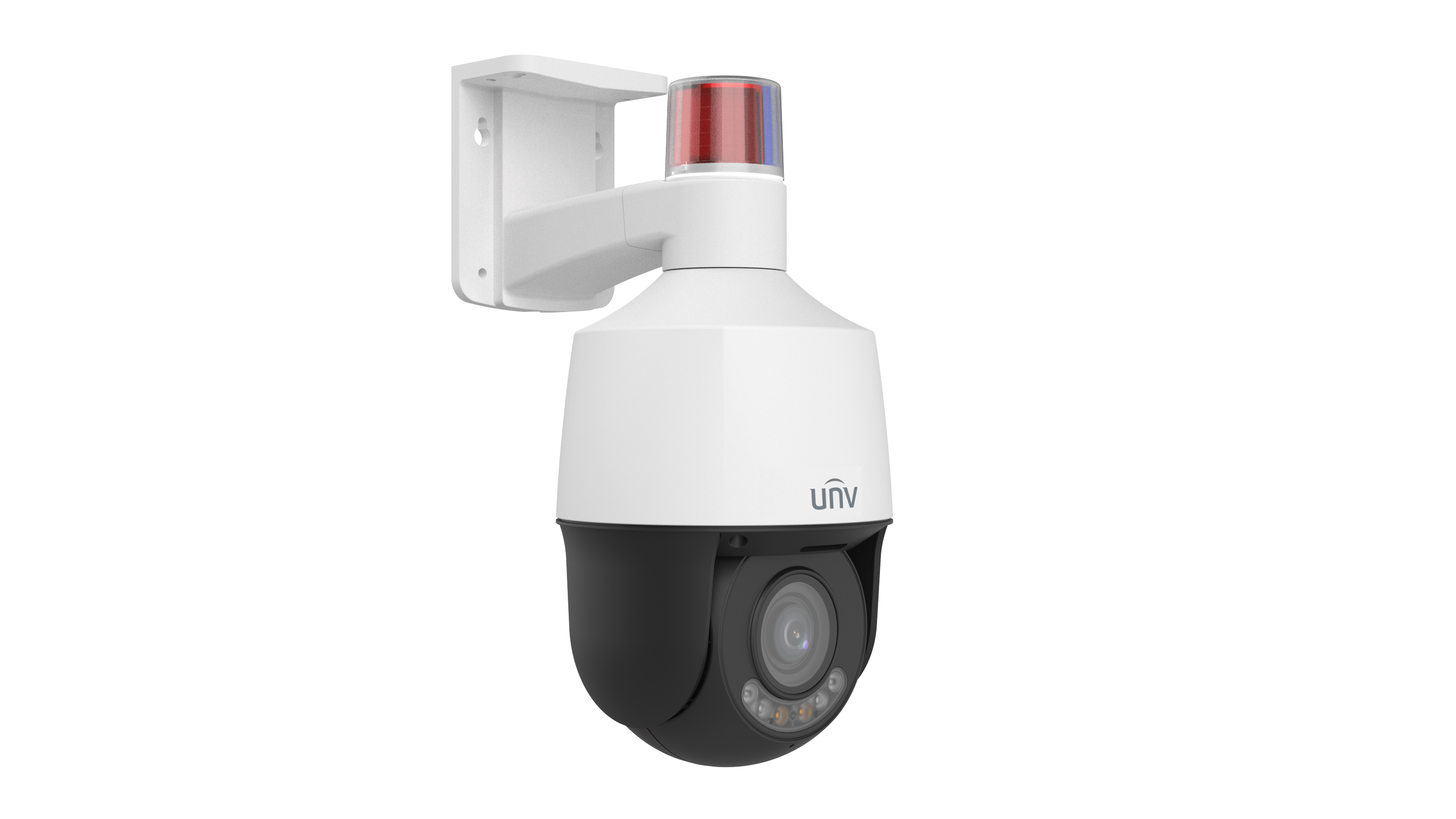

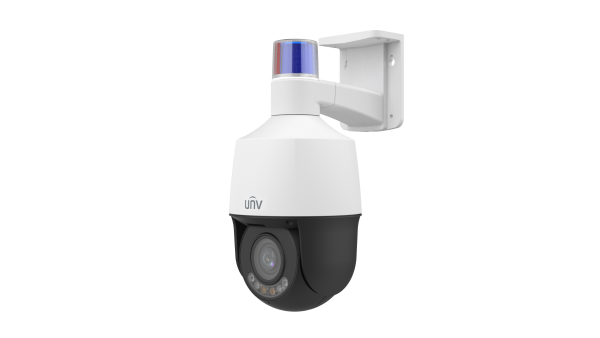

| | IPC6315LFW-AX5C-VG1 |
| Camera |
| Max Resolution | 5 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens |
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.6 |
| Field of View (H) | 106.91° to 33.55° |
| Field of View (V) | 56.45° to 18.99° |
| Field of View (D) | 123.1° to 42.1° |
| DORI |
| DORI Distance (Detect) | 72.0 m to 229.5 m (236.2 ft. to 753.0 ft) |
| DORI Distance (Observe) | 28.8 m to 91.8 m (94.5 ft. to 301.2 ft) |
| DORI Distance (Recognize) | 14.4 m to 45.9 m (47.2 ft. to 150.6 ft) |
| DORI Distance (Identify) | 7.2 m to 23.0 m (23.6 ft. to 75.5 ft) |
| Video |
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5 MP (2880 × 1620), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
| Intelligent |
| Auto Tracking | Support, target filtering: human only |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) |
| Image |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Illuminator |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| Illumination Distance (Warm Light) | 15 m (49.2 ft) |
| Events |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| PTZ |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| Pan Speed | 1°/s to 40°/s |
| Tilt Speed | 1°/s to 30°/s |
| Interface |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) |
| Safety | CE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power | DC 12 V (±25%), PoE (IEEE 802.3at) |
| Power Consumption | 18 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 133 mm × 185 mm × 286 mm (Ø 5.2" × 7.3" × 11.3" ) (L × W × H) |
| Weight | 788 g (1.74 lb) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 2 KV |
| Reset Button | Support |
| Heater | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable |
| P/N | Support |
