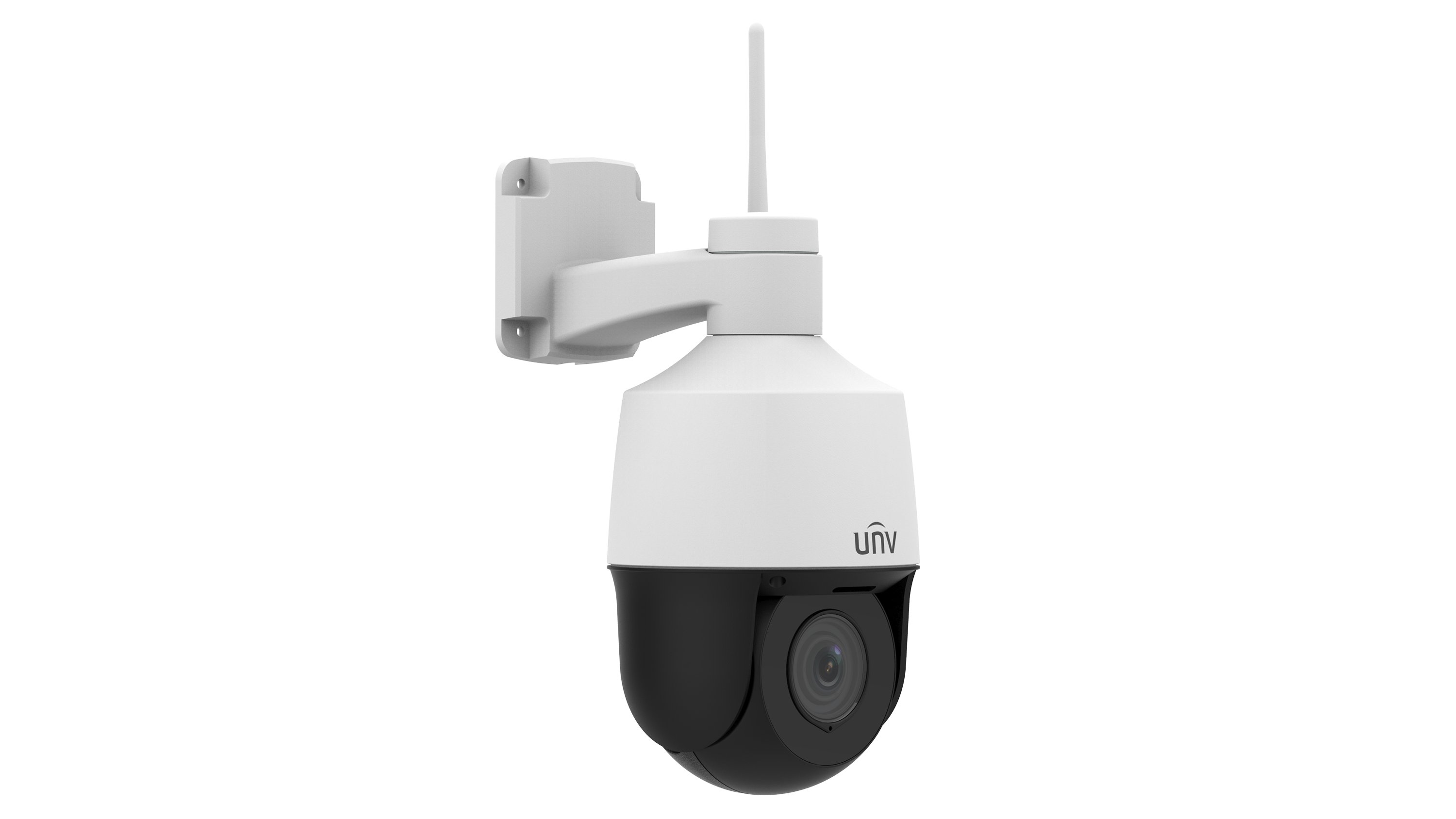

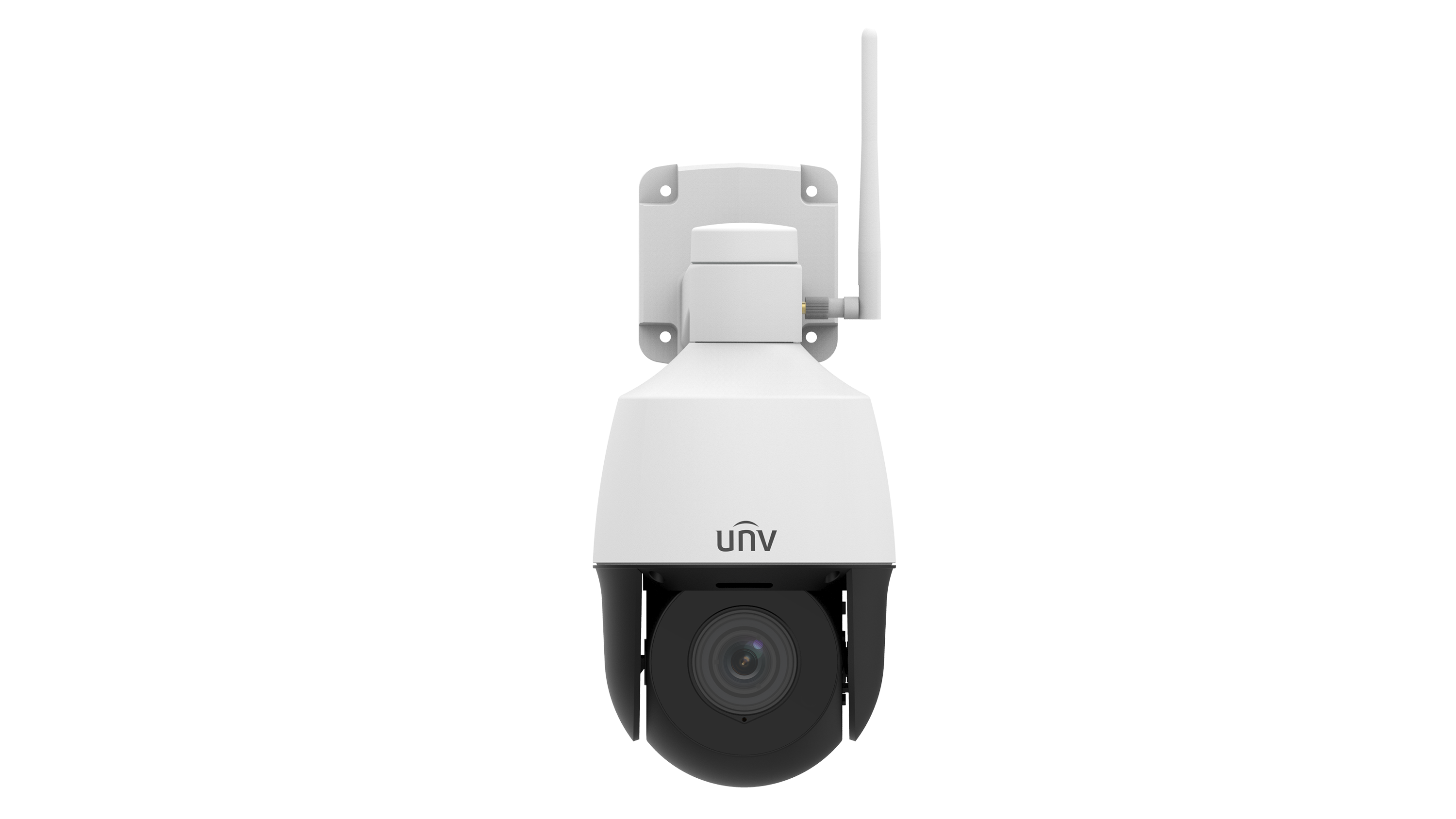

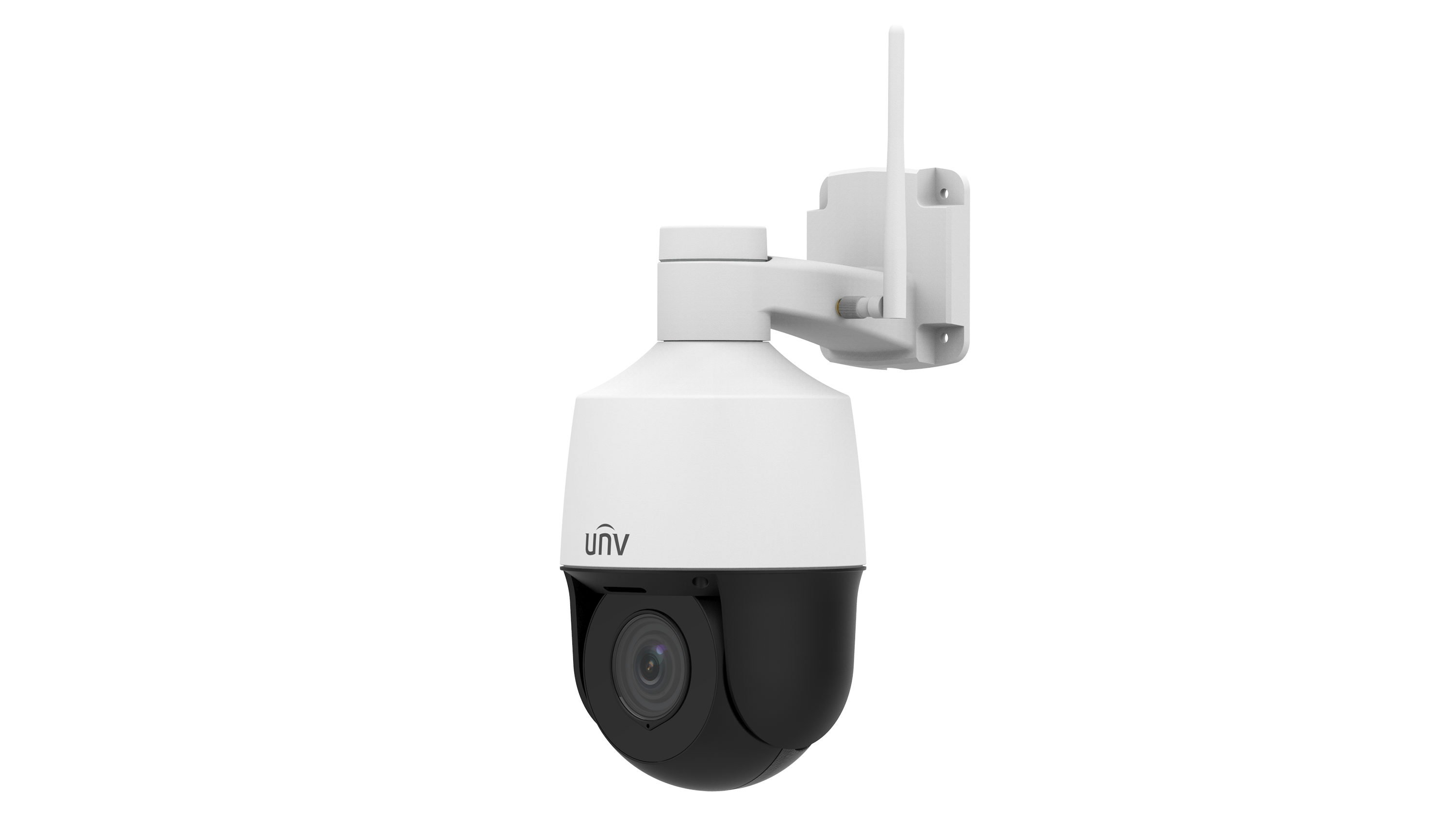

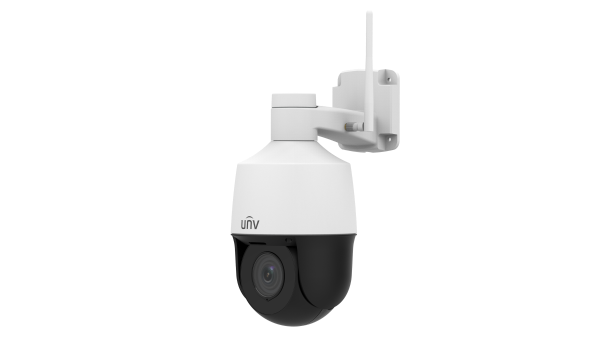

| IPC6312LR-AX4W-VG | ||||||||
| Camera | ||||||||
| Sensor | 1/2.7" CMOS | |||||||
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 to 12 mm | |||||||
| Optical Zoom | 4X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 105.2° to 29.32° | |||||||
| Field of View (V) | 52.6° to 16.38° | |||||||
| Field of View (D) | 108.7° to 33.3° | |||||||
| Wi-Fi | ||||||||
| Wireless Standards | IEEE802.11b/g/n | |||||||
| Frequency Range | 2.4 GHz to 2.4835 GHz | |||||||
| Channel Bandwidth | 20 MHz Support | |||||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | |||||||
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||||
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps | |||||||
| Receive Sensitivity | 802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical) | |||||||
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8 to 12 mm | |||||||
| DORI Distance (Detect) | 43.4 m to 186.2 m (142.4 ft. to 610.9 ft) | |||||||
| DORI Distance (Observe) | 17.4 m to 74.5 m (57.1 ft. to 244.4 ft) | |||||||
| DORI Distance (Recognize) | 8.7 m to 37.2 m (28.5 ft. to 122.1 ft) | |||||||
| DORI Distance (Identify) | 4.3 m to 18.6 m (14.1 ft. to 61.0 ft) | |||||||
| Illuminator | ||||||||
| IR On/Off Control | Auto/Manual | |||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Privacy Mask | Up to 4 areas | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| OSD | Up to 8 OSDs | |||||||
| Certification | ||||||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN301 489-1 V2.2.3; EN 301 489-17 V3.2.4; EN 300 328 V2.2.2; EN IEC 62311:2020) | |||||||
| EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020 ) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| Intelligent | ||||||||
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection | |||||||
| Auto Tracking | Support, target filtering: human only | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital defog | |||||||
| Heatwave Reduction | N/A | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| PTZ | ||||||||
| Number of Presets | 256 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 120 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Pan Range | 0° to 345° | |||||||
| Pan Speed | 1°/s to 50°/s | |||||||
| Tilt Range | -10° to 110° | |||||||
| Tilt Speed | 1°/s to 40°/s | |||||||
| Interface | ||||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| General | ||||||||
| Power | DC 12 V (±25%) | |||||||
| Power Consumption | Max. 12 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 133 mm × 185 mm × 276 mm (5.2" × 7.3" × 10.9") (L × W × H) | |||||||
| Weight | 0.86 kg (1.90 lb) | |||||||
| Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 2 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
