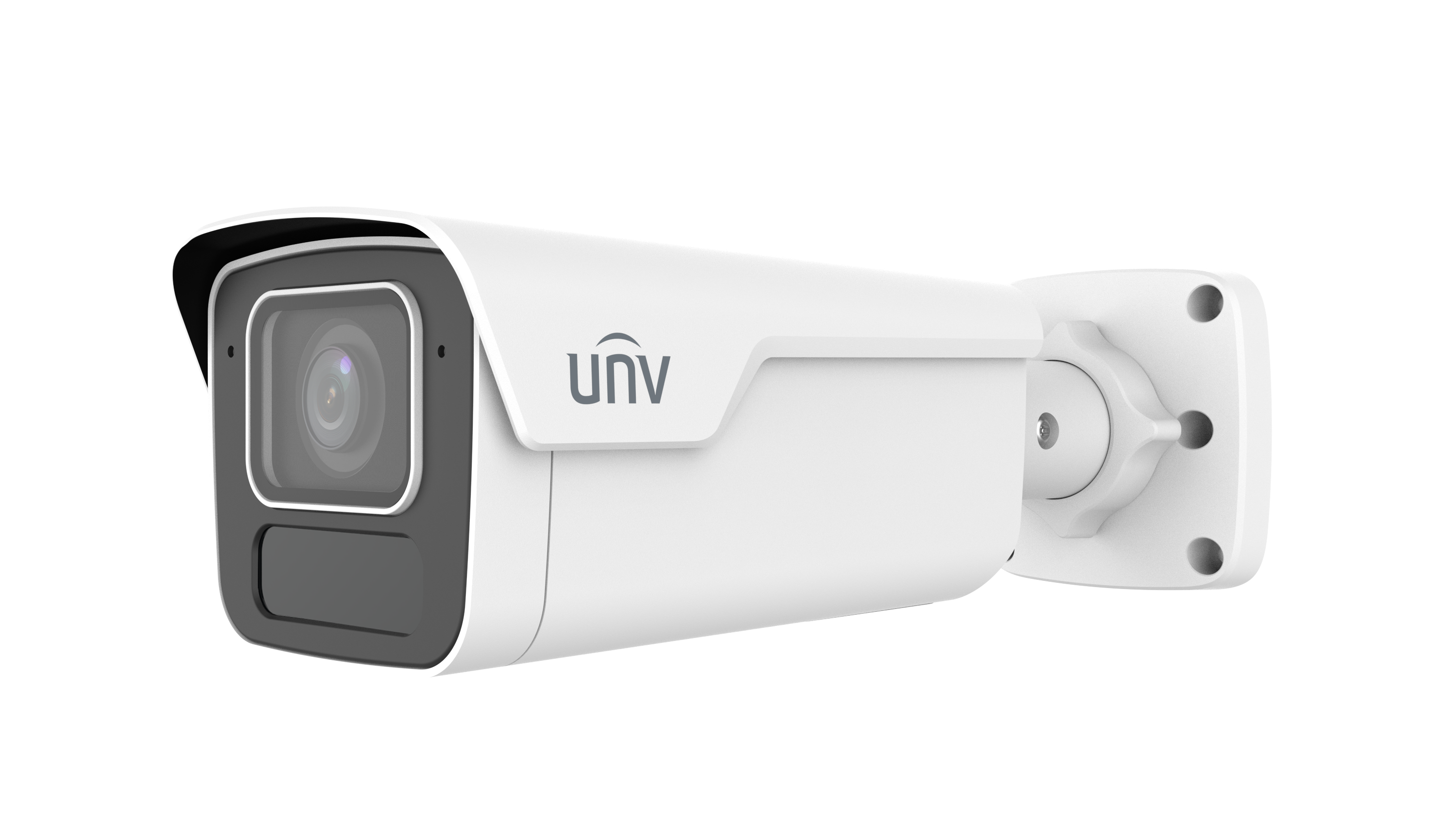

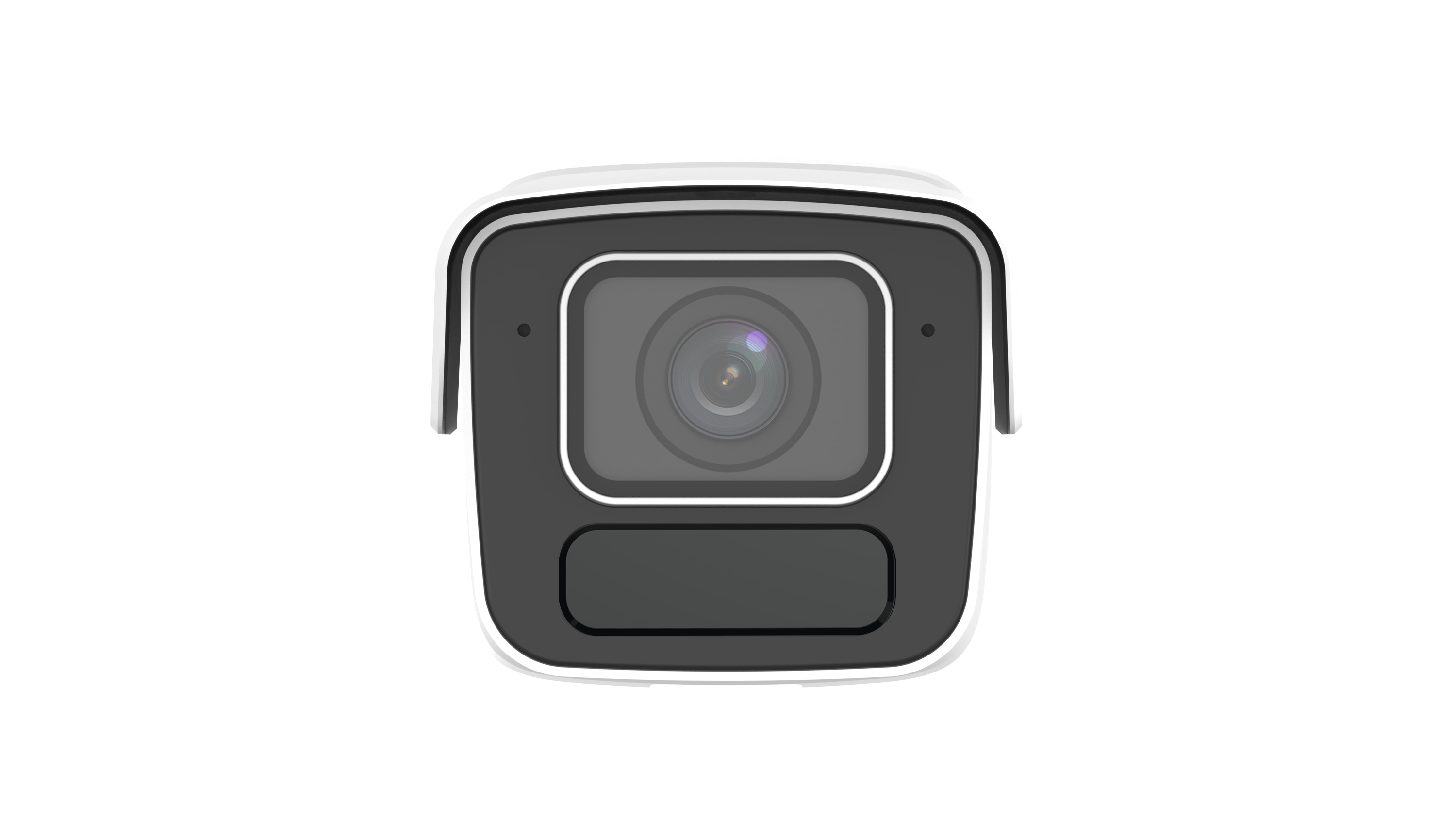

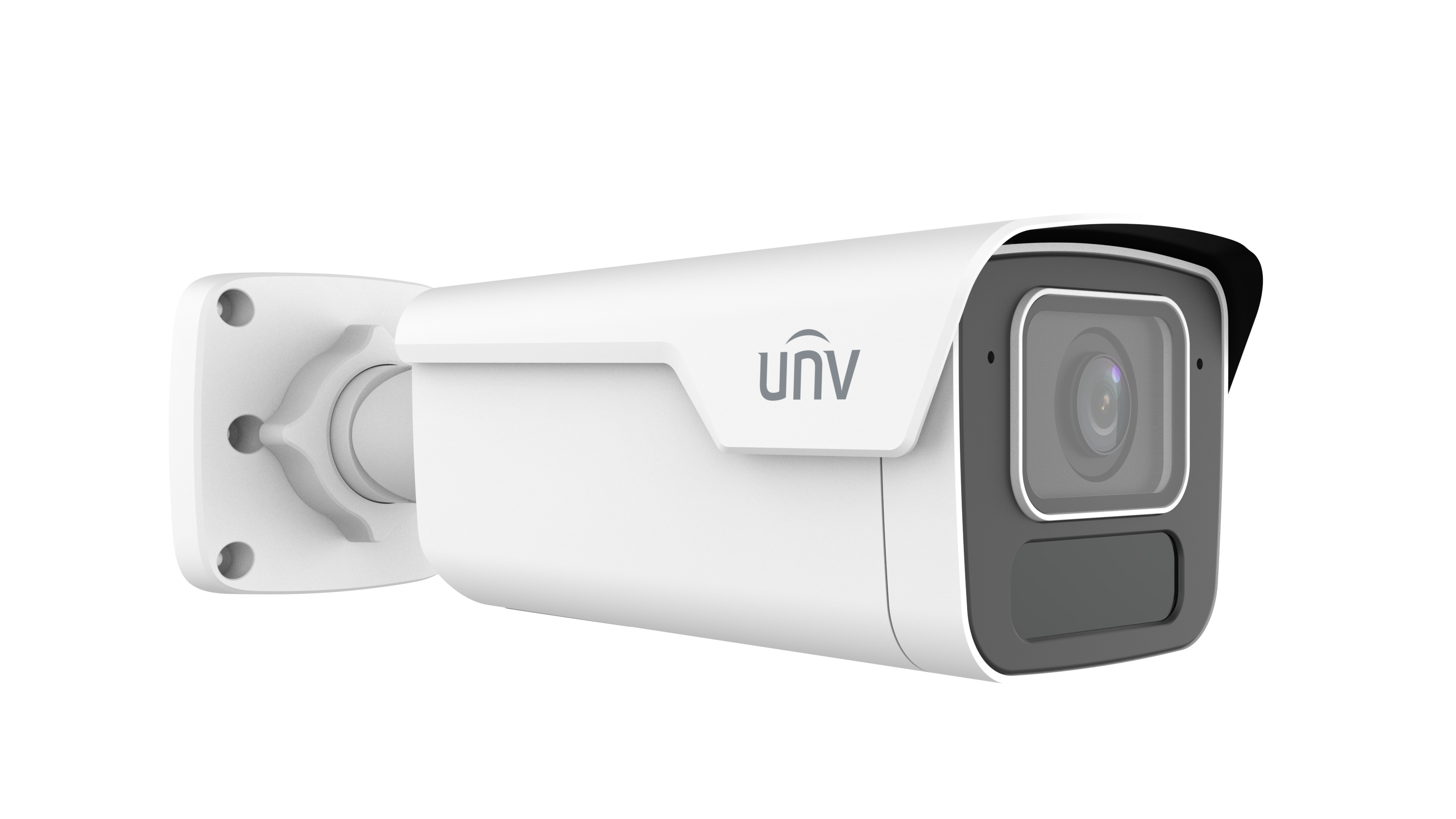

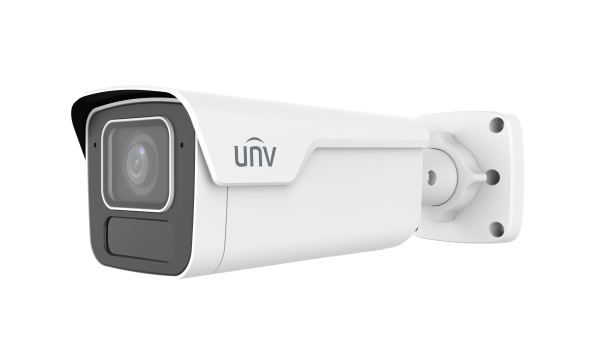

| IPC2B24SA-AHDZK-PI-I1 |
Camera |
Max Resolution | 4 MP |
Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 to 1/100000 s |
WDR | 130 dB |
Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
S/N | >56 dB |
Lens |
Focal Length | 2.7 to 13.5 mm |
Optical Zoom | 5X |
Iris | F1.6 |
Field of View (H) | 98.7° to 31° |
Field of View (V) | 52.6° to 18° |
Field of View (D) | 116.5° to 35.8° |
Iris Type | P-iris |
DORI |
DORI Distance (Lens) | 2.7 to 13.5 mm |
DORI Distance (Detect) | 74.3 m to 229.5 m (243.6 ft. to 753.0 ft) |
DORI Distance (Observe) | 29.7 m to 91.8 m (97.4 ft. to 301.2 ft) |
DORI Distance (Recognize) | 14.9 m to 45.9 m (48.7 ft. to 150.6 ft) |
DORI Distance (Identify) | 7.4 m to 23.0 m (24.3 ft. to 75.5 ft) |
Illuminator |
Illumination Distance (IR) | 80 m (262.5 ft) |
IR On/Off Control | Auto/Manual |
Video |
Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 60 fps |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
Video Bit Rate | 128 Kbps to 16 Mbps |
U-code | Support |
ROI | Up to 8 areas |
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
Video Stream | Triple streams |
OSD | Up to 10 OSDs |
Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
Image |
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Flip | Flip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise |
HLC | Support |
BLC | Support |
Defog | Digital defog |
Intelligent |
People Counting | Support people flow counting and crowd density monitoring |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Events |
Basic Detection | Motion detection, Audio detection, Tampering alarm, Ultra motion detection |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
Audio |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 128 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 16 kHz |
Storage |
Edge Storage | MicroSD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network |
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | UNV-Link, UNV-Link Pro, EZStation |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
Interface |
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Alarm I/O | 1/1 |
Serial Port | 1 × RS485 |
Built-in Mic | Built-in dual-mic |
Built-in Speaker | N/A |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Certification |
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B) |
Safety | CE LVD (EN IEC 62368-1) UL (UL 62368-1) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
General |
Power | DC 12 V (±25%), PoE (IEEE 802.3af) |
Power Consumption | Max. 10 W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | 268 mm × 96 mm × 86 mm (10.5" × 3.7" × 3.4") (L × W × H) |
Weight | 1 kg (2.2 lb) |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
Surge Protection | 6 KV |
Reset Button | Support |
Heater | N/A |
