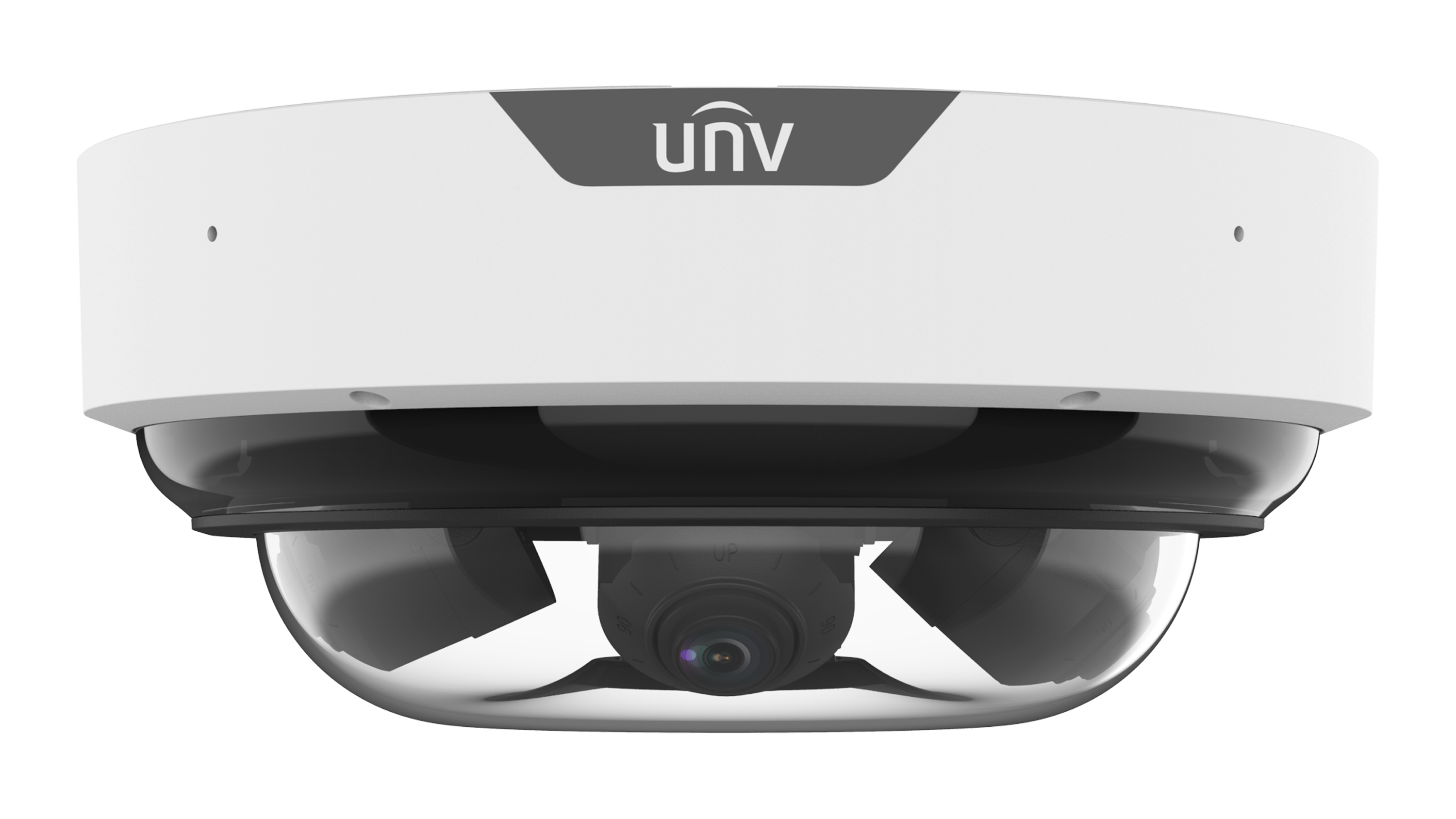

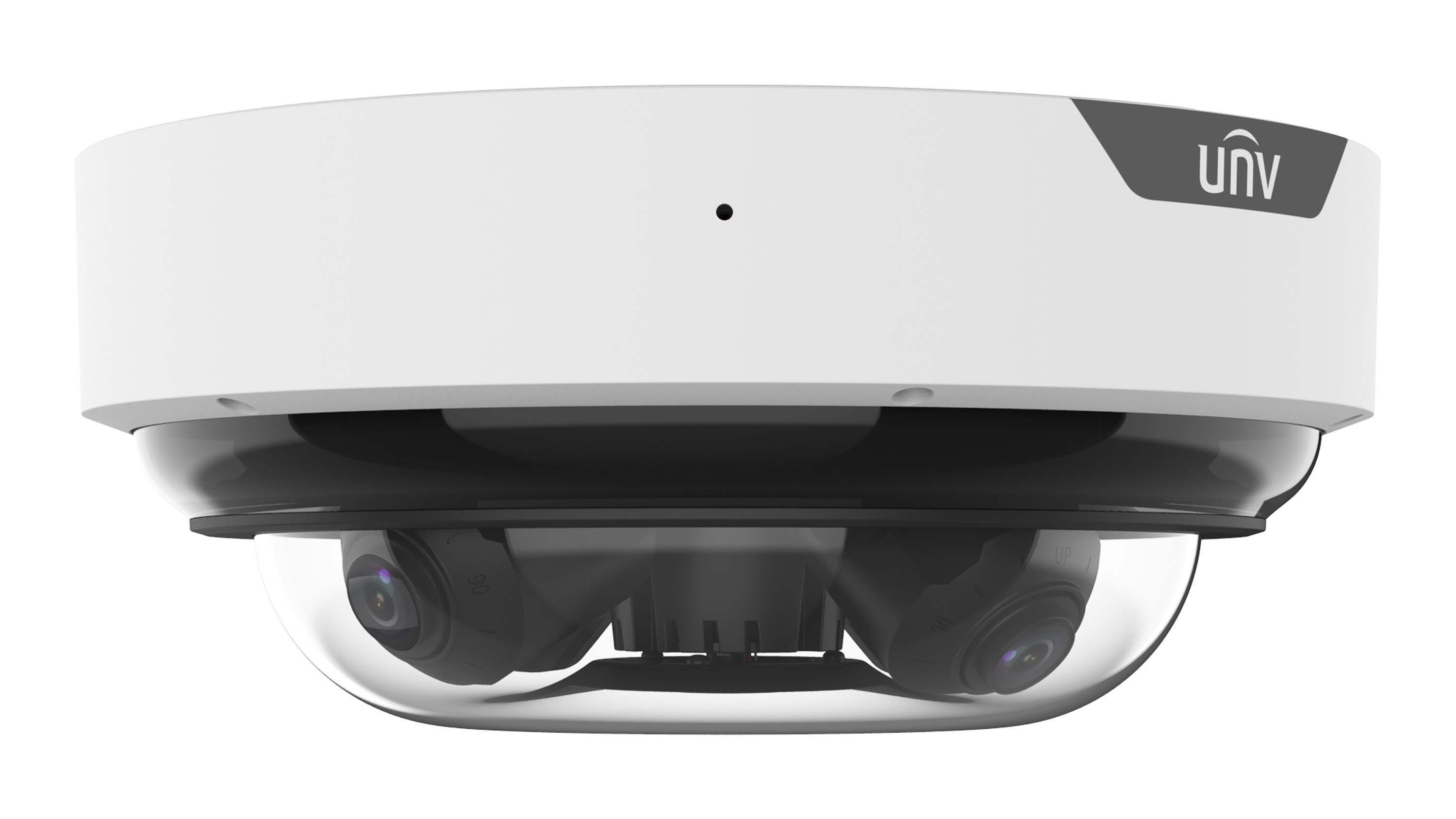

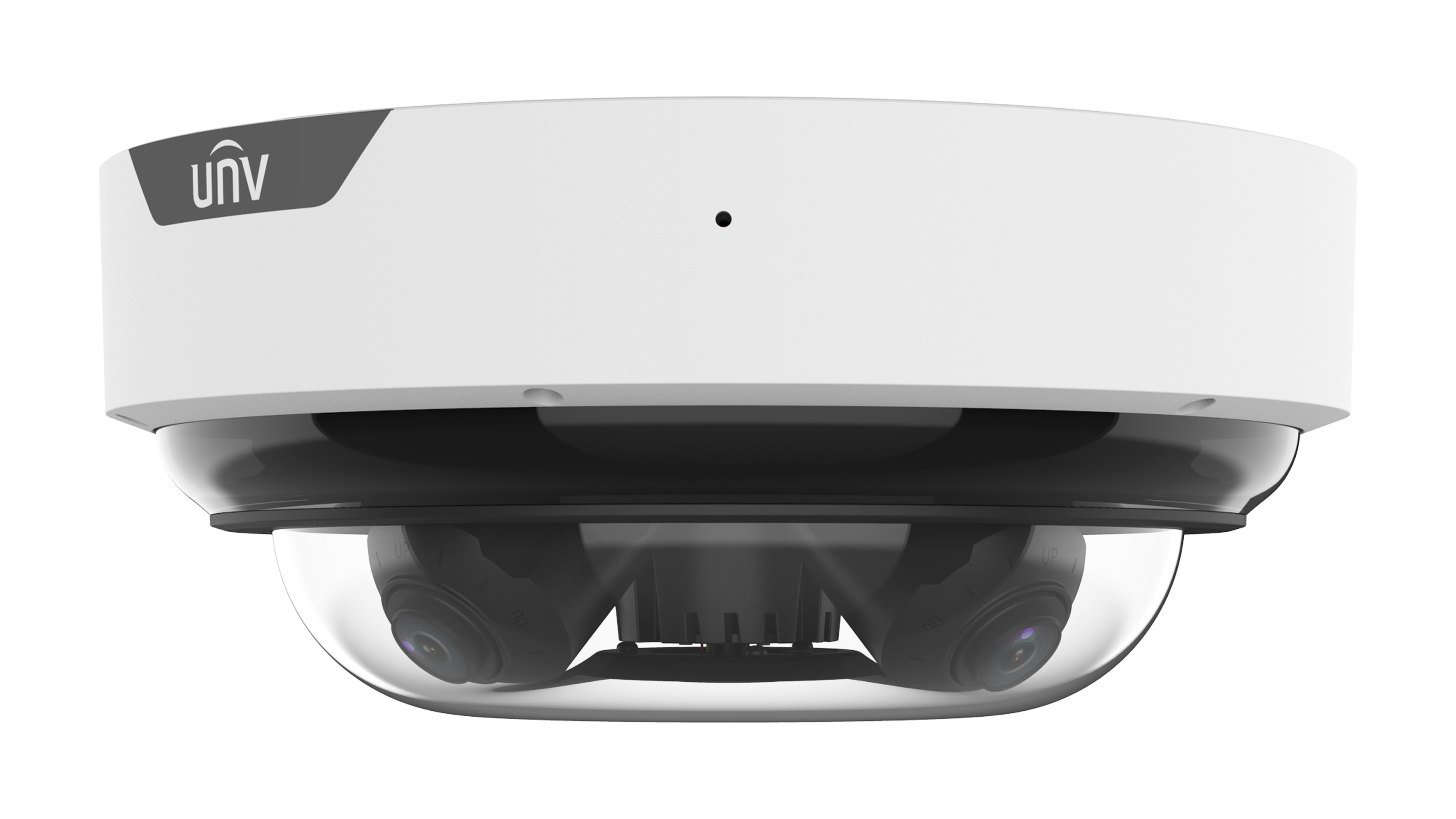

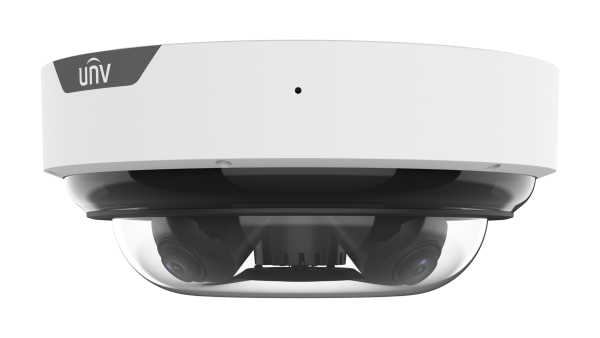

IPC8645EA-ADZKM-I1 | ||||||||
Camera | ||||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
WDR | 130 dB | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 65°, Rotate: 0° ~ 355° | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 2.7 to 13.5 mm | |||||||
Optical Zoom | 5X | |||||||
Iris | F1.2 * 4 | |||||||
Field of View (H) | (W)110.3°~(T)31° | |||||||
Field of View (V) | (W)57.1°~(T)17.5° | |||||||
Field of View (D) | (W)143.4°-(T)38.1° | |||||||
Iris Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Detect) | 70.9m~247.5m(232.5ft~812.0ft) | |||||||
DORI Distance (Observe) | 28.4m~99.0m(93.0ft~324.8ft) | |||||||
DORI Distance (Recognize) | 14.2m~49.5m(46.5ft~162.4ft) | |||||||
DORI Distance (Identify) | 7.1m~24.8m(23.3ft~81.2ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Intelligent | ||||||||
Exception Detection | Scene change, Defocus detection, Object removed, Object Left Behind | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
People Counting | Support people flow counting and crowd density monitoring | |||||||
Events | ||||||||
Motion Detection | Support | |||||||
Tampering Detection | Support | |||||||
Audio Detection | Support | |||||||
UMD (Ultra Motion Detection) | Support | |||||||
Image | ||||||||
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
Defog | Digital defog | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate-Main Stream | Channel * 4 5MP (2880*1620), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | |||||||
Frame Rate-Sub Stream | Channel * 4 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | |||||||
Frame Rate-Third Stream | Channel * 4 D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | |||||||
Frame Rate Recommendation | Channel * 4 2880*1620@30fps+1080P@30fps+D1@30fps | |||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps * 4Channel | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple streams | |||||||
OSD | Up to 10 OSDs * 4 Channel | |||||||
Privacy Mask | Up to 8 * 4Channel | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Two-way Audio | Support | |||||||
Sampling Rate | 8 kHz | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 3/2 | |||||||
Built-in Mic | Support | |||||||
Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529), IK10 (IEC 62262) | |||||||
Other | ||||||||
Corridor Mode | Support | |||||||
General | ||||||||
Power | DC 24V±25%, AC 24V±25%, PoE (IEEE802.3bt) | |||||||
Built-in DC12V Output | Support | |||||||
Power Consumption | Max 31W | |||||||
Power Interface | Wires with cold-pressed terminal | |||||||
Dimensions | Φ 318 x 136.6 mm (Φ 12.52" x 5.38")(Φ x H) | |||||||
Weight | 4.77Kg(10.52lb) | |||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH | |||||||
Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: 5%~95% RH | |||||||
Surge Protection | 6 KV |
