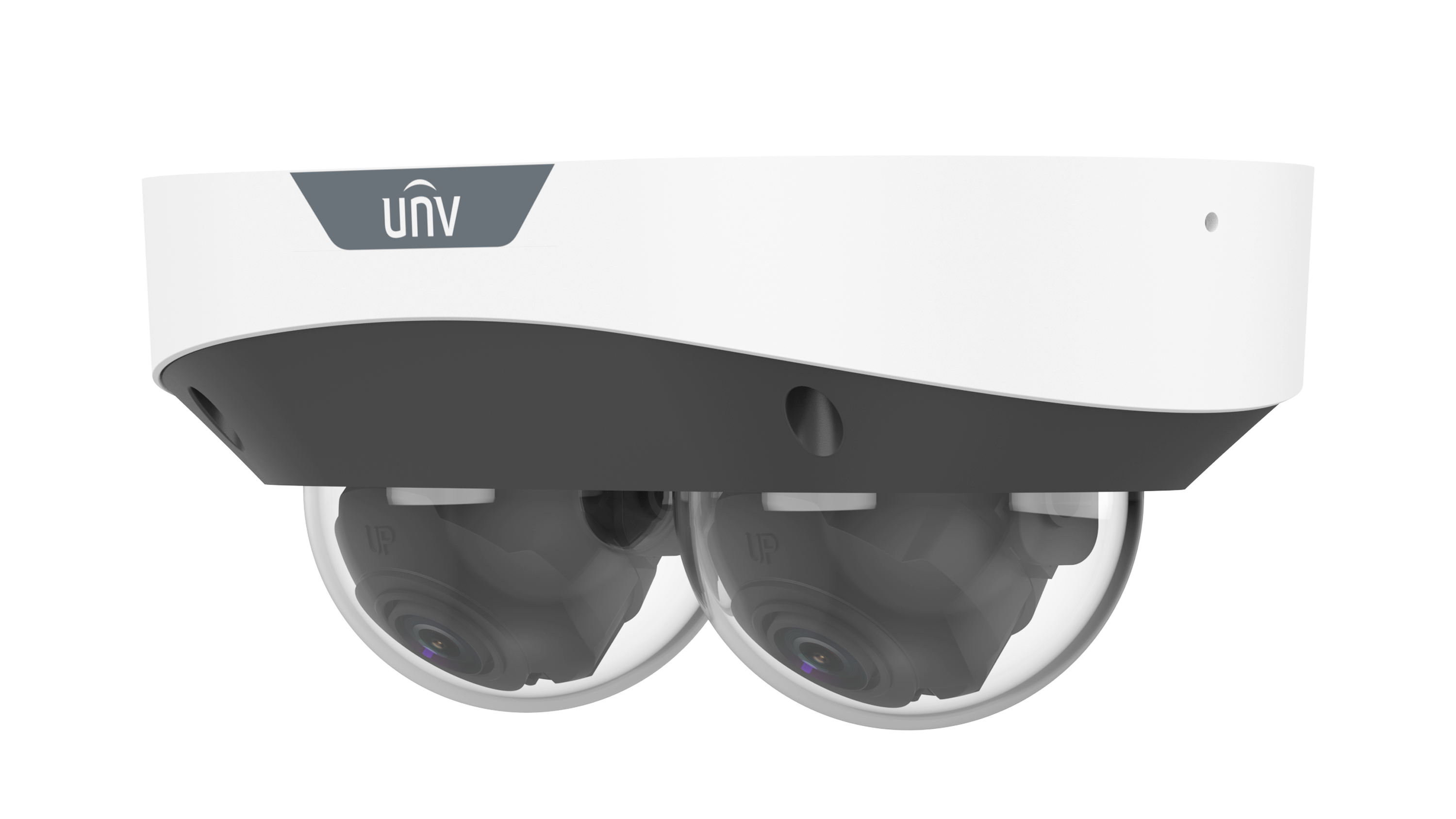

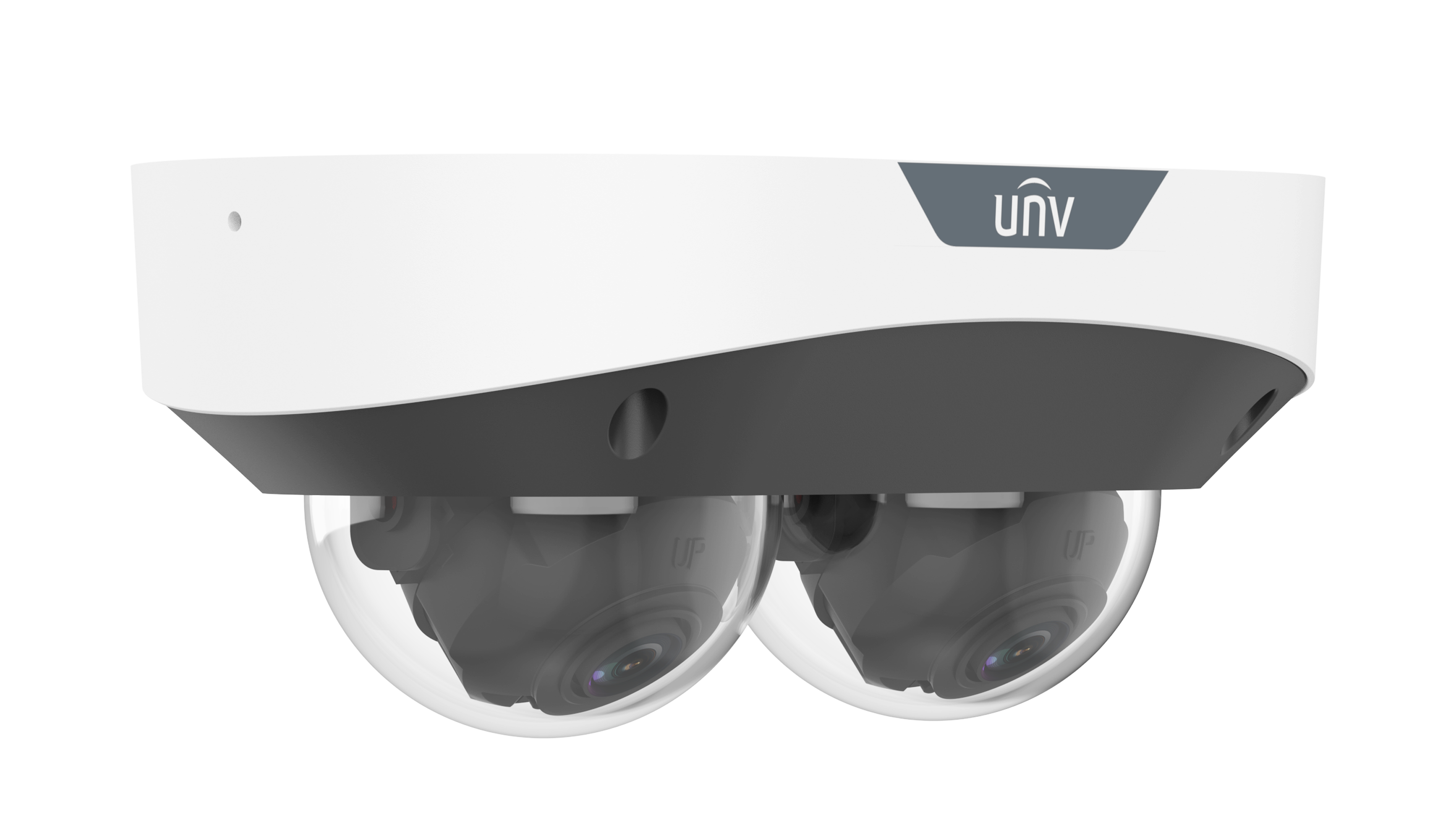

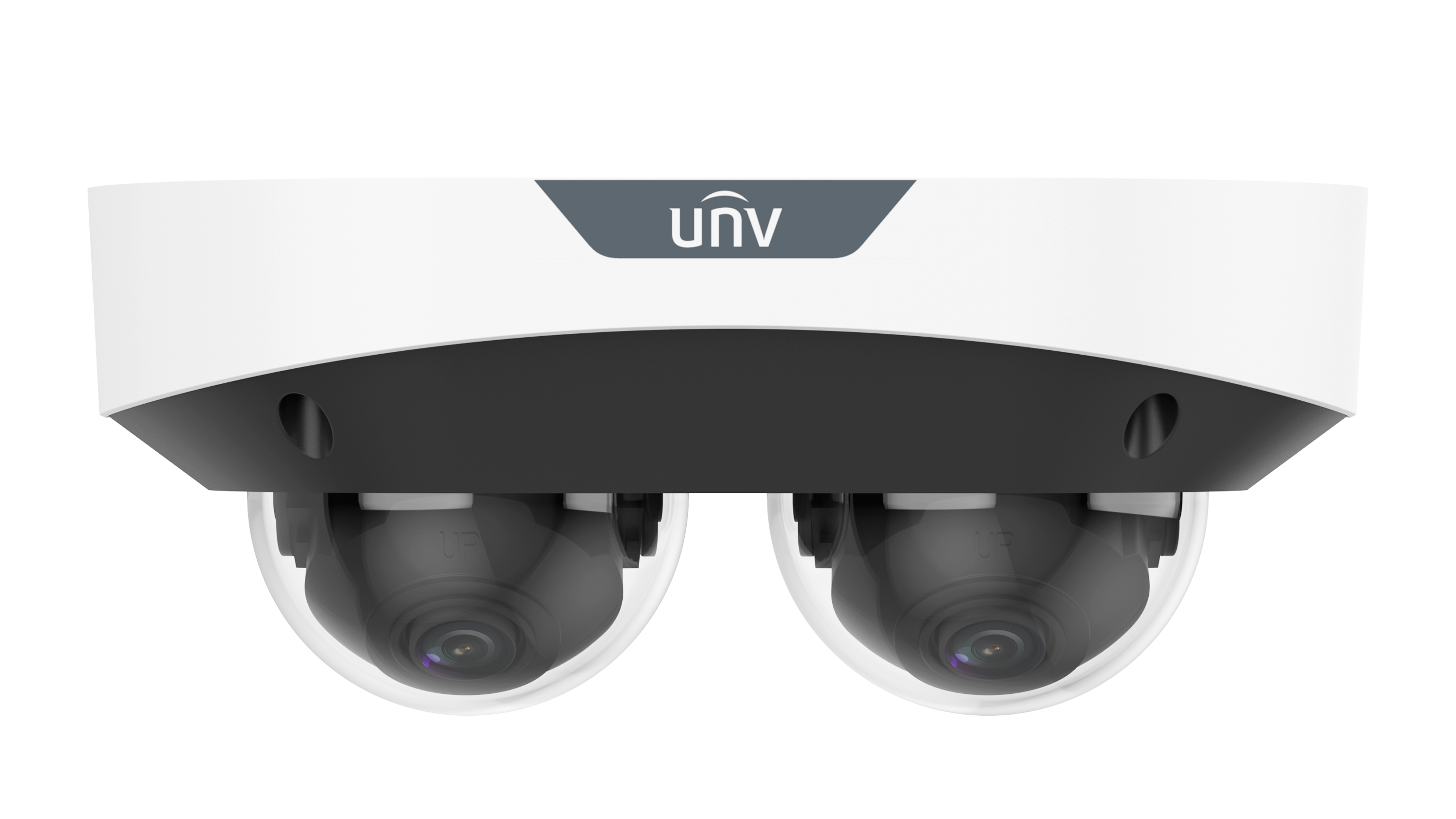

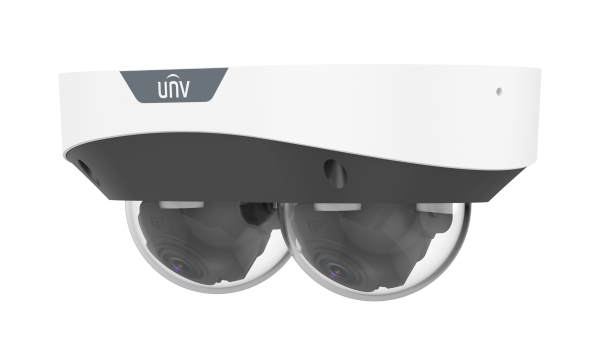

IPC3222SS-ADF40K-I1 | ||||||||
Channel | ||||||||
Camera | ||||||||
Max Resolution | 2 MP | 2 MP | ||||||
Sensor | 1/2.8" CMOS | 1/2.8" CMOS | ||||||
Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s | ||||||
Adjustment Angle | Pan: 0° to 180°, Tilt: 0° to 66°, Rotate: 0° to 346° | Pan: 0° to 180°, Tilt: 0° to 66°, Rotate: 0° to 346° | ||||||
S/N | >52 dB | >52 dB | ||||||
WDR | 130 dB | 130 dB | ||||||
Lens | ||||||||
Focal Length | 4.0 mm | 4.0 mm | ||||||
Iris | F1.6 | F1.6 | ||||||
Field of View (H) | 86.88° | 86.88° | ||||||
Field of View (V) | 44.39° | 44.39° | ||||||
Field of View (D) | 91.76° | 91.76° | ||||||
Lens Type | Fixed | Fixed | ||||||
DORI | ||||||||
DORI Distance (Lens) | 4 mm | 4 mm | ||||||
DORI Distance (Detect) | 62.1 m (203.7 ft.) | 62.1 m (203.7 ft.) | ||||||
DORI Distance (Observe) | 24.8 m (81.4 ft.) | 24.8 m (81.4 ft.) | ||||||
DORI Distance (Recognize) | 12.4 m (40.7 ft.) | 12.4 m (40.7 ft.) | ||||||
DORI Distance (Identify) | 6.2 m (20.3 ft.) | 6.2 m (20.3 ft.) | ||||||
Illuminator | ||||||||
Supplemental Light | IR | IR | ||||||
Illumination Distance (IR) | 30 m (98.4 ft.) | 30 m (98.4 ft.) | ||||||
IR On/Off Control | Auto/Manual | Auto/Manual | ||||||
Wavelength | 850 nm | 850 nm | ||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
||||||
Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
U-code | Support | Support | ||||||
OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas | Up to 4 areas | ||||||
ROI | Support | Support | ||||||
Video Stream | Triple streams | Triple streams | ||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
Smart IR | Support | Support | ||||||
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||||||
Dewarping | N/A | N/A | ||||||
HLC | Support | Support | ||||||
BLC | Support | Support | ||||||
Defog | Digital defog | Digital defog | ||||||
Image Stabilization | N/A | N/A | ||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
Statistical Analysis | N/A | N/A | ||||||
Events | ||||||||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | ||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
Audio Bitrate | 64 Kbps | 64 Kbps | ||||||
Two-way Audio | Support | Support | ||||||
Suppression | Support | Support | ||||||
Sampling Rate | 8 kHz | 8 kHz | ||||||
Storage | ||||||||
Edge Storage | MicroSD, up to 512 GB | MicroSD, up to 512 GB | ||||||
Network Storage | ANR, NAS (NFS) | ANR, NAS (NFS) | ||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||||
Client | UNV-Link, UNV-Link Pro, EZStation | UNV-Link, UNV-Link Pro, EZStation | ||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||||||
Alarm I/O | 1/1 | 1/1 | ||||||
Serial Port | N/A | N/A | ||||||
Built-in Mic | Built-in two mics | Built-in two mics | ||||||
Built-in Speaker | N/A | N/A | ||||||
WIFI | N/A | N/A | ||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||||||
Video Output | N/A | N/A | ||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
||||||
Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
IP67 (IEC 60529) IK10 (IEC 62262) |
||||||
General | ||||||||
Power | DC 12 V±25%, PoE (IEEE 802.3af) | DC 12 V±25%, PoE (IEEE 802.3af) | ||||||
Power Consumption | Max. 8.2 W | Max. 8.2 W | ||||||
Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug | ||||||
Dimensions | 176 mm × 104 mm × 72 mm (6.9" × 4.1" × 2.8") (L × W × H) | 176 mm × 104 mm × 72 mm (6.9" × 4.1" × 2.8") (L × W × H) | ||||||
Weight | 0.62 kg (1.37 lb.) | 0.62 kg (1.37 lb.) | ||||||
Material | Metal | Metal | ||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Surge Protection | 4 KV | 4 KV | ||||||
Reset Button | Support | Support | ||||||
Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
