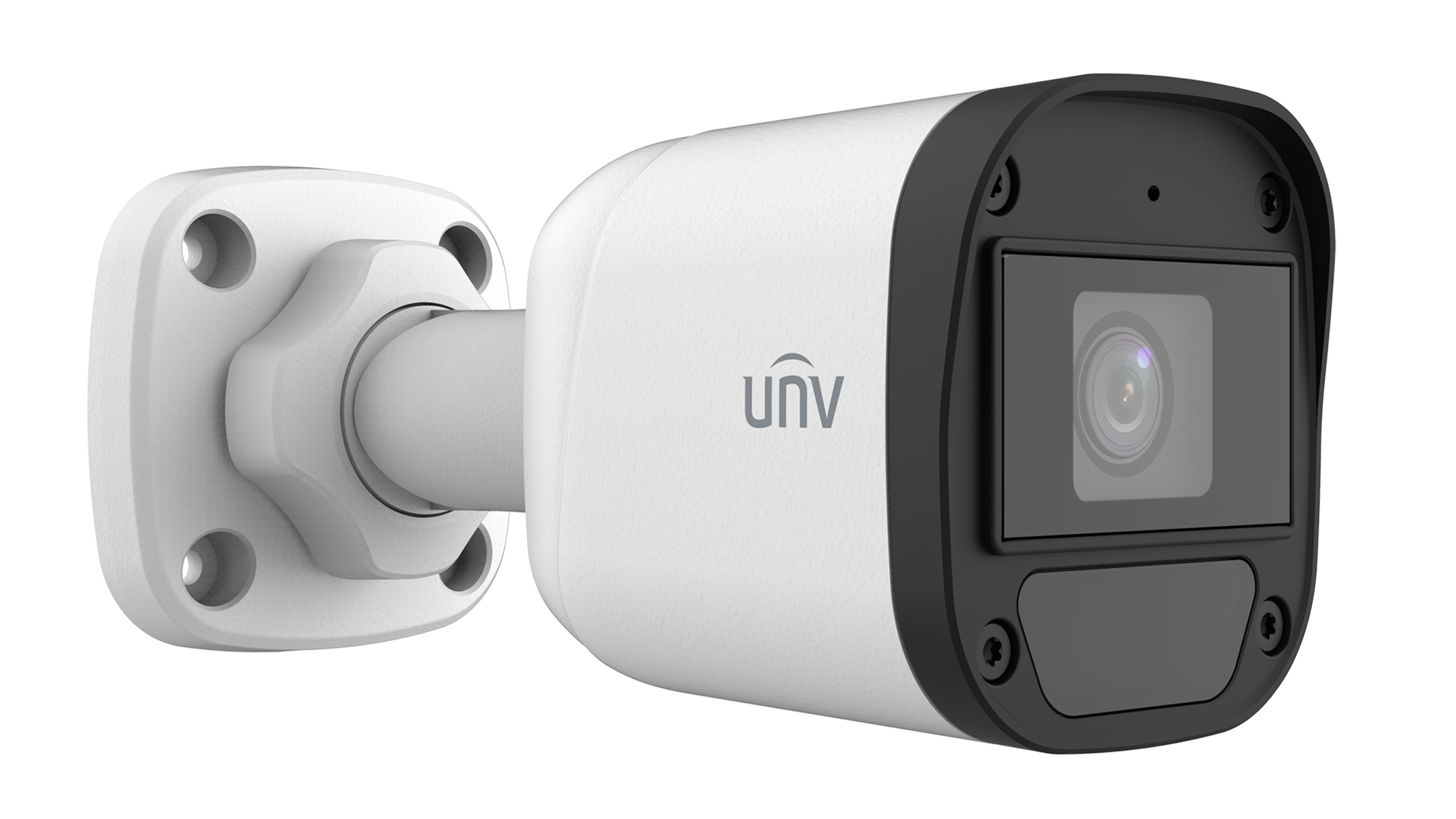

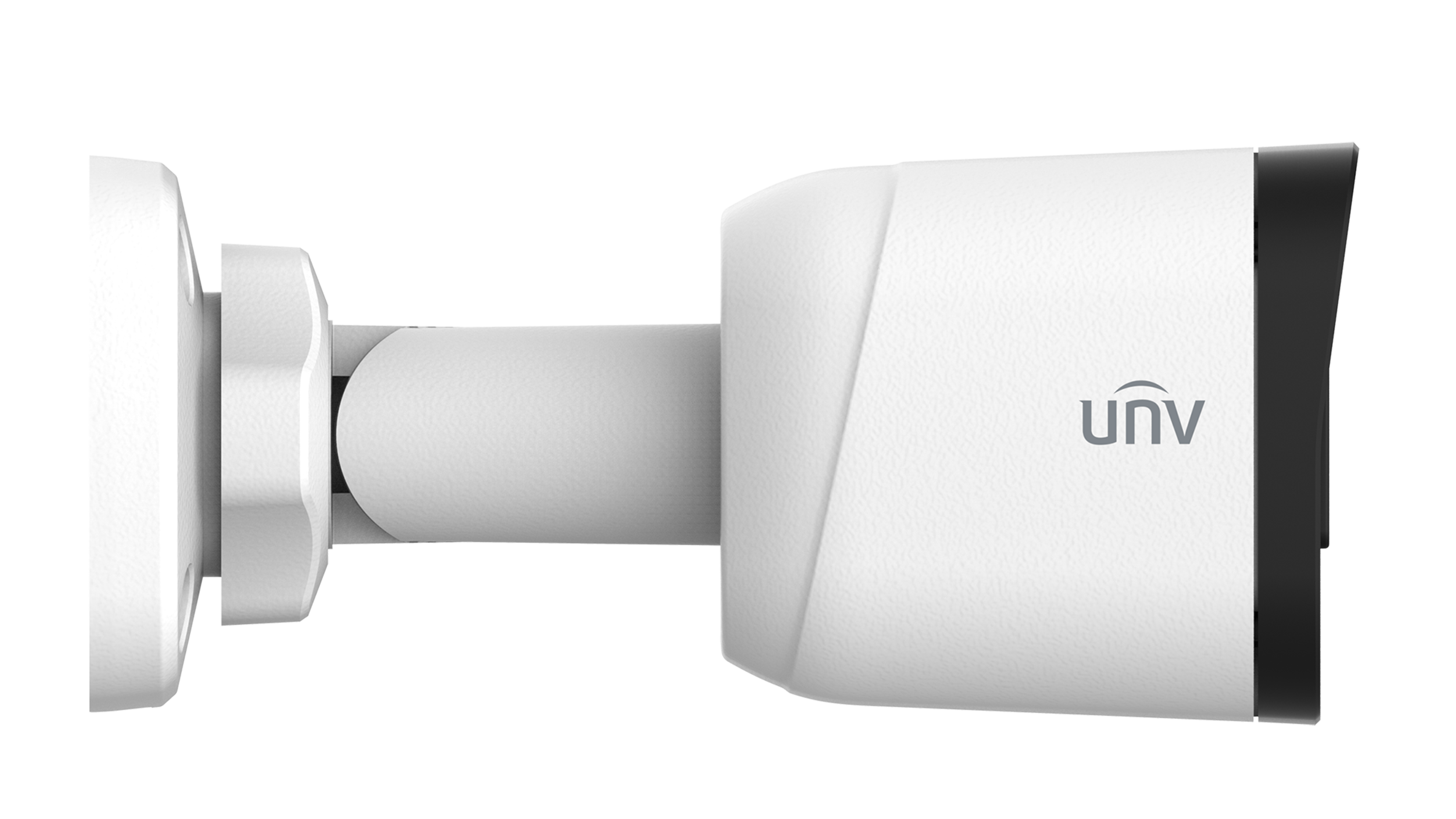

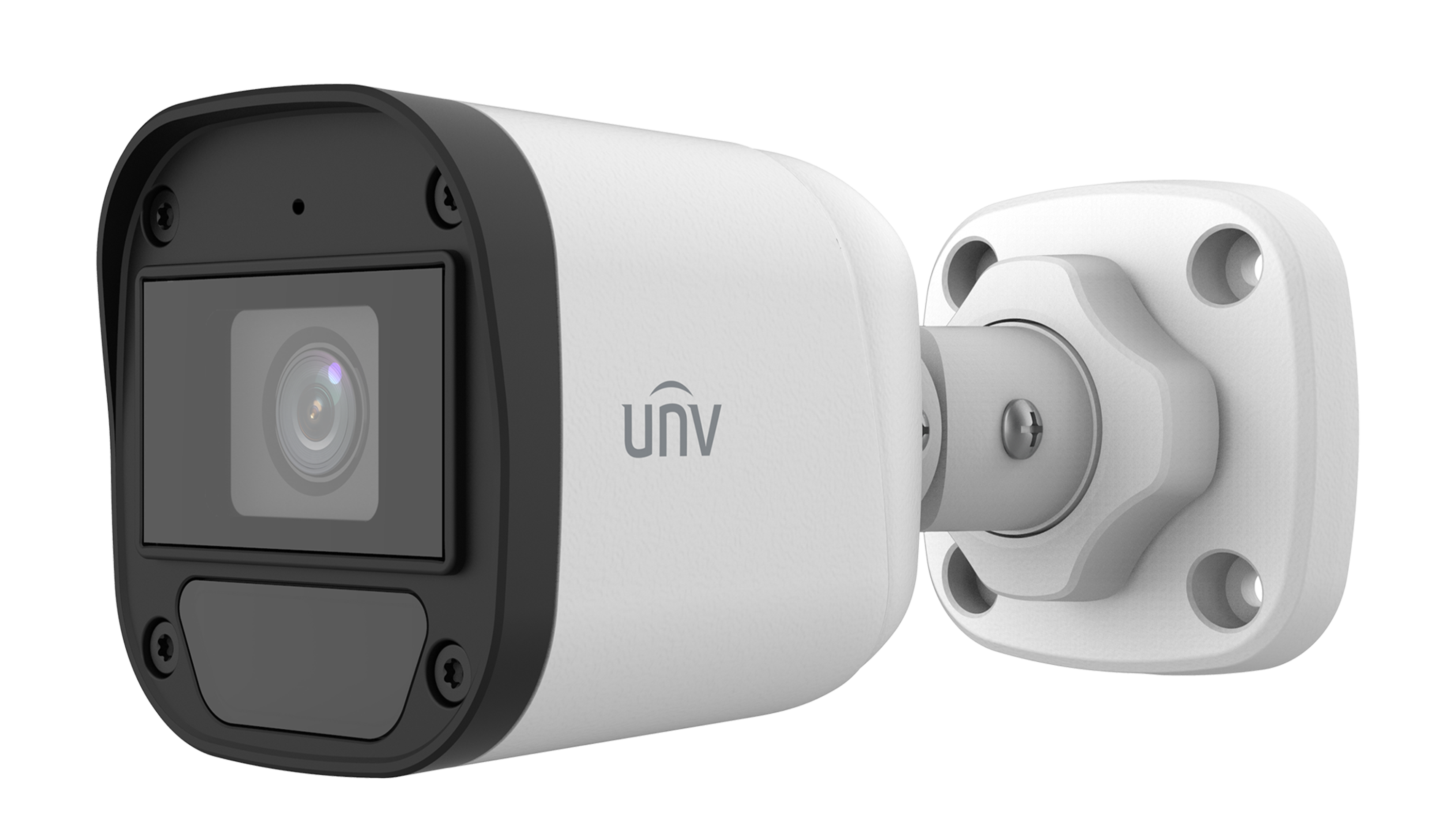

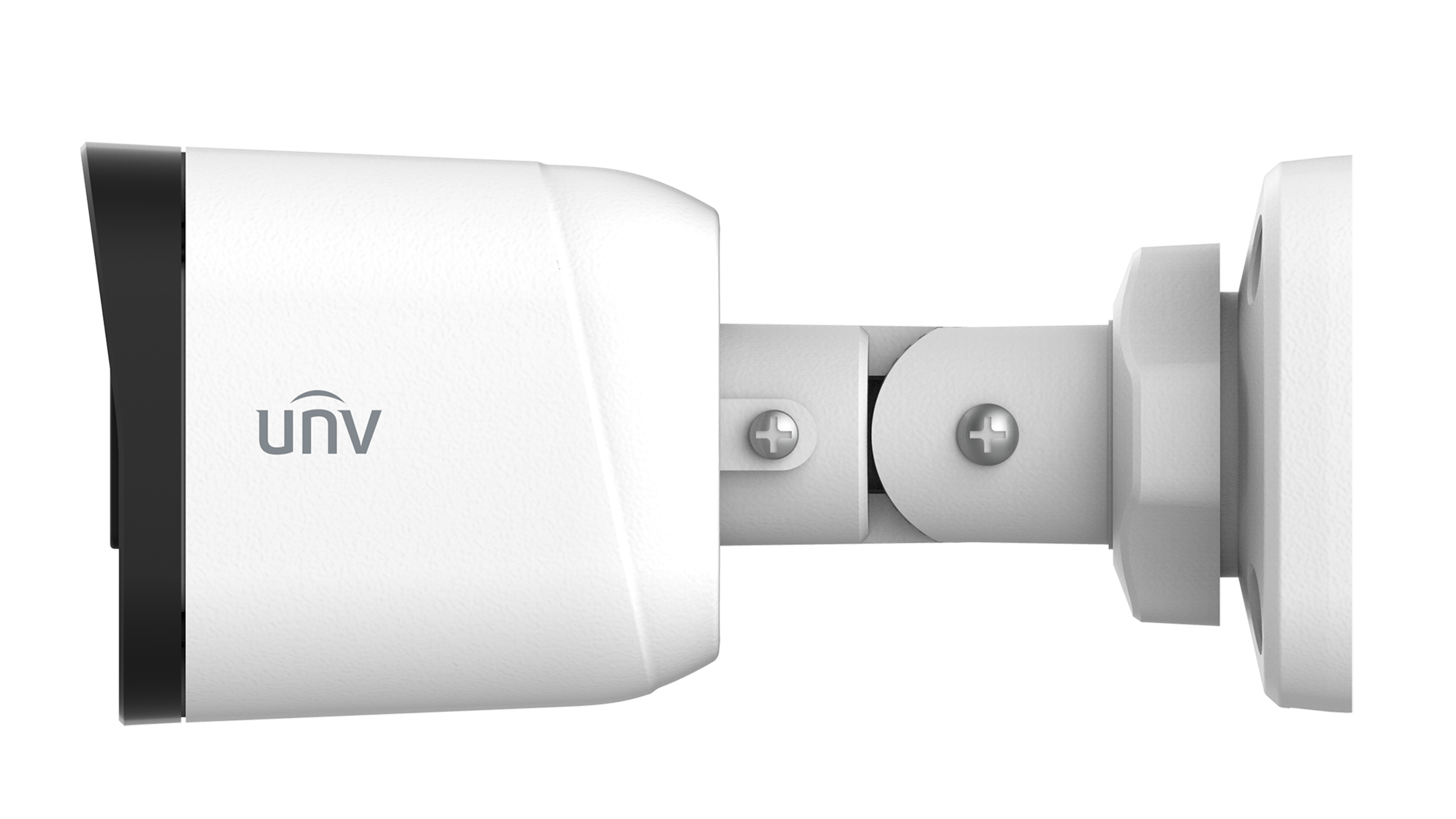

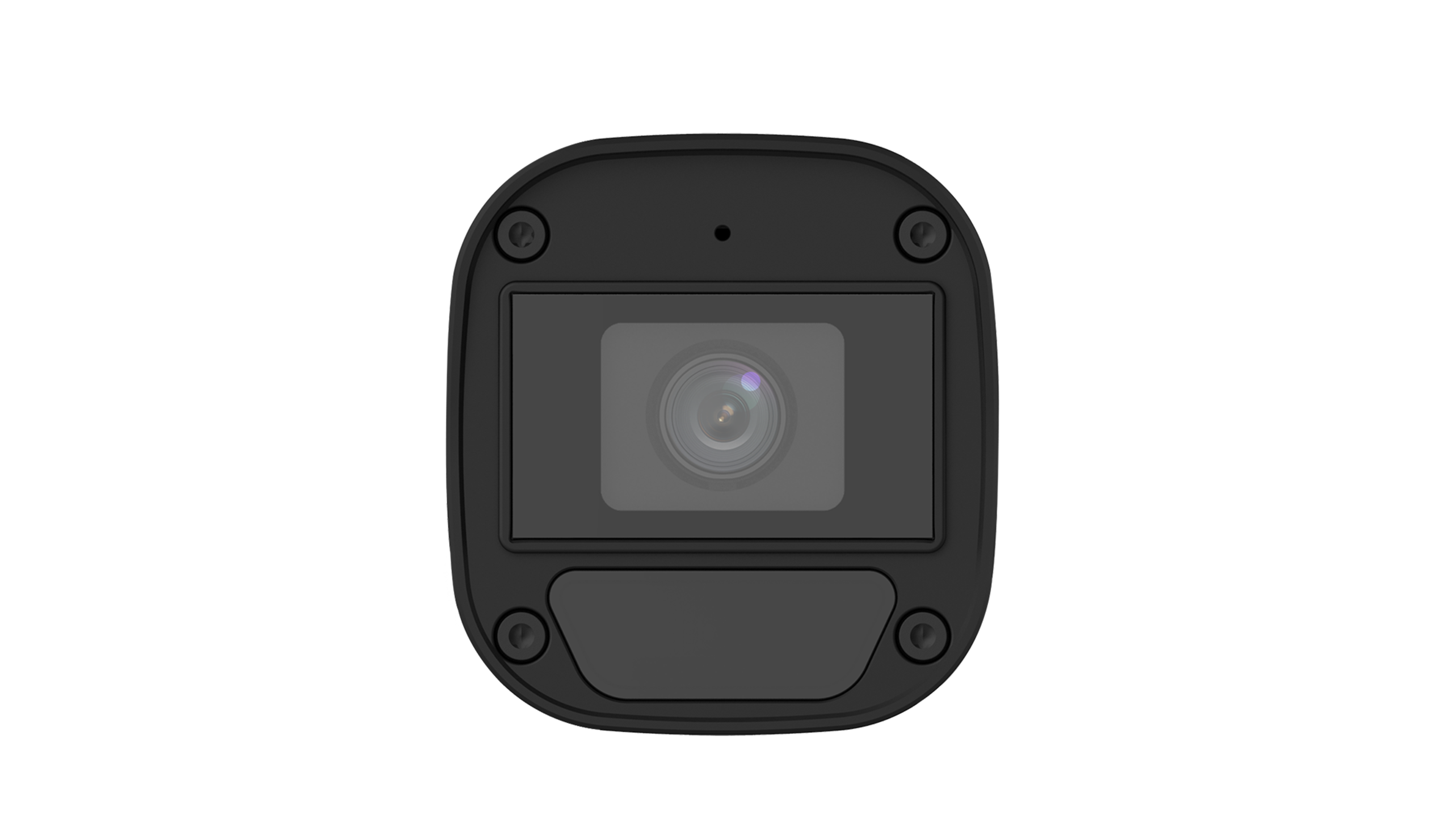

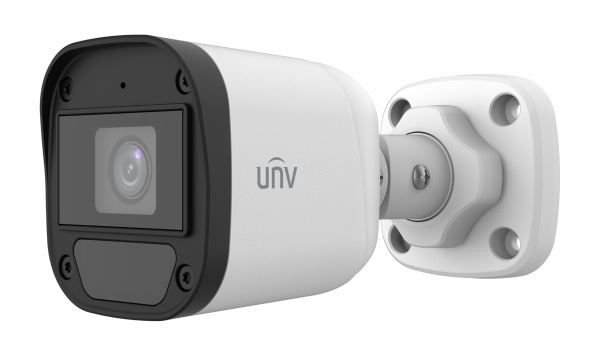

UAC-B112-AF28(40)

2MP Fixed IR Bullet Analog Camera

• 2MP high quality image
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables

Specification

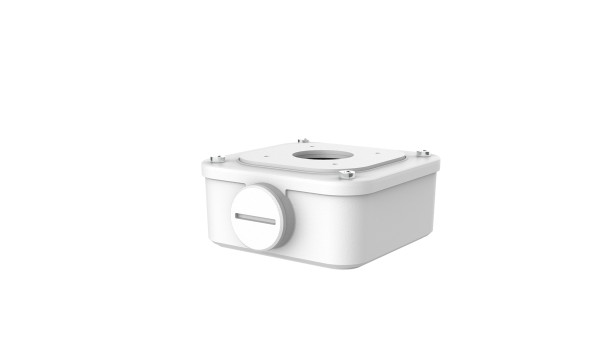

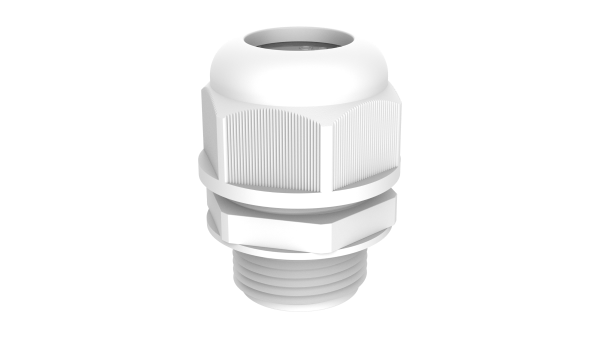

Accessories

Download

How to buy

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 21:17:20	UNV UAC-B112-AF28(40) 2MP Fixed IR Bullet Analog Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/6/23 12:35:32	UAC-B112-AF28_HD_Image_1.png	png	Download
HD Image	2025/6/23 12:35:32	UAC-B112-AF28_HD_Image_2.png	png	Download
HD Image	2025/6/23 12:35:32	UAC-B112-AF28_HD_Image_3.png	png	Download
HD Image	2025/6/23 12:35:32	UAC-B112-AF28_HD_Image_4.png	png	Download
HD Image	2025/6/23 12:35:32	UAC-B112-AF28_HD_Image_5.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2025/5/24 4:02:38	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2025/6/23 12:35:32	UAC-B112-AF28_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	UAC-B112-AF28	UAC-B112-AF40
Camera
Max Resolution	2 MP
Sensor Size	1/3.0" CMOS
Min. Illumination	0.02 lux (F2.0, AGC ON) 0 lux (IR ON)
Lens
Focus	2.8 mm	4.0 mm
Lens Mount	M12
Angle of View (H)	90.5°	80.2°
Angle of View (V)	49.6°	40.7°
Angle of View (D)	109.5°	90.5°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	20m
Lifetime	≥ 60000 hours
Video
Resolution	1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame Rate	TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s	PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180°horizontal flip, 180°vertical flip
Digital Defog	N/A
Audio
Built-in Mic	Support
Camera Audio	TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces	4kV for power&4kV for video output interfaces
General
Power	DC 12 V ± 25%
Power Consumption	MAX 2.2W

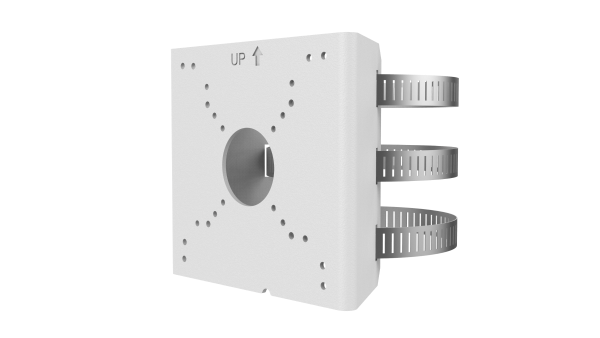

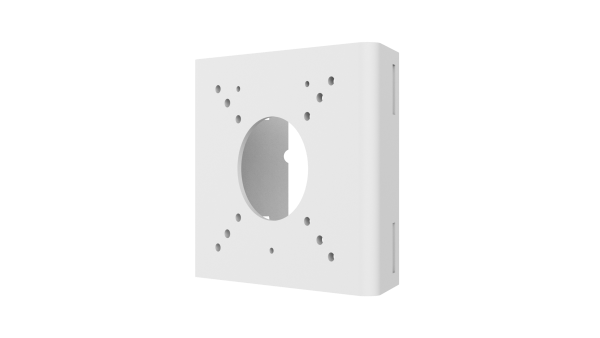

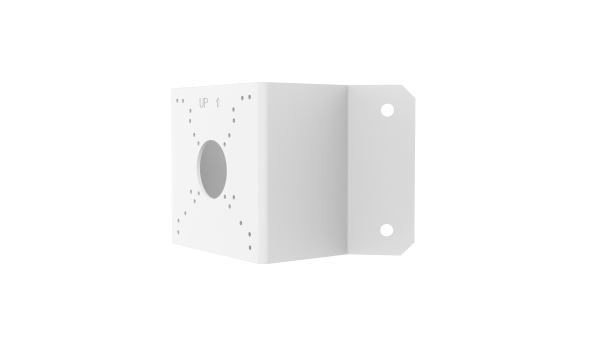

Mount	Corner Mount, Pole Mount	Corner Mount&Pole Mount
Dimensions	142mm63mm65mm (LWH)
Material	Plastic
Weight	135g(0.30lb)
OSD Menu Language	11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
