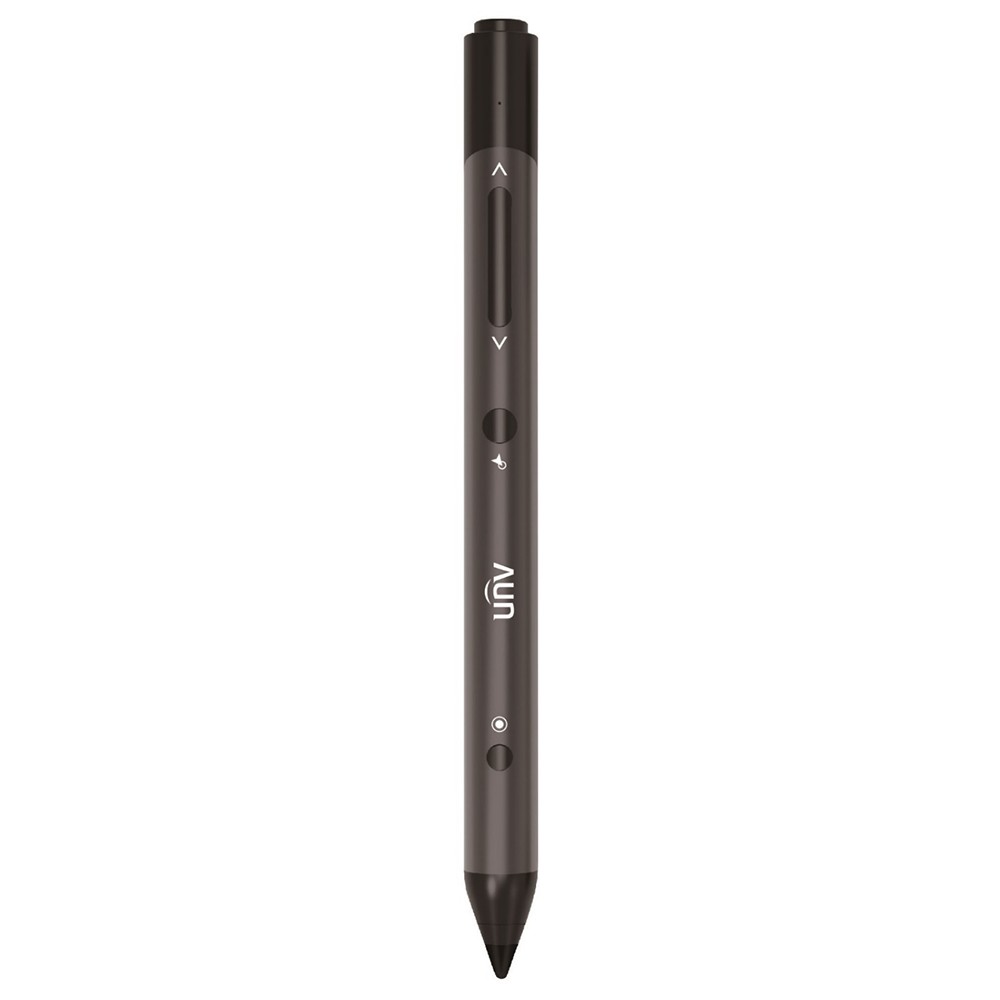

HB-T-SPEN | ||||||||
General | ||||||||
Pen Body Length (mm) | 172.8 | |||||||
Pen Body Diameter (mm) | 10.4 | |||||||
Pen Nib Diameter (mm) | Thin nib: 4.25 Thick nib: 8.75 | |||||||
Pen Body Material | ABS | |||||||
Pen Nib Material | Nanometre | |||||||
Data Transfer Method | Bluetooth | |||||||
Transfer Rate | 1Mbps | |||||||
Frequency Range | 2402MHz to 2480MHz | |||||||
Receiver Sensitivity | 5dBm | |||||||
Transmission Distance | 15 m (49.3 ft) | |||||||
Charging Interface | Type-C | |||||||
Standby Current | 0.8mA | |||||||
Operating Voltage | 3.3V to 4.2V | |||||||
Battery Capacity | 130mAh lithium battery | |||||||
Operating Temperature | -10°C to 50°C |
