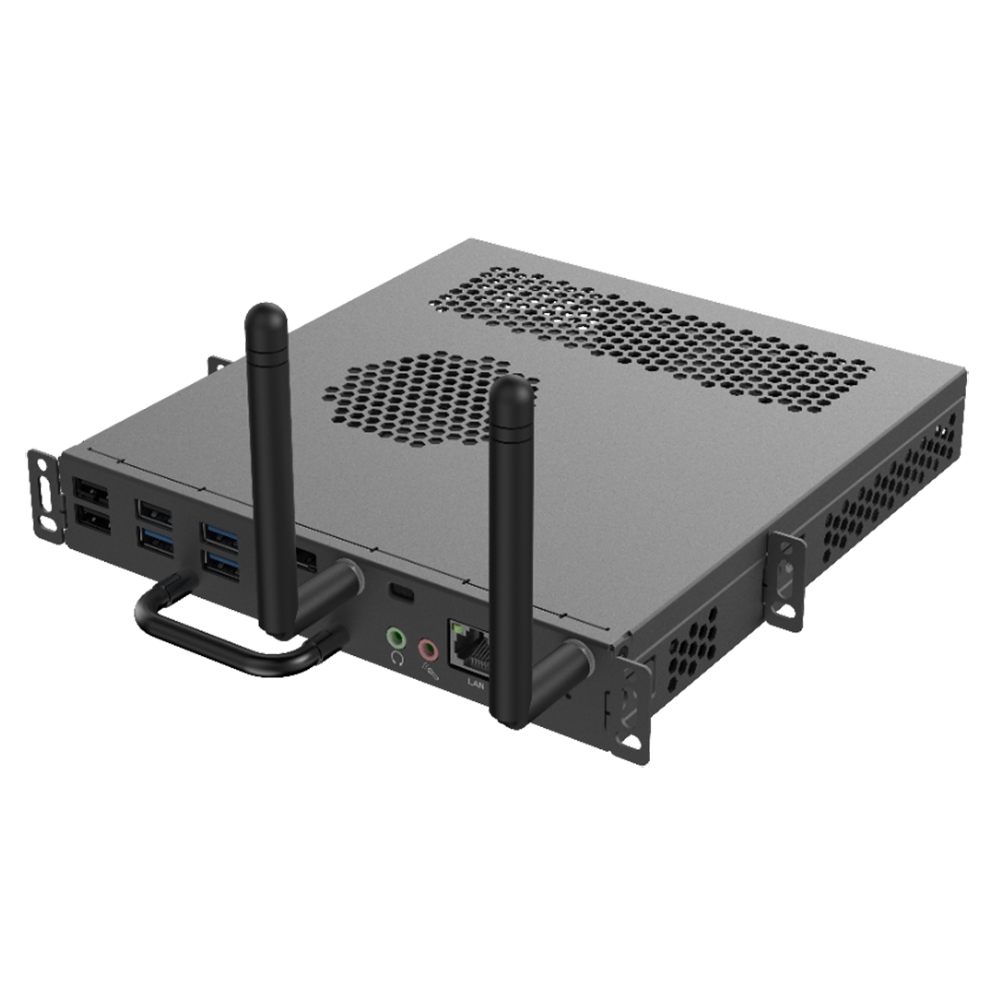

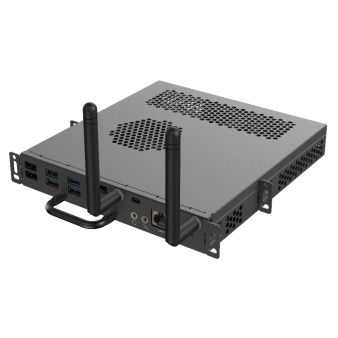

| HB-7099-S1 |
System |
CPU | i7-9700 |
Cores | 8 |
Threads | 8 |
CPU Frequency | 3.0 GHz |
Max. Turbo Frequency | 4.7 GHz |
RAM | 8 GB DDR4, support for expansion up to 16 GB |
ROM | 256 GB SSD, 1 x M.2-2280 SATAIII (up to 6Gb/s) SSD |
GPU | Intel HD Graphics 630 |
Operation System | Windows 10 (not activated) |
Interface |
USB | 3 x USB 3.0, 3 x USB 2.0 |
Audio | 1 x MIC, 1 x Line Out |
HDMI | 1 x HDMI (max. resolution: 3840 x 2160@30 Hz) |
DP | 1 x DP (max. resolution: 3840 x 2160@60 Hz) |
Network | 1 x RJ45 (RTL8111H 1000M NIC) |
Antenna | 2 x 2.4G/5G dual-band antenna |
Power on/off Switch | 1 x power on/off switch |
Power Indicator | 1 x power indicator, 1 x HDD indicator |
WLAN |
WLAN | 1 x M.2 2230 (INTEL-3165NGW-802.11ac+BT4.2), max. transmission rate: 433 Mbps |
General |
Power Supply | DC 12V to 19V, supplies power via OPS interface |
Overall Power Consumption (W) | ≤105 |
Standby Power Consumption (W) | ≤1.5 |
Product Dimensions (W × H × D) (mm) | 202.0 x 198.2 x 30.0 |
Package Dimensions (W × H × D) (mm) | 304 x 266 x 82 |
Weight (kg) | 1.1 |
Operating Temperature | -10°C to 50°C |
Operating Humidity | 10% to 90% RH |
Storage Temperature | -20°C to 60°C |
Packing Method | Cardboard box |
Storage Humidity | 10% to 90% RH |
Heat Dissipation Method | Fan |
