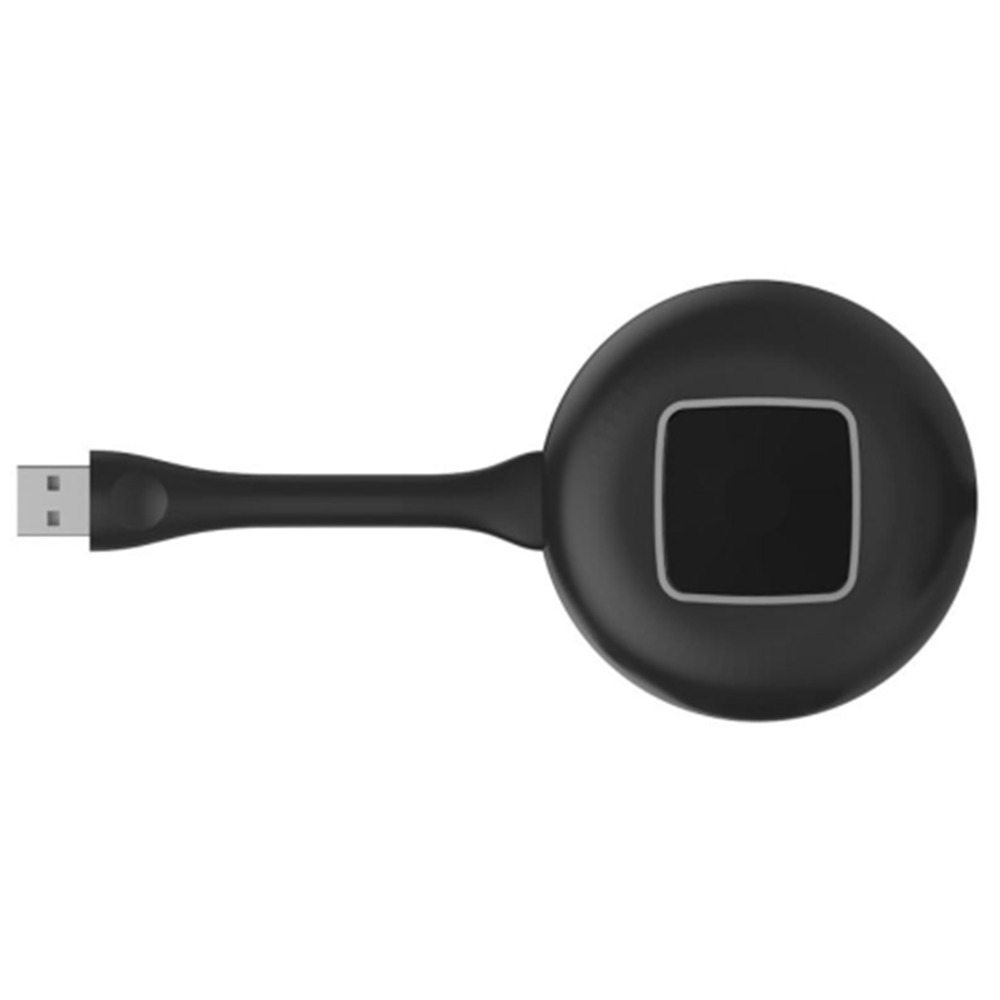

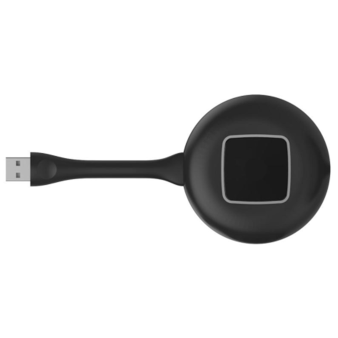

| HB-7199-TP | ||||||||
| Basic Parameters | ||||||||
| Connection Method | USB device | |||||||
| Supported Resolutions | 720P ~ 1080P | |||||||
| Frame Rate | 30 | |||||||
| Time Delay (ms) | 90 to 220 | |||||||
| Display Mode | Supports desktop expansion (Windows 7/8/10/11) | |||||||
| Reverse Control | 10-point touch control (Windows 7/8/10/11) | |||||||
| Number of Dongles Connected to a Display Simultaneously | 1 to 8 (an industrial router is required when connecting more than 8 dongles simultaneously) | |||||||
| Number of Screens Projected Simultaneously | 1 to 9 | |||||||
| Wireless Speed | Transmitter side: 300 Mbps | |||||||
| Wireless Transmission Protocol | IEEE 802.11 a/g/n/ac | |||||||
| Frequency Band | 2.4G/5G | |||||||
| Encryption | AES | |||||||
| Authentication Protocol | WPA2 PSK | |||||||
| General | ||||||||
| Operating System Support | Windows 7/8/10/11, Mac OS 10.11+ | |||||||
| Product Dimensions (W × H × D) (mm) | 160 x 75 x 14 | |||||||
