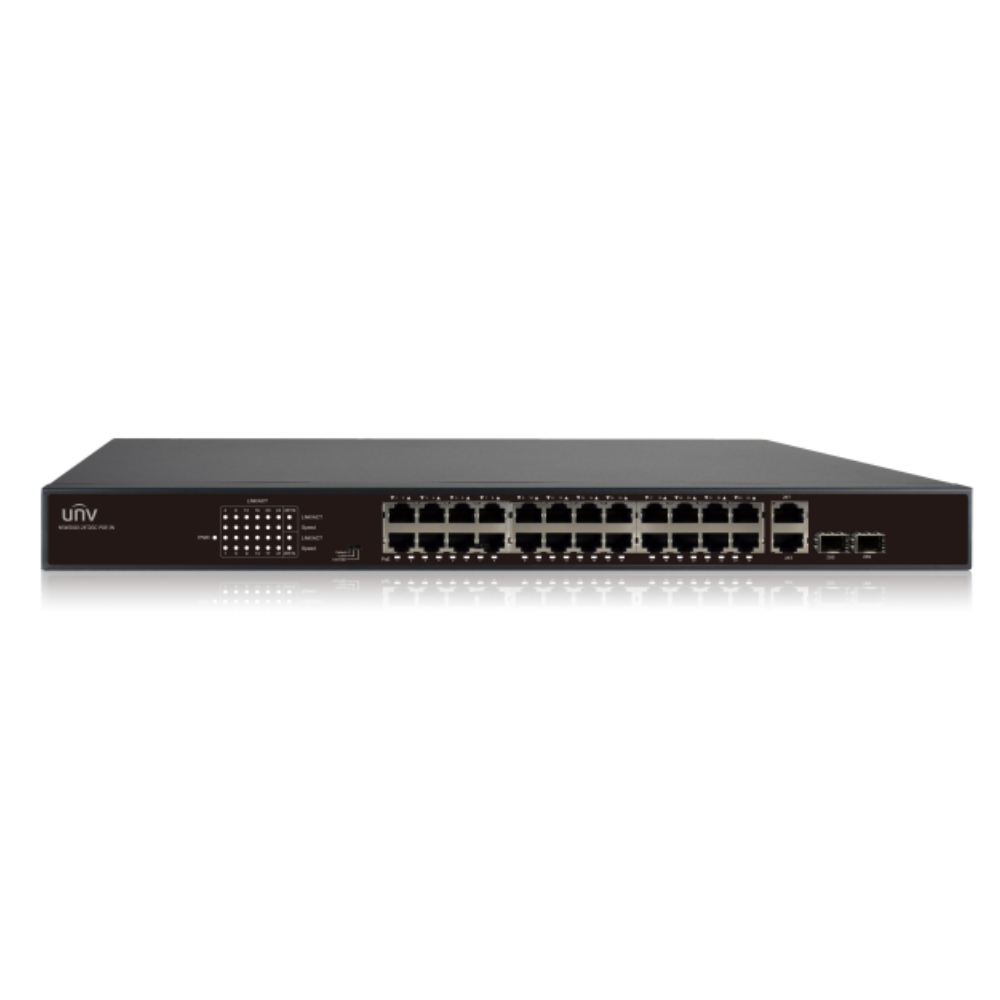

NSW2010-24T2GC-PoE-IN

Ethernet Switch(PoE)

Specification

Download

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/6/20 12:51:17	UNV NSW2010-24T2GC-POE-IN Ethernet Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/8/24 10:26:33	NSW2010-24T2GC-PoE-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	NSW2010-24T2GC-PoE-IN
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Switching capacity	8.8 Gbps
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Packet Buffer	4 M bit
Forwarding performance	6.55Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	16K
PoE Standard	IEEE 802.3af, IEEE 802.3 at
PoE Mode	ModeA (1236)
Max.PoE Power	370W
Max.Power	390W
Cooling Fans	2
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps
Weight	<4.2 kg
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters, VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
Dimensions (W×D×H)	440mm x 207mm x 45mm(17.3"×8.1"×1.8")
