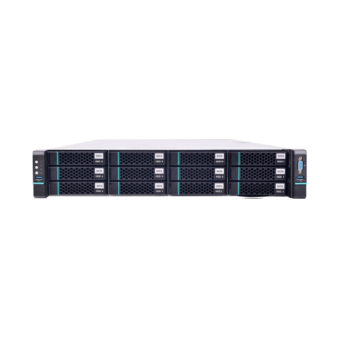

| VS-R5220-B2T@N-IN | ||||||||
| Hardware Parameters | ||||||||
| CPU | Intel® 4210R Xeon*2,support 2*2nd-generation Intel® Xeon® Scalable processors. | |||||||
| RAM | Standard 32G*2, total 16 slots | |||||||
| Standard HDD | 4T SATA HDD*1 | |||||||
| Front HDD expansion | 12*2.5/3.5-inch SAS/SATA/SSD HDD (directly connected to backplane) | |||||||
| Network interface | GE*2, supports OCP or PCIe network interface expansion | |||||||
| Management | 1 independent 1000Mbps network interface for IPMI remote management | |||||||
| USB | 5*USB 3.0 (3 back, 2 front) | |||||||
| VGA | 2*VGA interfaces (1 back, 1 front) | |||||||
| PCIE card slots | 6*PCI-E 3.0 slots | |||||||
| Built-in RAID controller | 1 (sold separately) | |||||||
| Power supply | 1+1 redundancy | |||||||
| Dimensions | 87mm(H)x438mm(W)x735mm(D) | |||||||
| Power input | 220V AC 240V DC | |||||||
| Weight | 27KG (fully loaded) | |||||||
| Environment temperature | Operating: 10°C to 35°C Non-operating: -40°C to 55°C | |||||||
| Relative humidity | Non-operating: 95% (noncondensing at 25°C to 30°C) | |||||||
