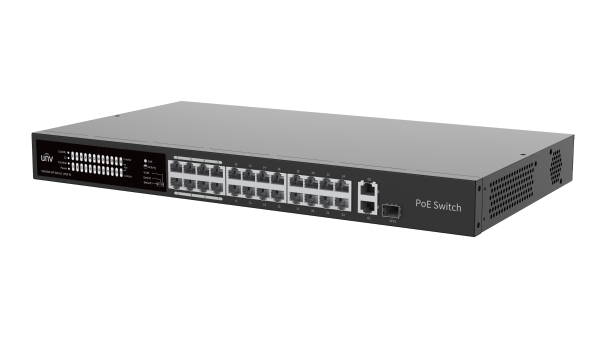

	NSW2020-24T1GT1GC-LPOE-IN
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity	8.8 Gbps
Packet Buffer	4 M bit
MAC	16K
Forwarding performance	6.55Mpps
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Cooling Fans	1
Max.Power	250W
Dimensions (W×D×H)	44025044mm
Weight	2.15KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time
Hardware Specification
PoE Mode	802.3at/af , ModeB : (4/5+, 7/8-)

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/6/20 13:40:09	UNV NSW2020-24T1GT1GC-LPOE-IN Ethernet Low Power PoE Switches.pdf	English	pdf	Preview	Download
