NSW2010-10T-POE-S-IN - Uniview - Leader of AIoT Solution

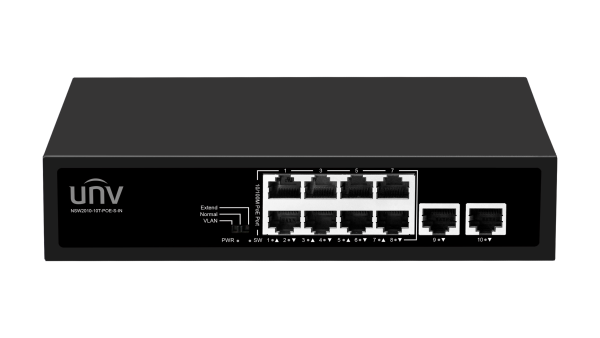

NSW2010-10T-POE-S-IN

8-Port POE Uplink-Port 200 Megabit,POE 96W

• Comply with IEEE 802.3, IEEE 802.3u standards.
• Ethernet port supports 10/100Mbps.
• Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
• Support port auto flip (Auto MDI/MDIX)
• Automatically supplied to adaptive devices.
• Panel indicator monitoring status and help failure analysis.
• Support for VLAN mode, Normal mode and Extend mode.

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/6/20 19:02:02	UNV NSW2010-10T-POE-S-IN Unmanaged Ethernet POE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/28 17:07:25	NSW2010-10T-POE-S-IN_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/8/28 17:07:25	NSW2010-10T-POE-S-IN_Dimensions_1.png	Download

	NSW2010-10T-POE-S-IN
Hardware Specification
Ports Type	10×10/100Mbps network ports (RJ45), including 8 PoE ports
Standards	IEEE802.3, IEEE802.3u, IEEE802.3x
Switching capacity	2 Gbps
Forwarding performance	1.49Mpps
Packet Buffer	768K bit
MAC	2K
Weight	0.61 kg
Max.Power	101W
Max.PoE Power	Max capacity: 96W Max capacity for single port: 30W Mode A: 1/2+, 3/6-
Dimensions (W×D×H)	Product : 200 x 118 x 44mm Package : 24519060mm
Cooling Fans	0
Working Temperature	-10°C to 50°C (14°F to 122°F)
Operating humidity	10%～90% (noncondensing)
Working Mode	Default(Normal mode) : All ports can communicate with each other., EXTEND(Surveillance mode): Transmission distance up to 250 meters., VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
Indicator Light	PWR（power supply），SW（DIP），1-6 Green（Link&Data）
Packing
Packing	Carton MEAS: 520320400mm Packing Qty: 20 units Packing Weight: 18.8KG
