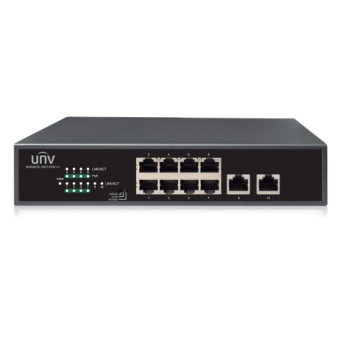

NSW2010-10GT-POE-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) | |||||||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
Switching capacity | 20 Gbps | |||||||
Packet Buffer | 2 M bit | |||||||
Forwarding performance | 14.88Mpps | |||||||
MAC | 2K | |||||||
PoE | support POE | |||||||
Cooling Fans | 1 | |||||||
Weight | <1.24kg | |||||||
Operating humidity | 10%~90% (non-condensing) | |||||||
Dimensions (W×D×H) | 220mm x 150mm x 44mm (8.7"×5.9"×1.7") | |||||||
Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 2025/6/20 11:37:20 | UNV NSW2010-10GT-POE-IN Gigabit Ethernet Switches.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 2025/8/28 19:14:17 | NSW2010-10GT-POE-IN_HD_Image_1.png | png | Download |
