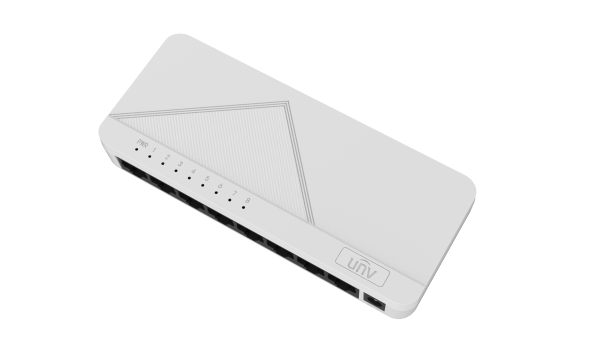

NSW1010-8T-IN

8-Port 100 Megabit Plastic Shell Switch

• Supports IEEE802.3 and IEEE802.3u standards.
• Supports 10/100Mbps or 10/100/1000Mbps self-adaptive Ethernet port.
• Supports auto MDI/MDIX.
• Supports IEEE802.3 flow control for full-duplex mode and backpressure for half-duplex mode.

Datasheet
HD Image

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/27 0:30:19	UNV NSW1010-8T-IN Unmanaged Ethernet Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/28 16:14:48	NSW1010-8T-IN_HD_Image_1.png	png	Download
HD Image	2025/8/28 16:14:48	NSW1010-8T-IN_HD_Image_2.png	png	Download
HD Image	2025/8/28 16:14:48	NSW1010-8T-IN_HD_Image_3.png	png	Download

	NSW1010-8T-IN
Hardware Specification
Ports Type	8 x 10/100Mbps port (RJ45)
Switching capacity	1.6 Gbps
MAC	2K
Forwarding performance	1.19Mpps
Standards	IEEE802.3 IEEE802.3u IEEE802.3x
Power Supply	DC: 5V 1A, powered by adapter (AC: 100 to 240V)
Carton Information	Carton dimensions: 530475315mm Carton quantity: 100PCS Carton weight: 17.6kg
Mount Method	Desktop mount, wall mount
Cooling Fans	0
Dimensions (W×D×H)	Product: 1456021.5mm Packaging: 1468850mm
Operating Temperature	-10 to 50°C (14°F to 122°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Weight	Product: 0.111kg Packaging: 0.166kg
