NSW1010-5T-IN - Uniview - Leader of AIoT Solution

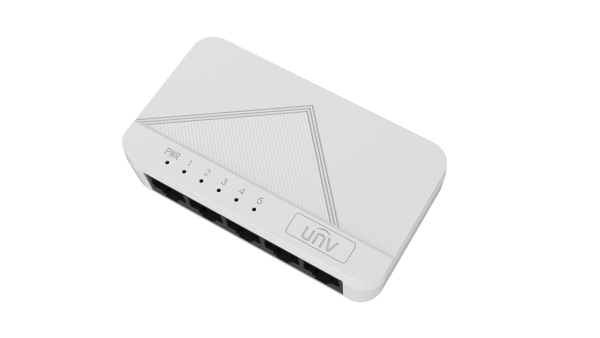

NSW1010-5T-IN

5-Port 100 Megabit Plastic Shell Switch

• Supports IEEE802.3 and IEEE802.3u standards.
• Supports 10/100Mbps or 10/100/1000Mbps self-adaptive Ethernet port.
• Supports auto MDI/MDIX.
• Supports IEEE802.3 flow control for full-duplex mode and backpressure for half-duplex mode.

Datasheet
HD Image

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 23:13:32	UNV NSW1010-5T-IN Unmanaged Ethernet Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/28 16:15:11	NSW1010-5T-IN_HD_Image_1.png	png	Download
HD Image	2025/8/28 16:15:11	NSW1010-5T-IN_HD_Image_2.png	png	Download
HD Image	2025/8/28 16:15:11	NSW1010-5T-IN_HD_Image_3.png	png	Download

	NSW1010-5T-IN
Hardware Specification
Ports Type	5 x 10/100Mbps port (RJ45)
Switching capacity	1Gbps
MAC	2K
Forwarding performance	0.744Mpps
Standards	IEEE802.3 IEEE802.3u IEEE802.3x
Power Supply	DC: 5V 1A, powered by adapter (AC: 100 to 240V)
Carton Information	Carton dimensions: 435280395mm Carton quantity: 100PCS Carton weight: 14.2kg
Mount Method	Desktop mount, wall mount
Cooling Fans	0
Dimensions (W×D×H)	Product: 925121.5mm Packaging: 938251mm
Operating Temperature	-10 to 50°C (14°F to 122°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Weight	Product: 0.062kg Packaging: 0.132kg
