CAB-LC3100B-E2-IN - Uniview - Leader of AIoT Solution

CAB-LC3100B-E2-IN

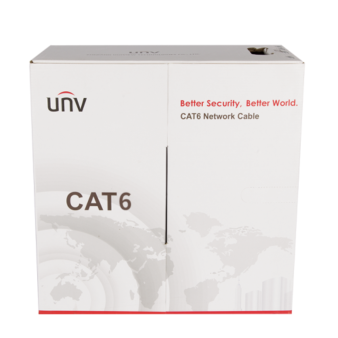

Cat6(UTP),305m,BC,Orange

Especificação

Baixar

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 20:58:23	UNV CAB-LC3100B-E2-IN UTP Category 6 Cables（0.50mm）.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/28 19:45:32	CAB-LC3100B-E2-IN_HD_Image_1.png	png	Download

Want to learn more?

	CAB-LC3100B-E2-IN
Cable
Product model	CAB-LC3100B-E2-IN
Product specification	HSYV-6 4×2×0.50
Test Standard	Fluke Test 90m
Packing length	305±1 m
Rip-cord	Yes
Seperator	Yes
Ambient temperature	-20℃～75℃
Conductor
Material	Solid-Bare Copper
AWG	24
Nom.O.D.(mm)	0.50±0.01 mm
DC resistance	≤95 Ω/km
Insulation
Material	HDPE
Diameter	0.90±0.05 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	PVC
External O.D.	5.6±0.3 mm
Thickness	0.55±0.1 mm
Color	Orange
Tensile strength	>13.8 Mpa
Surface Printing
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Color	Black
Packing
Packing	Pallet
Once packing dimension	420mm205mm420mm
