CAB-LC2100B-IN

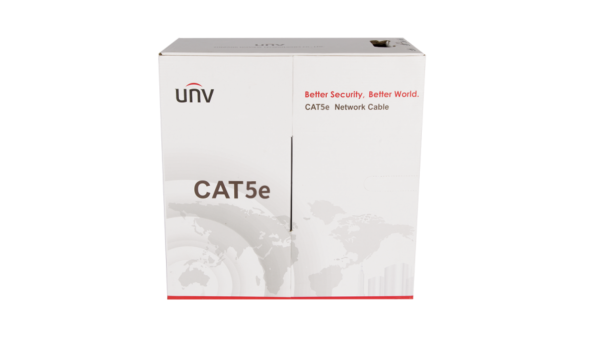

Cat5e(UTP)-305m-Overseas

Especificação

Baixar

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 16:34:47	UNV CAB-LC2100B-IN UTP Category 5E Cables（0.50mm）.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/1/26 3:11:47	CAB-LC2100B-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	CAB-LC2100B-IN
Cable
Product model	CAB-LC2100B-IN
Packing length	305±1 m
Ambient temperature	-20℃～60℃
Rip-cord	Yes
Conductor
Material	Solid-Bare Copper
AWG	24
Nom.O.D.(mm)	0.5±0.005 mm
DC resistance	≤95 Ω/km
Insulation
Diameter	0.9±0.05 mm
Material	HDPE
Thickness	0.2±0.02 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Pitch
Offset pitch	≤25 mm
Cable pitch	≤140 mm
Sheath
Material	PVC(complies RoHS/REACH)
Thickness	0.55±0.05 mm
External O.D.	5.1±0.3 mm
Tensile strength	>13.5 Mpa
Color	Gray(RAL7046)
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Case number	Yes
Packing
Packing	Carton
Once packing dimension	350mm216mm350mm
Twice packing dimension	370mm460mm370mm
