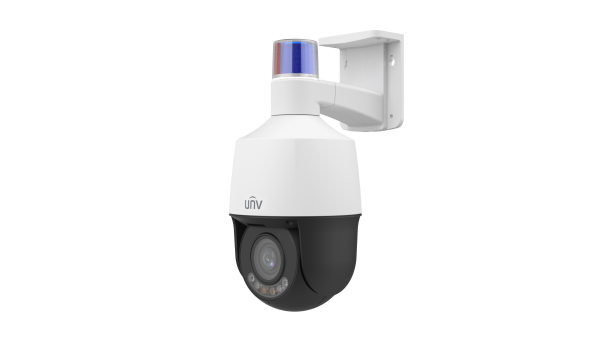

IPC6315LFW-AX5C-VG1 | ||||||||
Camera | ||||||||
Max Resolution | 5 MP | |||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 2.7 to 13.5 mm | |||||||
Optical Zoom | 5X | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 106.91° to 33.55° | |||||||
Field of View (V) | 56.45° to 18.99° | |||||||
Field of View (D) | 123.1° to 42.1° | |||||||
DORI | ||||||||
DORI Distance (Detect) | 72.0 m to 229.5 m (236.2 ft. to 753.0 ft) | |||||||
DORI Distance (Observe) | 28.8 m to 91.8 m (94.5 ft. to 301.2 ft) | |||||||
DORI Distance (Recognize) | 14.4 m to 45.9 m (47.2 ft. to 150.6 ft) | |||||||
DORI Distance (Identify) | 7.2 m to 23.0 m (23.6 ft. to 75.5 ft) | |||||||
Video | ||||||||
Privacy Mask | Up to 4 areas | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 5 MP (2880 × 1620), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Dual streams | |||||||
OSD | Up to 4 OSDs | |||||||
Intelligent | ||||||||
Auto Tracking | Support, target filtering: human only | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Smart IR | Support | |||||||
Defog | Digital defog | |||||||
Illuminator | ||||||||
Light On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
Illumination Distance (Warm Light) | 15 m (49.2 ft) | |||||||
Events | ||||||||
Basic Detection | Motion detection, Tampering alarm, Audio detection | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | MicroSD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
PTZ | ||||||||
Number of Presets | 1024 | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Patrol Stay Time | 120 s to 1800 s | |||||||
Home Position | Support | |||||||
Pan Range | 0° to 345° | |||||||
Tilt Range | -10° to 100° | |||||||
Pan Speed | 1°/s to 40°/s | |||||||
Tilt Speed | 1°/s to 30°/s | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) | |||||||
Safety | CE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
Power | DC 12 V (±25%), PoE (IEEE 802.3at) | |||||||
Power Consumption | 18 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 133 mm × 185 mm × 286 mm (Ø 5.2" × 7.3" × 11.3" ) (L × W × H) | |||||||
Weight | 788 g (1.74 lb) | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 2 KV | |||||||
Reset Button | Support | |||||||
Heater | Support | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
Configurable | ||||||||
P/N | Support |
