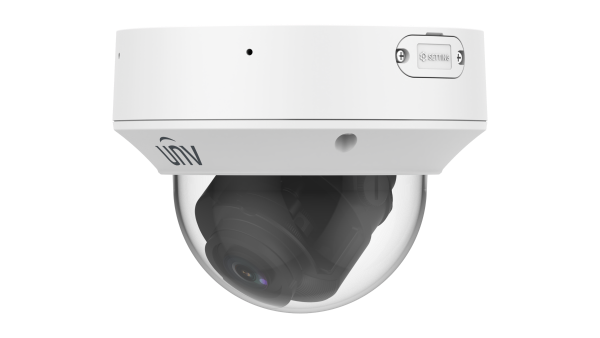

| IPC3232SA-AHDZK-PI-I1 | ||||||||
| Camera | ||||||||
| Max Resolution | 2 MP | |||||||
| Sensor | 1/2.8" CMOS | |||||||
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 130 dB | |||||||
| Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 70°, Rotate: 0° to 355° | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.7 to 13.5 mm | |||||||
| Optical Zoom | 5X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 99.2° to 32.3° | |||||||
| Field of View (V) | 53.6° to 18° | |||||||
| Field of View (D) | 117.4° to 37.2° | |||||||
| Iris Type | P-iris | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.7 to 13.5 mm | |||||||
| DORI Distance (Detect) | 51.2 m to 158.3 m (168.0 ft. to 519.3 ft) | |||||||
| DORI Distance (Observe) | 20.5 m to 63.3 m (67.2 ft. to 207.7 ft) | |||||||
| DORI Distance (Recognize) | 10.2 m to 31.7 m (33.5 ft. to 104.0 ft) | |||||||
| DORI Distance (Identify) | 5.1 m to 15.8 m (16.7 ft. to 51.8 ft) | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Triple streams | |||||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |||||||
| OSD | Up to 8 OSDs | |||||||
| Frame Rate-Main Stream | 1080P (1920 × 1080), max. 60 fps | |||||||
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps | |||||||
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Flip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm, Ultra motion detection | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 40 m (131.2 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | 1 × RS485 | |||||||
| Built-in Mic | Built-in dual-mic | |||||||
| Built-in Speaker | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B) | |||||||
| Safety | CE LVD (EN IEC 62368-1) UL (UL 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
| General | ||||||||
| Power | DC 12 V (±25%), PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 8 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) | |||||||
| Weight | 0.95 kg (2.09 lb) | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
