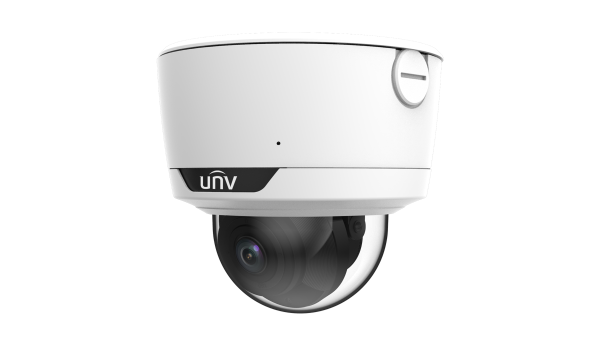

IPC3738SE-ADZK-I0 | ||||||||
Camera | ||||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Color: 0.0008 Lux (F1.2, AGC ON), 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 2.8 to 12 mm | |||||||
Digital Zoom | 16X | |||||||
Optical Zoom | 5X | |||||||
Iris | F1.2 | |||||||
Field of View (H) | 101.1° to 48.0° | |||||||
Field of View (V) | 57.2° to 23.9° | |||||||
Field of View (D) | 124.3° to 59.0° | |||||||
Iris Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8 to 12 mm | |||||||
DORI Distance (Detect) | 98.6 m to 241.0 m (323.3 ft. to 790.6 ft) | |||||||
DORI Distance (Observe) | 39.4 m to 96.4 m (129.3 ft. to 316.2 ft) | |||||||
DORI Distance (Recognize) | 19.7 m to 48.2 m (64.7 ft. to 158.1 ft) | |||||||
DORI Distance (Identify) | 9.9 m to 24.1 m (32.3 ft. to 79.1 ft) | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple streams | |||||||
Privacy Mask | Up to 4 areas | |||||||
OSD | Up to 10 OSDs | |||||||
Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps | |||||||
Frame Rate-Sub Stream | 720P (1280 × 720), max. 30 fps | |||||||
Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps | |||||||
Intelligent | ||||||||
Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
People Counting | Support people flow counting and crowd density monitoring | |||||||
Traffic Monitoring | Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Smart IR | Support | |||||||
Defog | Digital defog | |||||||
Heatwave Reduction | N/A | |||||||
Events | ||||||||
Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | MicroSD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 40 m (131.2 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 2/1 | |||||||
Built-in Mic | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | 1 BNC (for debugging) | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
General | ||||||||
Power | DC 12 V (±25%), PoE (IEEE 802.3af) | |||||||
Power Consumption | Max. 10 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | Ø162 mm × 149 mm (Ø6.4" × 5.9") (Ø × H) | |||||||
Weight | 1.5 kg (3.31 lb) | |||||||
Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Reset Button | Support | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
Heater | Support | |||||||
Configurable | ||||||||
P/N | Support |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 2025/9/23 9:16:39 | UNV IPC3738SE-ADZK-I0 8MP Lighthunter WDR IR Network Dome Camera.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 2025/9/11 20:32:59 | IPC3738SE-ADZK-I0_HD_Image_1.png | png | Download |
HD Image | 2025/9/11 20:32:59 | IPC3738SE-ADZK-I0_HD_Image_2.png | png | Download |
HD Image | 2025/9/11 20:32:59 | IPC3738SE-ADZK-I0_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Preview | Download |
User Manual | 2025/5/23 9:09:14 | UNV-Network Camera User Manual.pdf | English | Preview | Download A > |
Class | Date | Title | Language | Type | Preview | Download |
Quick Guide | 2025/6/18 4:01:50 | Quick Guide.pdf | English | Preview | Download A > |
Class | Date | Title | Download |
Dimensions | 2025/9/11 20:32:59 | IPC3738SE-ADZK-I0_Dimensions_1.png | Download |
