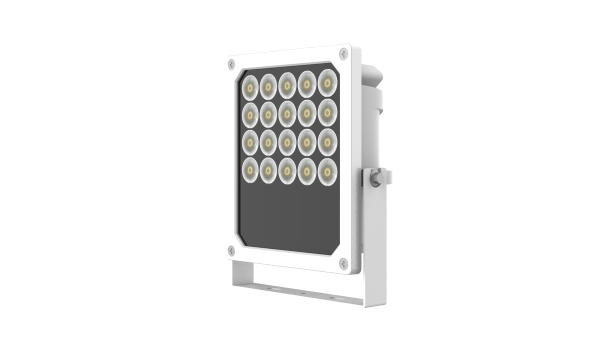

LAMP-S16@A10-T30-OS | ||||||||
White light flash | ||||||||
Color temperature | 3000K | |||||||
White light flash lifetime | >50000h@25°C | |||||||
Hardware Parameter | ||||||||
Strobe luminous flux | 1400lm@20% duty cycle | |||||||
Illumination angle | 10° | |||||||
Trigger level | 4V to 6V (active high) | |||||||
Trigger duty ratio | 1% to 40% | |||||||
Response time | ≤370μs | |||||||
Interface | 1 power input, 1 strobe trigger input | |||||||
LED strobe | ||||||||
Trigger mode | TTL level/switch | |||||||
Trigger frequency | 40Hz to 200Hz | |||||||
Power consumption | 30W | |||||||
Be in common use | ||||||||
Bracket rotation angle | -90° to +90° | |||||||
Power supply | AC176V to 264V, 50/60Hz | |||||||
Weight | 1.4kg | |||||||
Dimensions (L × W × H) | 182mm x 157mm x 71.4mm (without universal bracket) | |||||||
Ingress protection | IP65 |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 2025/8/26 21:45:14 | UNV LAMP-S16@A10-T30-OS 10 Degrees Warm Light Strobe Lamp.pdf | English | Preview | Download A > |
