OEA-ML12-500

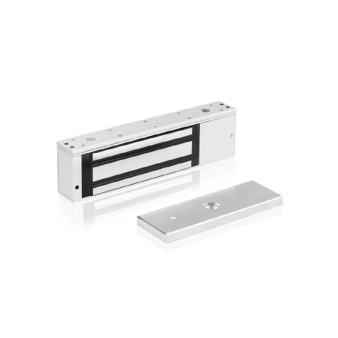

Single Door Electromagnetic Lock 500KG

• 500kg holding force.
• Internal reverse current protection (MOV).
• Anti-residual magnetism design, wear-resistant material.
• Aluminum shell made of high-strength alloy material.
• Tamper-proof screws.
• Supports standard single door (left-hand opening).

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 13:55:49	UNV OEA-ML12-500 OEA-ML12-500 Single-Door Magnetic Lock (500kg).pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/9/11 16:09:29	OEA-ML12-500_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/9/11 16:09:29	OEA-ML12-500_Dimensions_1.png	Download

	OEA-ML12-500
Hardware Specification
Power Supply	DC12V/DC24V
Operating Current	600mA
Standby Current	600mA/300mA
Security Type	Failsafe
Operating Environment	Operating temperature: -30°C to +60°C, operating humidity: ≤95%
Weight	4.6kg
Dimensions (L x W x H)	Lock body: 265x70x40(mm); armature plate: 185x60x13(mm)
Door Support	Wooden door, glass door, metal door, etc.
Attestation	CE/FCC/ROHS
