OEA-ML12-280

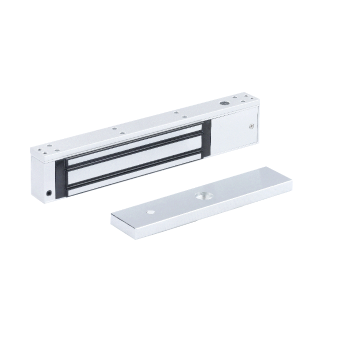

Single Door Electromagnetic Lock 280KG

• 280kg holding force.
• MOV surge protection.
• No residual magnetism, abrasion resistant.
• Solid aluminum alloy housing.
• Double-insulated lock body.
• Tamper-proof screws, stable and safe.
• Supports standard single door (left-hand opening).

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 13:55:12	UNV OEA-ML12-280 OEA-ML12-280 Single Door Magnetic Lock (280KG).pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/9/11 16:08:48	OEA-ML12-280_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/9/11 16:08:48	OEA-ML12-280_Dimensions_1.png	Download

	OEA-ML12-280
Hardware Specification
Power Supply	DC12V/DC24V
Operating Current	460mA
Standby Current	460mA/230mA
Security Type	Failsafe
Operating Environment	Operating temperature: -30°C to +60°C, operating humidity: ≤95%
Weight	2kg
Dimensions (L x W x H)	Lock housing: 250×47.7×27.5; armature plate: 180×38×11.7
Door Support	Wooden door, glass door, metal door, etc.
Attestation	CE/FCC/ROHS
