OEA-EL12 - Uniview - Leader of AIoT Solution

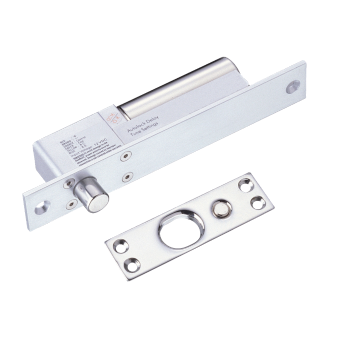

OEA-EL12

Electric Plug Lock

• Ultra-low power consumption design, more durable and environmentally friendly.
• MOV surge protection.
• High-strength aluminum alloy lock body, stainless steel bolt.
• Ultra-low temperature design, more secure and durable.
• 500,000 power-on aging tests.
• Door status feedback.

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 13:56:08	UNV OEA-EL12 OEA-EL12 Electric Bolt Lock.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/9/11 16:08:28	OEA-EL12_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/9/11 16:08:28	OEA-EL12_Dimensions_1.png	Download

	OEA-EL12
Hardware Specification
Power Supply	DC 12 V±10%
Operating Current	800mA
Standby Current	110mA
Security Type	Failsafe
Operating Environment	Operating temperature: -30°C to +60°C, operating humidity≤95%
Weight	0.72kg
Dimensions (L x W x H)	Lock housing: 205×35×42; Lock strike : 87×24×1.5
Door Support	Wooden door, glass door, metal door, etc.
Attestation	CE/FCC/ROHS
