OEC-R3H-M

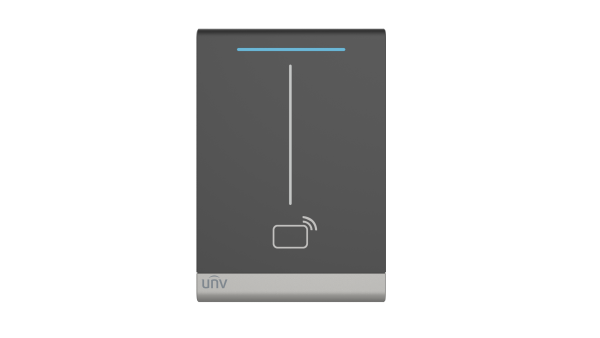

Wall Mounted Mifare Card Reader

• Supports Wiegand/RS-485 data output.
• Built-in buzzer.
• Supports indoor and outdoor application.
• Stability, sensitivity, and responsiveness.
• Supports ISO 14443-A and ISO 14443-B protocols.

Especificação

Baixar

How to buy

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 15:17:55	UNV OEC-R3H-M Wall Mount Mifare Card Reader.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/10/28 3:07:01	OEC-R3H-M_HD_Image_1.png	png	Download
HD Image	2025/10/28 3:07:01	OEC-R3H-M_HD_Image_2.png	png	Download
HD Image	2025/10/28 3:07:01	OEC-R3H-M_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2025/5/11 4:00:18	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2025/10/28 3:07:01	OEC-R3H-M_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	OEC-R3H-M
Hardware Specification
Operating Frequency	13.56MHz
Interface	Wiegand 26/34, RS485
Material	PC
Dimensions (L x W x H)	1298821mm
Weight	134g
Mount Method	11573mm junction box, 8686mm junction box
Operating Temperature	-30°C to 65°C
Operating Humidity	10% to 90%
Storage Temperature	-40°C to 65°C
Indicator	Steady blue: Normal operation; Steady green for 1s: Card authentication succeeded; Steady red for 1s: Card authentication failed
Power Consumption	0.732W
Operating Voltage	DC 12V ± 25%
Operating Current	61mA
Reading Distance	IC card: max. 5cm
Authentication Mode	Card
Protection Level	IP65
Basic Business
Reading Time	< 1s
Card Type	Mifare card
