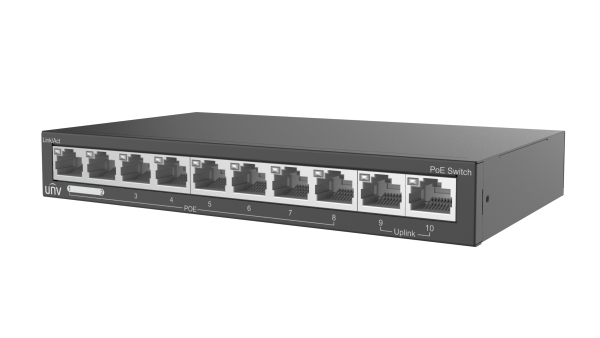

NSW2020-10T-LPOE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Up to 250m transmission distance on Extend mode
• Support buffer optimization
• All metal housing, safe and reliable

Spécification

Documents associés

Comment acheter

Fiche technique
Image HD
Guide de démarrage rapide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 15:15:04	UNV NSW2020-10T-LPOE-IN Ethernet Low Power PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/21 2:05:17	NSW2020-10T-LPOE-IN_HD_Image_1.png	png	Download
HD Image	2026/9/21 2:05:17	NSW2020-10T-LPOE-IN_HD_Image_2.png	png	Download
HD Image	2026/9/21 2:05:17	NSW2020-10T-LPOE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/6/24 16:00:39	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/21 2:05:17	NSW2020-10T-LPOE-IN_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	NSW2020-10T-LPOE-IN
Hardware Specification
Ports Type	10×100Mbps network ports (RJ45), including 8 PoE ports
Switching capacity	2 Gbps
Power Supply	DC 48/51V, powered by adapter( AC 100 to 240V)
Forwarding performance	1.49Mpps
MAC	1K
PoE Standard	IEEE 802.3 at, IEEE 802.3af
Packet Buffer	448K bit
PoE Mode	ModeB (4578)
Max.PoE Power	Max capacity:60W Max capacity for single port: 30W
Prior Ports	1 to 2
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Cooling Fans	0
Max.Power	65W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input No PoE Indicator PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Dimensions (W×D×H)	17110325mm
Weight	0.29KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Compliance
NDAA Compliant	Support
