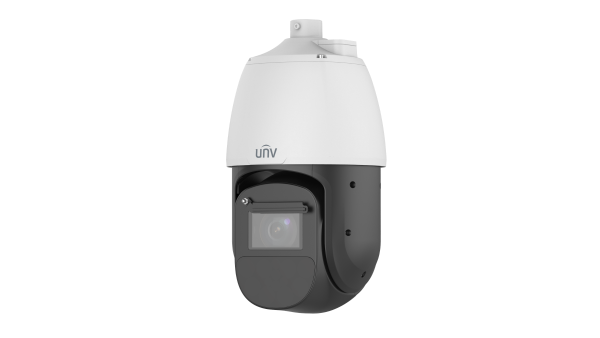

| IPC6828EL-X42-W-VH1 | ||||||||
| Camera | ||||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 6.0~252mm | |||||||
| Optical Zoom | 42X | |||||||
| Digital Zoom | 16X | |||||||
| Iris | F1.2 to F4.6 | |||||||
| Field of View (H) | 57.96° to 2.15° | |||||||
| Field of View (V) | 34.61° to 1.21° | |||||||
| Field of View (D) | 71.30° to 2.54° | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 155.5 m to 4829.4 m (510.1 ft. to 15844.5 ft.) | |||||||
| DORI Distance (Observe) | 62.2 m to 1931.8 m (204.0 ft. to 6337.8 ft.) | |||||||
| DORI Distance (Recognize) | 31.1 m to 965.9 m (102.0 ft. to 3168.9 ft.) | |||||||
| DORI Distance (Identify) | 15.5 m to 482.9 m (51.0 ft. to 1584.4 ft.) | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 30 fps Sub Stream: 1080P (1920 × 1080), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Privacy Mask | 24 areas, up to 8 areas per scene | |||||||
| Video Stream | Triple streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output | |||||||
| Image | ||||||||
| EIS | Support | |||||||
| BLC | Support | |||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| Defog | Digital defog, Optical defog | |||||||
| Image Stabilization | EIS (Gyroscope) | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Intelligent | ||||||||
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle | |||||||
| Multi-target Detection | Support | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density detection | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| PTZ | ||||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Preset Image Freeze | Support | |||||||
| Home Position | Support | |||||||
| Number of Presets | 1024 | |||||||
| Pan Range | 360° (endless) | |||||||
| Tilt Range | -15° to 90° (auto flip) | |||||||
| Pan Speed | 0.1°/s to 180°/s | |||||||
| Tilt Speed | 0.1°/s to 180°/s | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 7/2 | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Serial Port | 1 * RS485 | |||||||
| Video Output | 1 BNC (for debugging) | |||||||
| Illuminator | ||||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Illumination Distance (IR) | 500m | |||||||
| Certification | ||||||||
| Safety | CE LVD (EN IEC 62368-1: 2020+ A11: 2020) | |||||||
| EMC | CE-EMC (EN 55032: 2015+ A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+ A: 2019; EN 55035: 2017+ A11: 2020) | |||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262, Anti- Vandalism Except for the Front Window) | |||||||
| General | ||||||||
| Power | AC 24 V±25%, DC 24 V±25%, PoE (IEEE 802.3bt) | |||||||
| Power Consumption | Max. 67 W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H) | |||||||
| Weight | 6.9 kg (15.21 lb.) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Heater | Support | |||||||
| Configurable | ||||||||
| P/N | Support | |||||||
