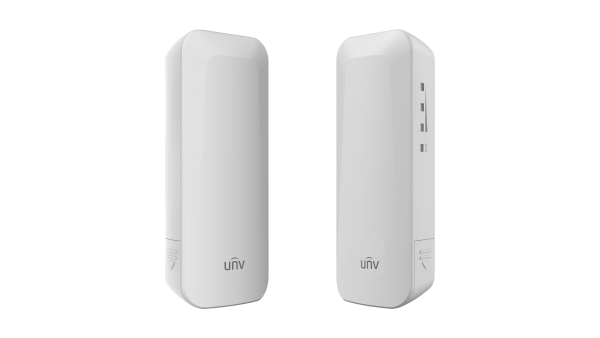

	WB-S500I-IN
Hardware Specification
Dimensions(mm)	165.5 * 69.2 * 42mm
Weight(kg)	Bridge: 0.14kg. PoE injector: 0.02kg.
Installation	Pole mounting, Wall mounting
Protection Level	IP54
Antenna Gain	6dBi
Beam Width	H：60°，V：60°
Max Power Consumption(W)	5W
Physical Interface	1*10/100Mbps RJ45 port
Indicator Light	System: Steady on: The device is working normally, but the LAN interface is disconnected from the network Blinking: The device is working normally, and the LAN interface is connected to the network Off: The device is powered off, or abnormal after being powered on Signal Strength: Recorder end: Three indicators blinking: Pairing Three indicators on: Paired Three indicators off: Not paired Camera end: Three indicators blinking: Pairing One indicator on: Weak signal strength Two indicators on: Average signal strength Three indicators on: Strong signal strength Three indicators off: Not paired
Maximum Transmitted Power	20dBm
Working Temperature	-30℃ to 60℃
Working Humidity	5% to 95%RH, Non-condensing
Transmission Distance	500meters
Transmission Capability	2×Channels×4M bits
Reset Button	Press and hold for 10 seconds to restore factory defaults. Press and hold for 3 seconds to pair.
Rx Sensitivity	IEEE 802.11b: -86dBm@11Mbps
Hardware Specification
Power Supply	Mode A: Powered by 12V Passive POE( including passive PoE injector), allows up to 80m PoE power supply Mode B:Powered by 12 DC adapter (including DC adapter)
Software Specification
Protocol	IEEE 802.11b/g/n
Frequency	East Asia: 2412MHz to 2472MHz North America: 2412MHz to 2462MHz Europe: 2412MHz to 2472MHz Supported frequency range：2400 MHz to 2483.5 MHz (should depend on the local regulation.)
Network Mode	Bridge
Management	Web/APP
Ethernet	Static IPv4, DHCP client, DNS
WiFi	Support SSID, Password, Encryption type. Support scanning hotspots in the camera end.
System and Maintaince	Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. Support syslog, network detection.
Software Specification
Security	WPA-PSK, WPA2-PSK, Hidden SSID

صحيفة البيانات
صورة عالية الدقة
دليل المستخدم
دليل سريع
الأبعاد
البرنامج الثابت

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 3:40:56	UNV WB-S500I-IN Elevator Wireless Bridge.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/19 2:05:51	WB-S500I-IN_HD_Image_1.png	png	Download
HD Image	2026/9/19 2:05:51	WB-S500I-IN_HD_Image_2.png	png	Download
HD Image	2026/9/19 2:05:51	WB-S500I-IN_HD_Image_3.png	png	Download
HD Image	2026/9/19 2:05:51	WB-S500I-IN_HD_Image_4.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
User Manual	2025/11/21 16:06:35	UNV-Wireless Bridge User Manual.pdf	English	pdf	Preview	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/10 4:30:47	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/19 2:05:51	WB-S500I-IN_Dimensions_1.png	Download

Title	Language	Type	Download
WB-B3201.3.0.260723.zip	English	zip	Download
