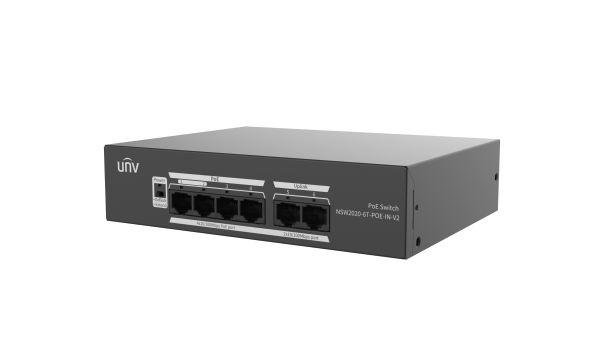

NSW2020-6T-POE-IN-V2

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default (Normal mode), EXTEND (Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

صحيفة البيانات
صورة عالية الدقة
دليل سريع
الأبعاد

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 1:04:55	UNV NSW2020-6T-POE-IN-V2 Unmanaged Ethernet PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/18 2:05:38	NSW2020-6T-POE-IN-V2_HD_Image_1.png	png	Download
HD Image	2026/9/18 2:05:38	NSW2020-6T-POE-IN-V2_HD_Image_2.png	png	Download
HD Image	2026/9/18 2:05:38	NSW2020-6T-POE-IN-V2_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/6/24 16:00:39	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/18 2:05:38	NSW2020-6T-POE-IN-V2_Dimensions_1.png	Download

	NSW2020-6T-POE-IN-V2
Hardware Specification
Ports Type	6×100Mbps network ports (RJ45), including 4 PoE ports
Switching capacity	1.2 Gbps
Packet Buffer	570K bit
Forwarding performance	0.90Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	2K
PoE Standard	IEEE 802.3 at, IEEE 802.3af
PoE Mode	ModeA (1236), ModeB (4578)
Max.PoE Power	Max capacity:65W Max capacity for single port: 30W
Prior Ports	1 to 2
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Cooling Fans	0
Max.Power	75W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	Power: Off: Abnormal power input Green: Normal power input Yellow: The total PoE power is higher than 85% of the total power of the device No PoE Indicator No PoE-Max Indicator LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Dimensions (W×D×H)	16913240mm
Weight	0.65KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
Compliance
NDAA Compliant	Support
