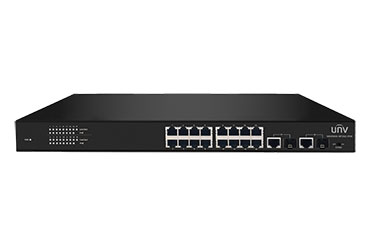

NSW2000-16T2GC-POE
16-Port PoE Switch

    l  16×10/100Mbps Ethernet ports

    l  2×Gigabit combo ports (RJ45 and SFP)

    l  All 100Mbps ports support PoE

    l  PoE complies with IEEE802.3af/at, up to 30W for single port

    l  Up to 250m transmission distance on EXTEND mode

    l  Easy to use, no need to configure

    l  High quality with all metal housing

    Item

    Description

    Ports

    16×10/100Base-TX autosensing Ethernet ports(all support PoE)

    2×Gigabit combo ports (RJ45 and SFP)

    Port attribute

    10/100/1000Mbit/s transfer rate

    Half-duplex, full-duplex and auto-negotiation

    Auto MDI/MDIX

    Standards

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-T

    IEEE 802.3z 1000BASE-X

    ANSI/IEEE 802.3 NWay

    IEEE 802.3x flow control

    IEEE 802.3af PoE

    IEEE 802.3at PoE

    MAC

    4K

    Packet forwarding rate

    6.55Mpps

    Switching capacity

    8.8Gbps

    EXTEND mode

    Disabled: all ports can communicate with each other, and monitoring optimization is disabled.

    Enabled: Downlink ports can only communicate with uplink ports, monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters.

    Status LEDs

    Link/Act (steady green): link is normal

    Link/Act (flashing green): data is being forwarded

    Link/Act (off): no link

    PoE (steady orange): the port is powering a powered device properly

    PoE (off): the port is not connected to any powered device or is not supplying power

    Power (steady green): AC input is normal

    Power (off): AC input is abnormal

    PoE

    802.3at/af

    Max PoE capacity: 250 W

    Consumption

    ≤ 300 W

    AC voltage

    100-240 V

    Operating temperature

    0°C-40°C (32°F-104°F)

    Operating humidity

    10%-85%

    Storage temperature

    -10°C-70°C (14°F-158°F)

    Storage humidity

    10%-90%

    Dimensions (W×D×H)

    440mm×280mm×44mm (17.3"×11"×1.7")
