IPC6253SR-X33

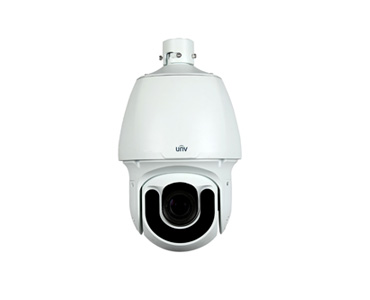

3MP 33x IR Network PTZ Dome Camera

IPC6253SR-X33

3MP 33x IR Network PTZ Dome Camera

Optics

* 33x optical zoom

* Accurate and fast focusing

* Up to 120 dB WDR(Wide Dynamic Range)

* Smart IR, up to200 m (656ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* Customized OSD

Network

* ONVIF Conformance

Structure

* 15° Elevation Angle

* Innovative snow-removing functionality

* More effective heat dissipation system

* Intelligent temperature control technology

* 6 KV surge protection designed for network interface

 IPC6253SR-X33
Camera
Sensor1/2.8", progressive scan, 3.0 megapixel, CMOS
Lens4.5 ~ 148.5 mm (33x optical zoom) , AF automatic focusing and motorized zoom lens
Angle of View (H)75° (wide) ~6.2° (tele)
ShutterAuto/Manual; shutter time: 1/6 s ~ 1/100000 s
MinimumIlluminationColour: 0.003Lux (F1.6,AGC ON)
0 Lux with IR
IrisAuto/Manual; F1.6 ~ F5.3
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>55dB
IR RangeUP to 200m (656ft)
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:3MP (2048×1536):Max.30 fps,180P (1920×1080):Max.60 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps
HLCSupported
BLCSupported
EISSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection, Auto tracking
Exception DetectionAudio detection
Intelligent IdentificationFace detection
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G),API
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range–15° ~ +90° (auto reverse)
Tilt Speed0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets1024
PatrolPreset patrol, route patrol, recorded patrol
Home PositionSupported
Interface
Audio I/OAudio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2 / 1
Serial Port1 RS485
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power24 V AC (Default) ±25%, 24 V DC±25%
Power consumption: 11~47W
Dimensions(ØxH)Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight5.5kg (12.1lb)
Working Environment–40°C ~ +70°C (-40°F ~ 158°F), Humidity :10%~ 95% RH(non-condensing)
Ingress ProtectionIP66
Reset ButtonSupported
