IPC642E-X22IR-IN

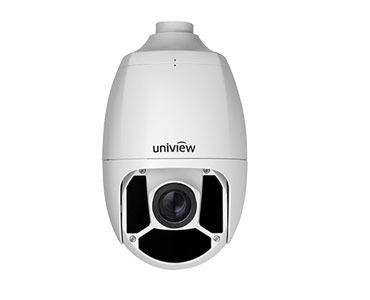

2MP 22x IR Network PTZ Dome Camera

IPC642E-X22IR-IN

2MP 22x IR Network PTZ Dome Camera

Optics

* Accurate and fast focusing

* Smart IR, up to 150 m (492ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

Compression

* H.264 High Profile

* Triple streams

Network

* ONVIF Conformance

Structure

* Fast installation structure design

* Innovative snow-removing functionality

* More effective heat dissipation system

* Intelligent temperature control technology

* 6 KV surge protection designed for network interface

 IPC642E-X22IR-IN
Camera
Sensor1/2.8", 2 Megapixel, progressive scan, CMOS
Lens4.7 ~ 103 mm (22x optical zoom)
Angle of View (H)61.9° (wide) ~ 3.4° (tele)
IrisAuto/Manual; F1.6 ~ F3.2
ShutterAuto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum IlluminationColor: 0.03 lux (F1.6, 50IRE)
B/W: 0.01 lux (F1.6, 50IRE)
S/N>52dB
Day/NightIR-cut filter with auto switch (ICR)
Video
Max. Resolution1920 × 1080
Video CompressionH.264,MJPEG
Frame Rate1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.25 fps
Video StreamingTriple
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
Digital ZoomSupport
Audio
Audio CompressionG.711
Two-way TalkingSupport
Storage
Edge StorageSD, up to 64 GB
Network
ProtocolsL2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible IntegrationONVIF, IMOS,API
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range–15° ~ +90° (auto reverse)
Tilt Speed0.1° ~ 160°/s
Preset speed: 240°/s
Number of Preset255
PatrolUp to 16 patrols, up to 32 presets per patrol
Note: The total number of patrols and patterns is 16.
PatternUp to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Audio I/OAudio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2 / 1
Network1 RJ45 10M/100M Base-TX Ethernet
Serial1 RS485
General
Power Supply24 V AC
Power consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W)
Dimensions (Ø x H)Φ218mm×350mm(Φ8.6” x 13.8”)
Weight5.8kg(12.8lb)
Working Environment–40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 90% RH(non-condensing)
Ingress ProtectionIP66
